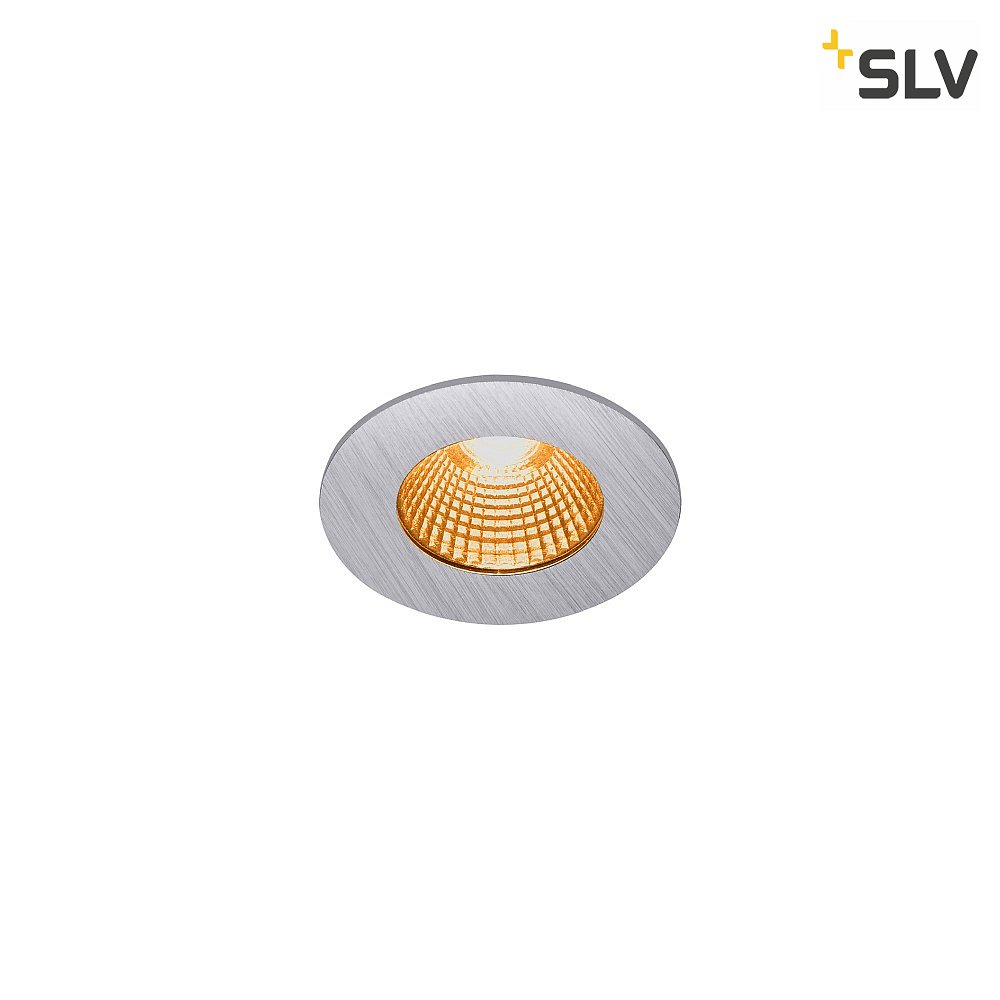

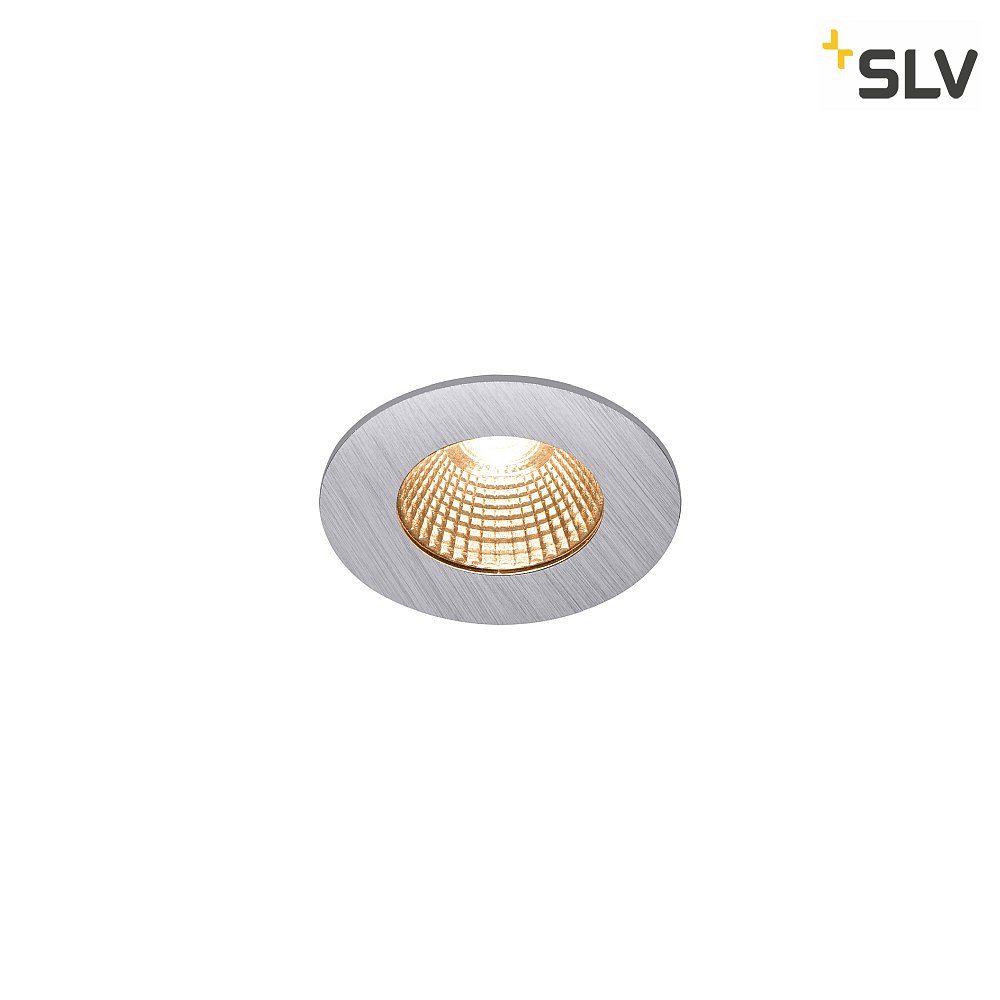

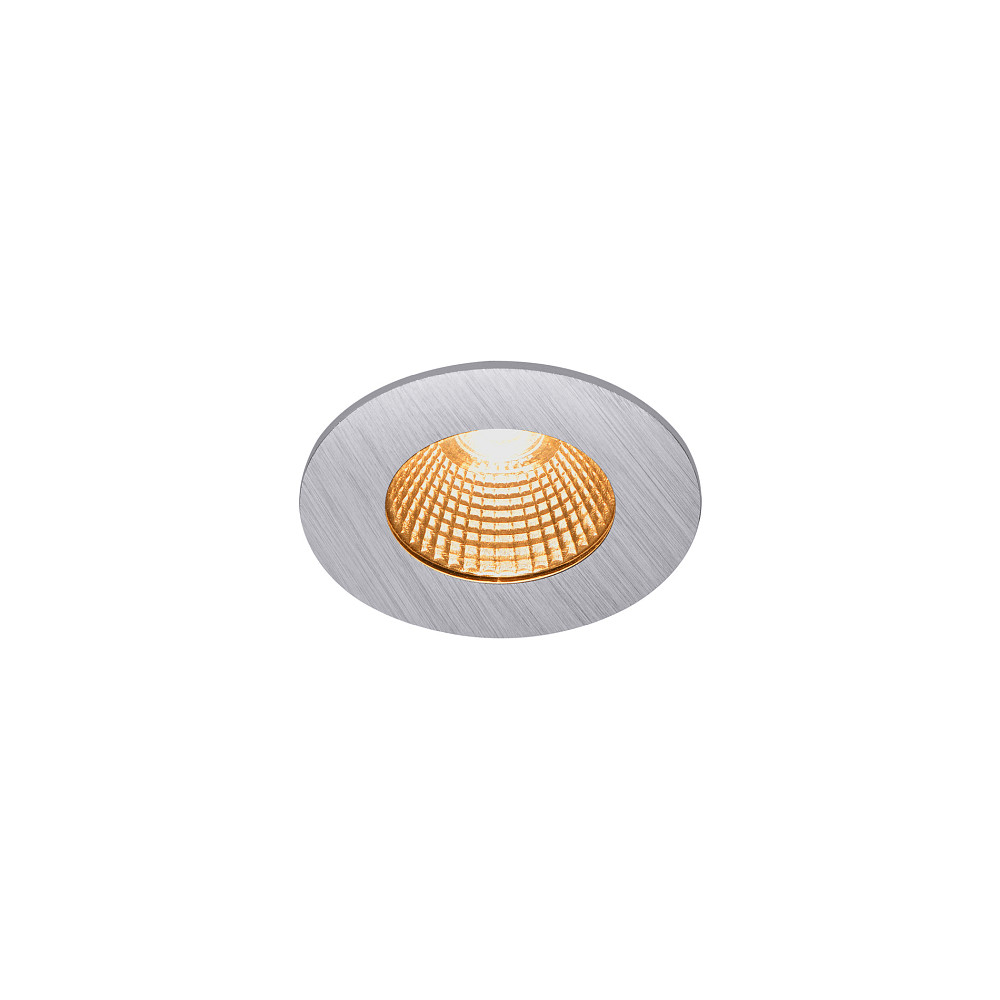

LED Outdoor Recessed Downlight PATTA-I round, IP65 IK02, 7.3W 1800-3000K 440lm, dim to warm, brushed alu

SLV

Print product information sheet▶

question regarding the article

SLV LED Outdoor Recessed Downlight PATTA-I round, IP65 IK02, 7.3W 1800-3000K 440lm, dim to warm, brushed alu

Print product information sheet▶

question regarding the article

Product data sheet

CHF 60,51

excl. Shipping costs / excl. VAT
Recommended retail price: CHF 90.00

You save 32,8 %

Shipping time: 4-5 days

Product no.: 1002100
EAN: 4024163222877
In stock

Alternative product variants:

LED Outdoor Recessed Downlight PATTA-I round, IP65 IK02, 7.3W 1800-3000K 440lm, dim to warm, black LED Outdoor Recessed Downlight PATTA-I round, IP65 IK02, 7.3W 1800-3000K 440lm, dim to warm, brushed alu

Are you a retailer or business customer (commercial/freelancer)? Secure special B2B prices now.

To business registration

The innovative PATTA-I recessed light is suitable for ceiling thicknesses up to 20 mm. Thanks to its IP65 rating, it is suitable for use outdoors and in wet rooms. The light is available in black, white or silver grey, and in a round or square shape. It is fitted with a powerful, dim-to-warm LED, which allows the light colour to be individually adjusted. Thanks to the integrated LED driver, the light can be connected directly to the 230 V mains voltage.

Article number:

1002100

Purchasing quantity:

1 piece

Brand:

SLV

Energy efficiency category:

EPREL No:

916436

Product type:

outdoor recessed luminaire

Energy consumption:

8 kWh/1.000 h

Operating voltage:

220-240 V~

Dimmable:

yes

Dimmability:

dim to warm

Lamp shape:

round

Power frequency:

50/60 Hz

Power consumption:

7,3 W

Emitting angle:

38 °

Bulbs in delivery:

yes

LED can be replaced :

replaceable by a specialist

Bulb type:

LED

Lamps/bulbs:

PlanarLED

Light colour:

amber to warm white

Light emission:

direct

Light flux:

440 lm

Nominal current:

350 mA

Colour temperature:

1800-3000 K

Average life span of a bulb in hours:

30000 h

Colour rendering index:

97 Ra
1A

Colour:

brushed aluminium

Glass color:

clear

Material:

glass
aluminium

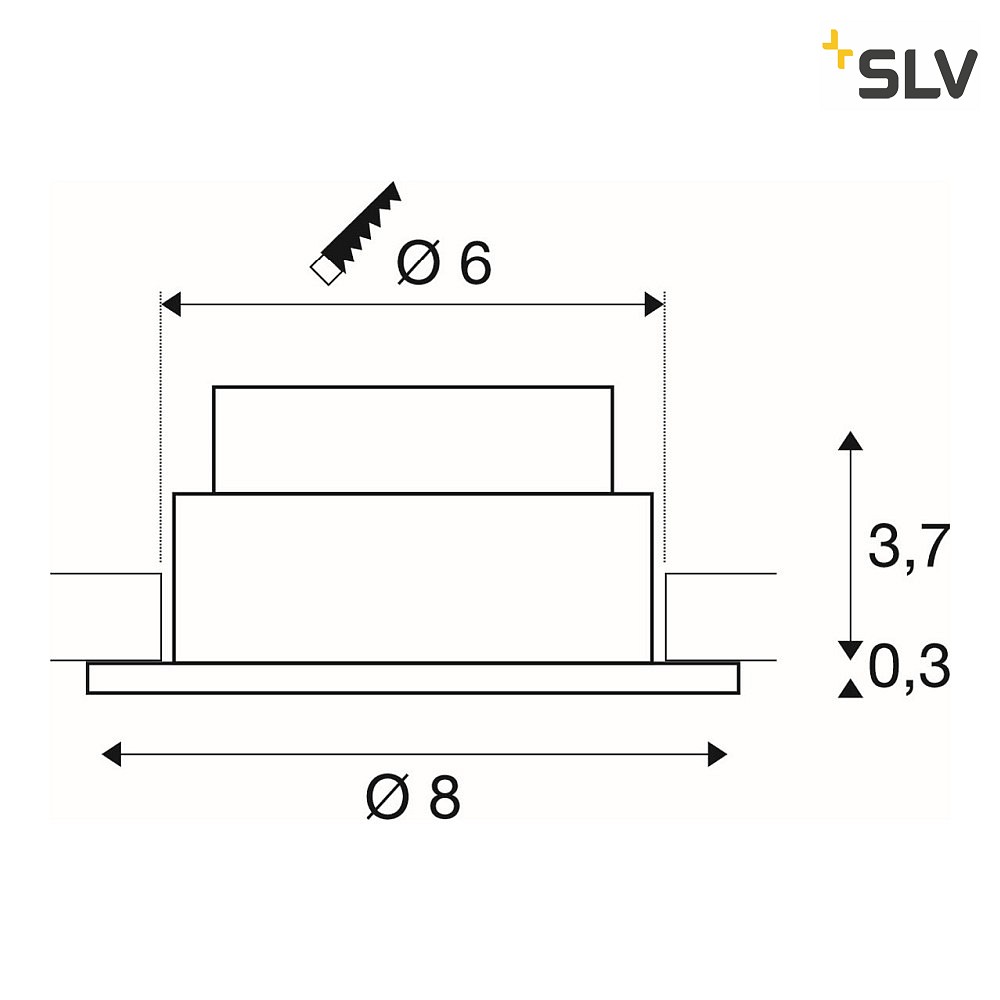

Fitting depth:

10 cm

Fitting opening circle :

6 cm

Dimension:

Ø∕ H: 8∕ 4 cm

Weight:

0,23 kg

Plug type:

clamping connection

Mounting:

recessed mounting

Field of application:

ceiling

Protection class:

IP-protection class:

IP20 / IP65

Application area:

suitable for outdoor use
suitable for indoor use

Additional information:

We will be pleased to send you a light distribution curve for the respective product on request.
clip springs
High IP protection (protective glass)
Protective glass inside.
Material thickness ceiling: 25mm max.
Ready for direct connection to 230V~.
Individual warm lighting moods from 1800 to 3000 Kelvin.
Available in three color versions with round or square cover.
Material thickness of the mounting surface: max. 20 mm

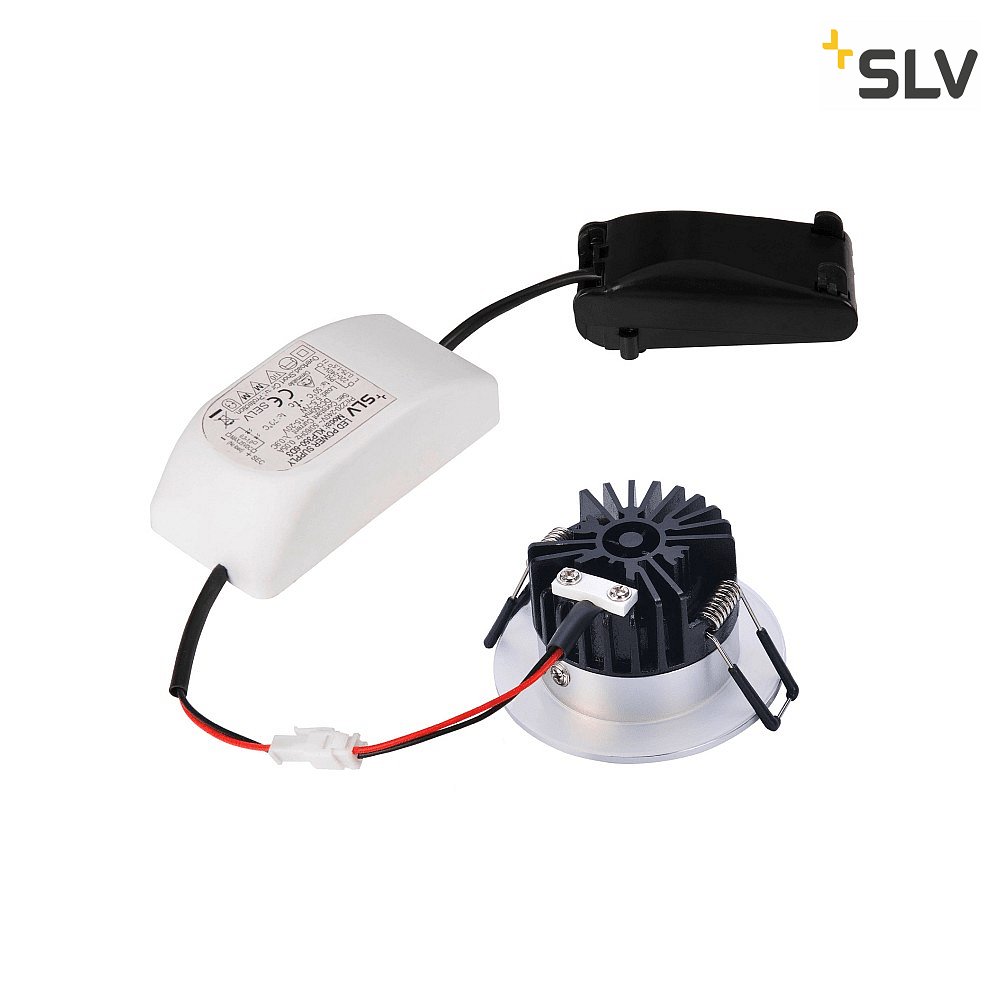

Accessories:

driver incl
plug incl
Kabel incl
dimmer excl

ambient temperature:

-20 ... +45 °C
