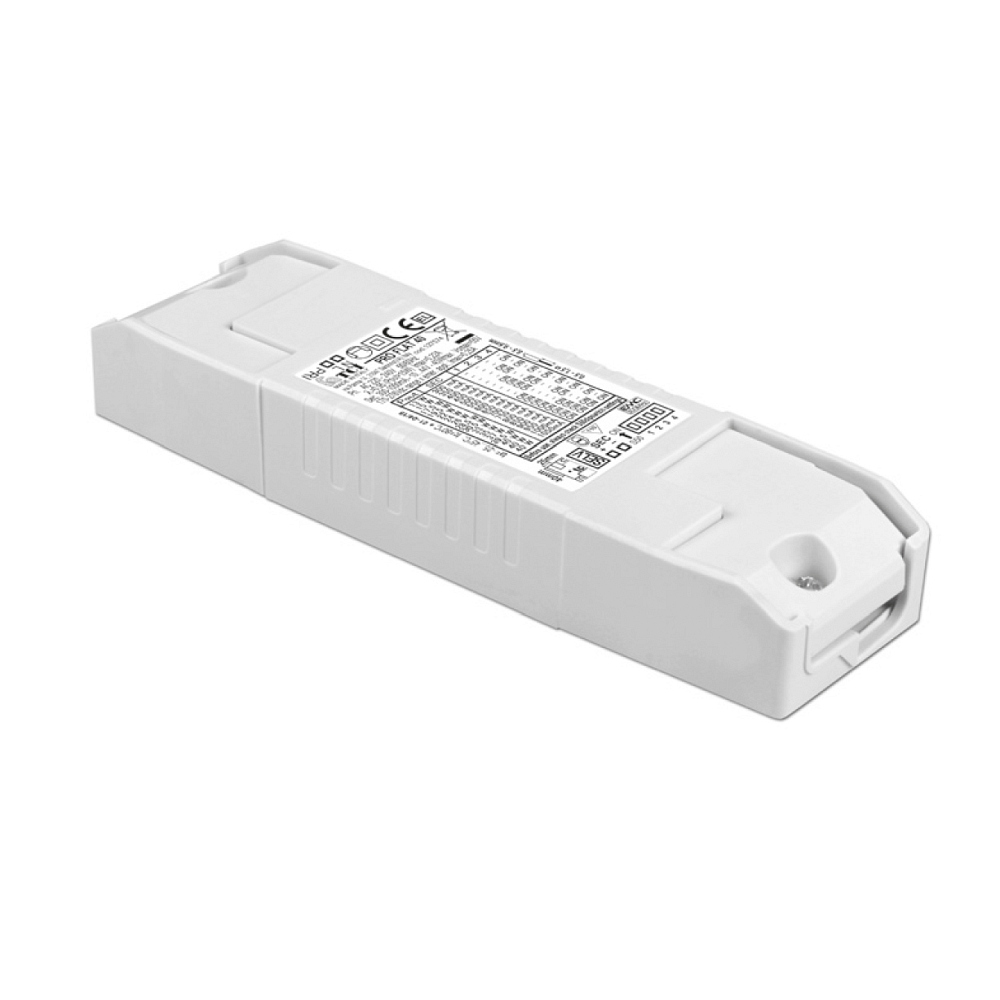

LED driver PRO FLAT 40 with strain relief, current constant, adjustable, switchable, white

High-Quality LED Driver PRO FLAT 40 from TCI

The LED Driver PRO FLAT 40 from TCI is a professional constant current converter specially designed for LED lighting products. With an operating voltage of 220-240V AC and a power consumption of 40W, this driver is ideally suited for loads between 5W and 40W. The slim design measuring 14.65 x 4.35 x 2.2 cm and the white plastic housing allow for easy integration into various installation areas. Thanks to the IP20 basic protection, the device is designed for dry environments.

Simple and Flexible Current Adjustment

The power supply of the LED driver is constant current and can be set in several steps from 300mA to 1050mA via an integrated DIP switch. This flexibility allows precise adjustment to different LED modules and ensures optimal performance and lifespan of the LEDs. Additionally, the current regulation guarantees an accuracy of ±5%, even with temperature fluctuations, providing stable and reliable lighting.

Protection Features for Maximum Safety

The PRO FLAT 40 is equipped with comprehensive protection mechanisms that prevent overload, overvoltage, voltage spikes, overheating, and short circuits. These safety features ensure reliable operation and protect both the driver and the connected LEDs from damage. Furthermore, the driver is EMC tested and features active power factor correction (ACTIVE PFC), which ensures efficient and low-interference power supply.

Easy Installation and Practical Features

Mounting the LED driver is particularly easy thanks to the cutouts in the housing for screw fastening. The installation opening with a diameter of 5 cm is ideal for integration into hollow ceilings and walls. Connection is made via screw terminals, with input and output terminals located on opposite sides, supporting cable cross-sections up to 1.5 mm². Strain relief and DIP switch are included in the delivery, further facilitating installation and adjustment.

Efficient and Flicker-Free LED Supply

Thanks to its design, this LED driver operates flicker-free with a ripple of less than 3%, providing pleasant light without disturbing flicker effects. It is suitable for both alternating current (AC) and direct current (DC) and offers an input voltage tolerance of 198-264V AC and 170-280V DC. With a maximum ambient temperature of +45 °C and a temperature limit (Tc) of 90 °C, reliable operation is ensured even under demanding conditions.
