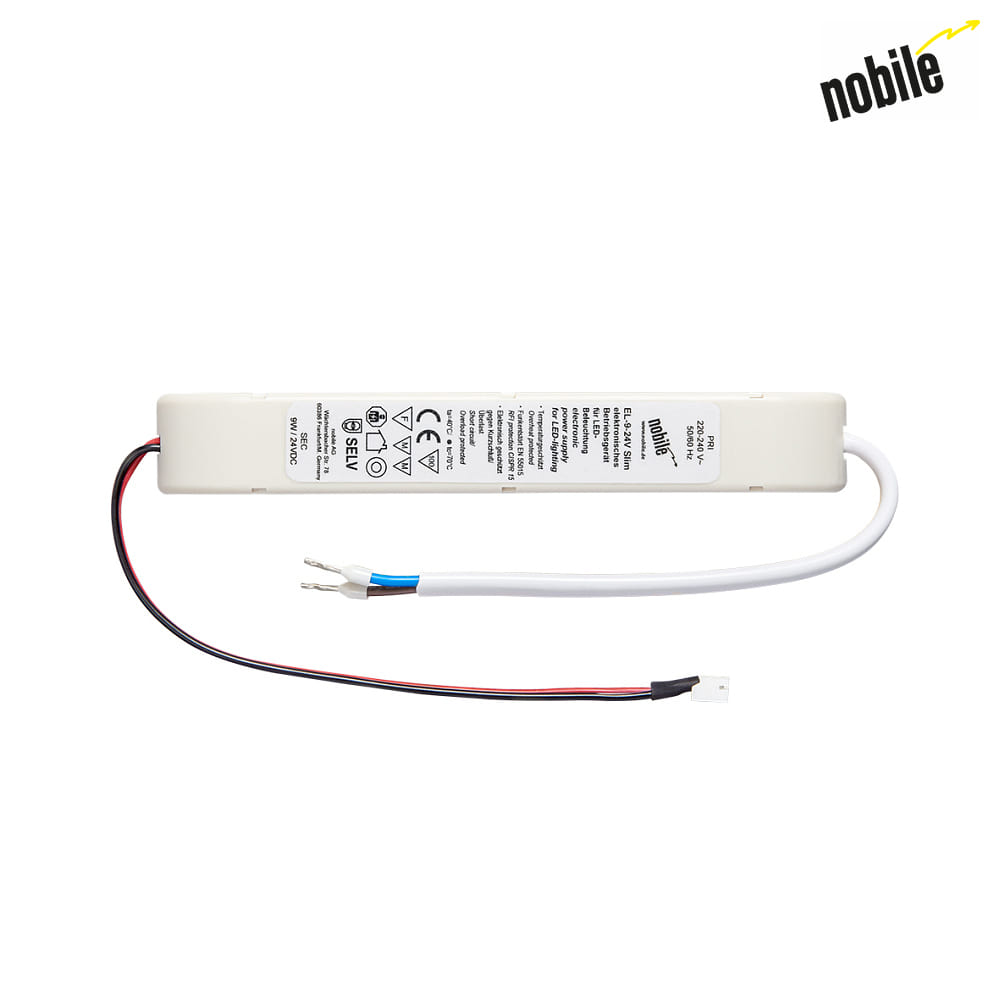

LED driver EL-9-24V Slim, 0-9W, white, non dimmable

LED Operating Device EL-9-24V Slim, 0-9W, white, non-dimmable

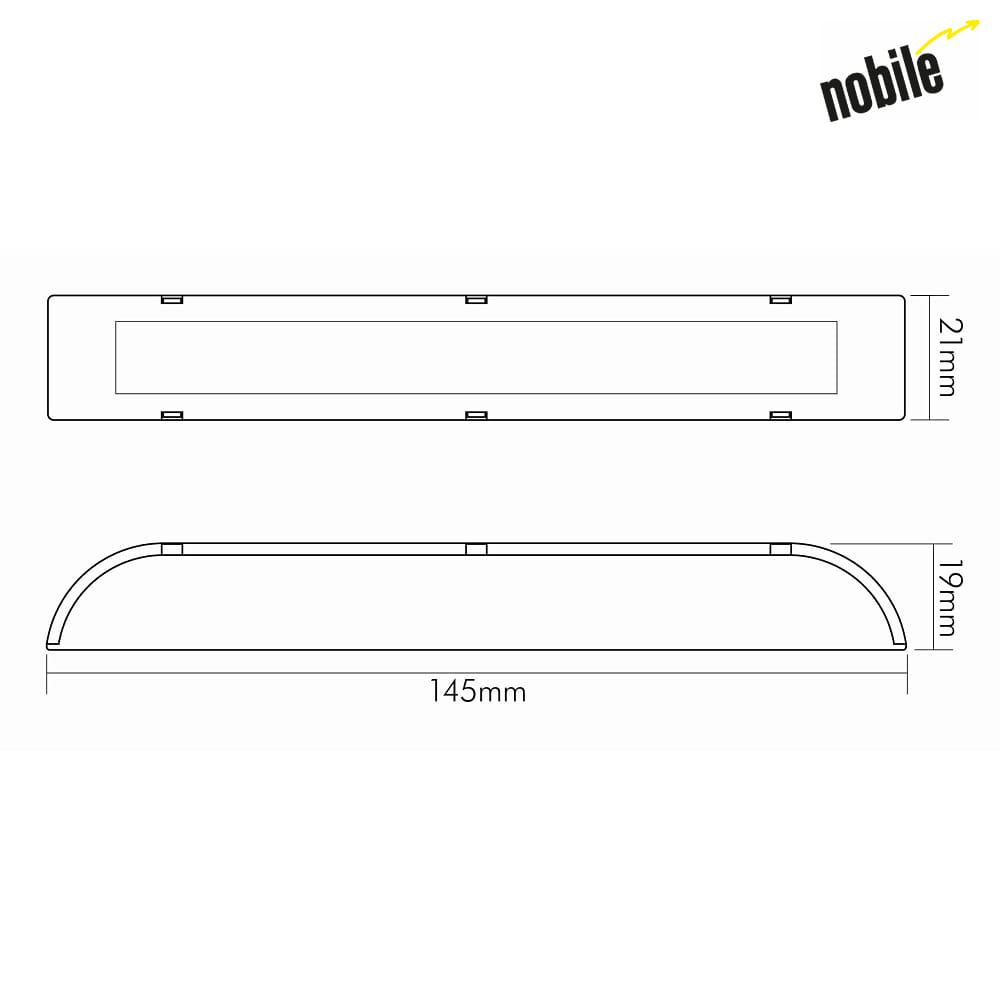

The LED operating device EL-9-24V Slim is specially designed for indoor use and is perfect for installation in false ceilings. With dimensions of 14.5 x 2.1 x 1.9 cm and a weight of only 0.06 kg, it is particularly compact and lightweight.

Technical Details

The operating device has a power consumption of 0-9W and is suitable for operating LED light sources. It features reinforced insulation, temperature protection up to 100°C, and is short-circuit proof. Additionally, overload and temperature protection are included.

Safety and Installation

The LED operating device EL-9-24V Slim features a safety transformer and should only be installed by electrical professionals (according to VDE 0100). The input voltage is 220-240V AC, the output voltage is 24V DC. The power factor at 230V AC full load is over 0.9.

Additional Information

The IP protection rating of the operating device is IP20. It is suitable for installation in furniture and can be operated statically. The ambient temperature should be between -20 and 40°C. The connection type on the primary side is done through a 15 cm long connection cable with open wire ends.

Brand nobilé

The LED operating device EL-9-24V Slim comes from the nobilé brand and impresses with its high-quality construction and reliability. With its compact design and various technical features, it is the ideal choice for operating LED light sources indoors.
