LED driver DALI-2,DIP-SWITCH DALI controllable, current constant

LED Recessed Light Ballast

The LED Recessed Light Ballast from Rutec Projekt is an IP20 constant current converter suitable for indoor applications. With an input voltage range of 180-264V AC / 180-264V DC, it is suitable for both AC and DC power. The output voltage is 3-42V DC and the converter has built-in active power factor correction (Active PFC).

Technical Details

The output current of the LED Recessed Light Ballast is adjustable from 600 mA to 1,100 mA via the dip switch. With an output power of up to 42 watts, depending on the output current, this ballast provides a reliable power supply for your LED recessed lights. Certifications such as CE, RoHS, REACH, and MM ensure compliance with quality and environmental standards.

IP Protection Rating and Size

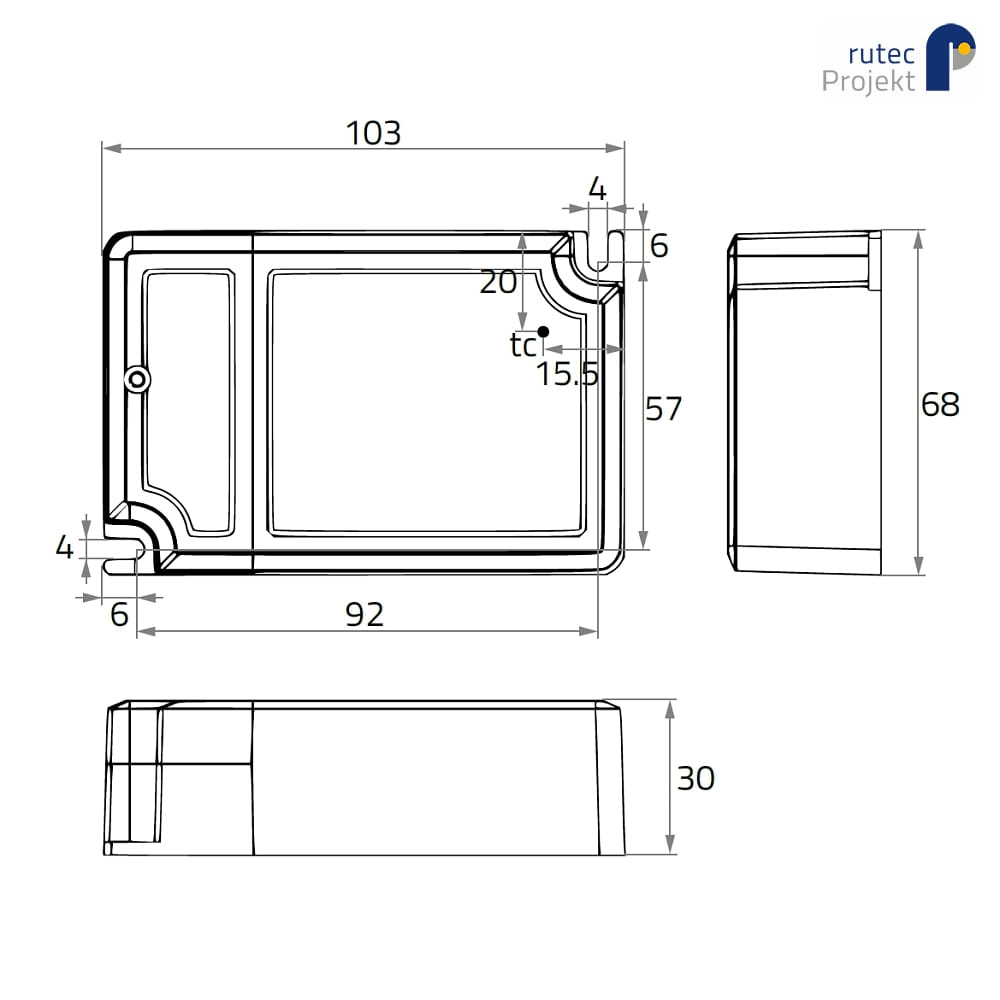

The LED driver has an IP20 protection rating, protecting it from dust and touch. With a size of 10.3 x 6.8 x 3 cm, it easily fits into your installation. The operating temperature range of -20 to +45°C ensures reliable performance in various environments.

Accessories and Connection

The LED Recessed Light Ballast comes with accessories such as controllers and dimmers to facilitate the control and dimming of your lighting. The power connection is made through a spring pressure clamp that allows for a quick and secure connection.

Application and Features

Thanks to DALI / DALI-2 dimmable technology, this ballast is ideal for indoor use. Protection features such as short circuit and over temperature protection, flicker-free operation, and SELV ensure a safe and efficient lighting solution. For more details, please refer to the datasheet or manual.
