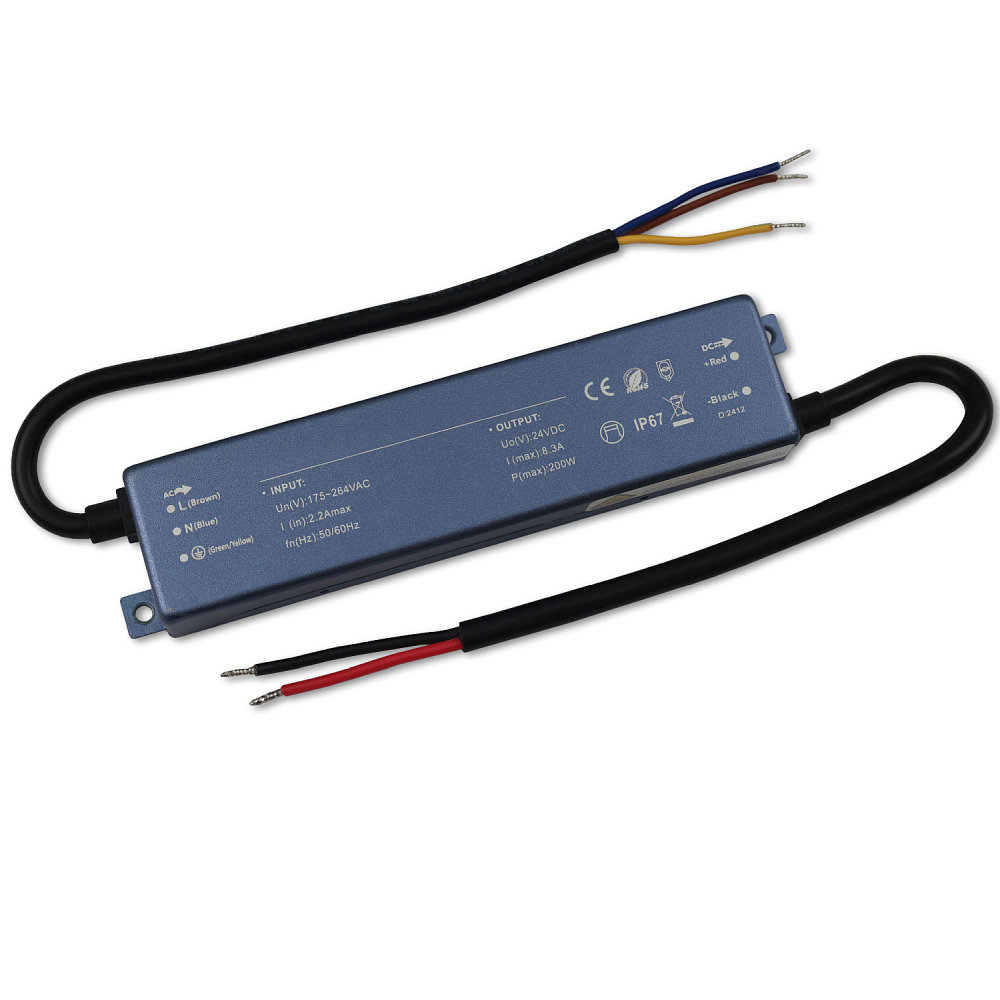

LED driver 24V DC / 200W ON-OFF ULTRAFLAT flat, with open cable, switchable, dark grey

High-Quality LED Transformer with IP67 Protection Rating

The LED transformer from ISOLED impresses with its robust construction and IP67 protection rating, which protects it against dust, strong jet water, and even temporary submersion in water. This power supply thus provides reliable power for your LED systems. The ultra-flat design, with a height of only about 2 cm, also allows for easy integration even in tight installation spaces. The housing is made of a combination of plastic and metal, ensuring stability and durability.

Technical Data and Performance Features

The driver operates with an input voltage of 175 to 264 volts AC and delivers a stable output voltage of 24 volts DC (SELV), which is especially safe for LED applications. With a maximum power of 200 watts and an output current of up to 8.3 amperes, the transformer is suitable for high-power LED lighting. The frequency is 50/60 Hz, and the maximum input current is 2.2 amperes. Open cable ends on both sides (3-pin on the primary side and 2-pin on the secondary side) allow for flexible connection options.

Protection Mechanisms and Service Life

This LED driver is equipped with important protection functions, including short-circuit resistance and overheating protection. These safety features ensure stable operation and protect both the device and the connected LEDs from damage. The average lamp life is an impressive 39,000 hours, indicating long and reliable use. Additionally, various lifetime values (L70, L80, L90 with different B10 and B50 values) are documented, underlining the high quality of the product.

Practical Features and Accessories

The power supply comes with an 18.5 cm long connection cable with a cable diameter of 0.75 mm, which is included in the delivery. The compact size of 17.2 x 3.83 x 2.06 cm and the low weight of 266 grams make handling and installation particularly easy. Protection class 2 guarantees safe use without a protective conductor. The dark gray design blends unobtrusively into various environments. In addition, the LED driver is ENEC certified, confirming tested quality and safety.

Versatile Use and Easy Integration

With its switchable function and ultra-flat design, the LED transformer from ISOLED is ideal for a wide range of LED applications. Whether in complex lighting systems or special installation situations, the device offers stable and safe power supply. The combination of high protection rating, powerful technical data, and easy handling makes this LED driver an optimal choice for professional users and LED enthusiasts.
