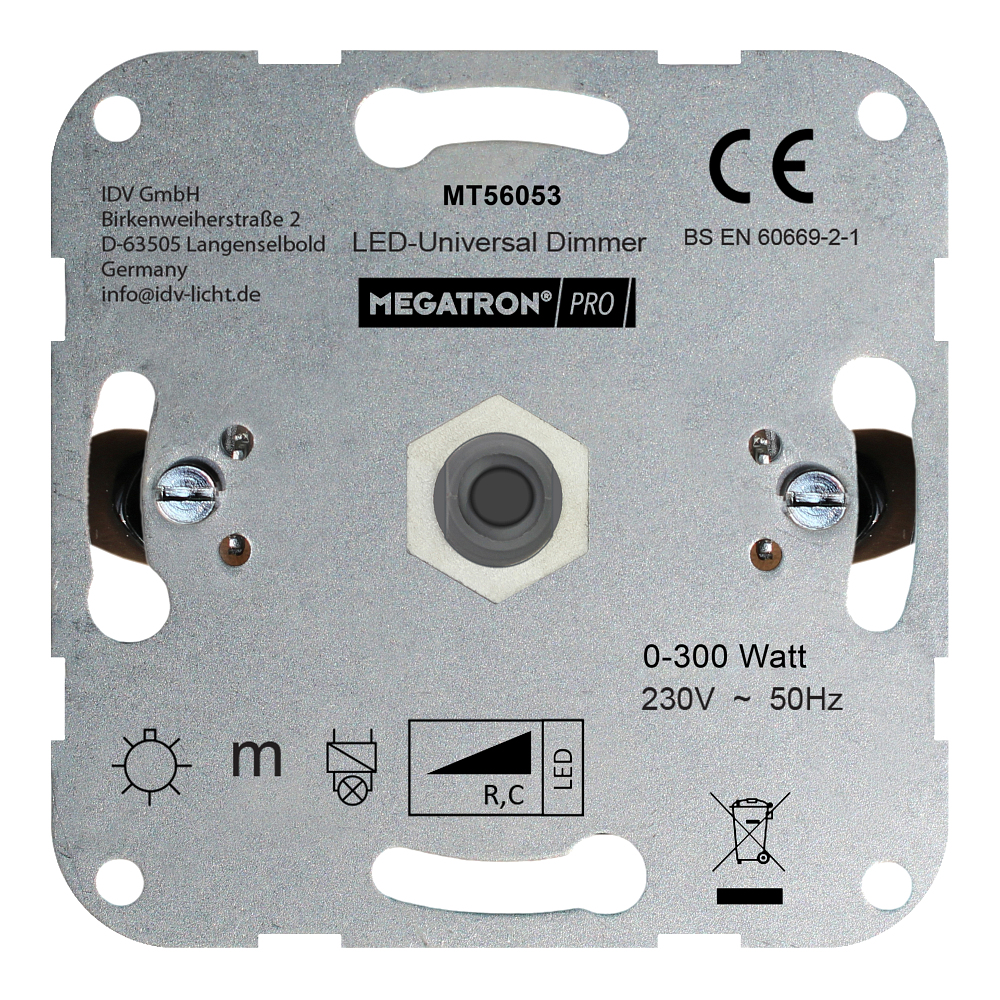

LED dimmer without trim, silver

Versatile LED Universal Dimmer for Optimal Light Control

The LED Universal Dimmer from MEGATRON PRO offers a flexible solution for stepless regulation of light sources with a power of up to 300W. With an operating voltage of 220 to 250 volts and a mains frequency of 50 Hz, the dimmer is compatible with most standard power grids. The dimmer is specially designed for use with LED lamps but also supports other load types thanks to its universal load function. This allows various types of lamps to be dimmed easily and conveniently.

Simple Design with User-Friendly Operation

Control is carried out via a rotary and push button, enabling intuitive and precise brightness adjustment. The dimmer is designed as a series dimmer, meaning multiple devices can be connected in series to centrally control larger lighting areas. Additionally, the device features a light value memory that stores the last set brightness and automatically restores it when switched on again. This ensures comfortable and energy-efficient light management.

Technical Details and High-Quality Craftsmanship

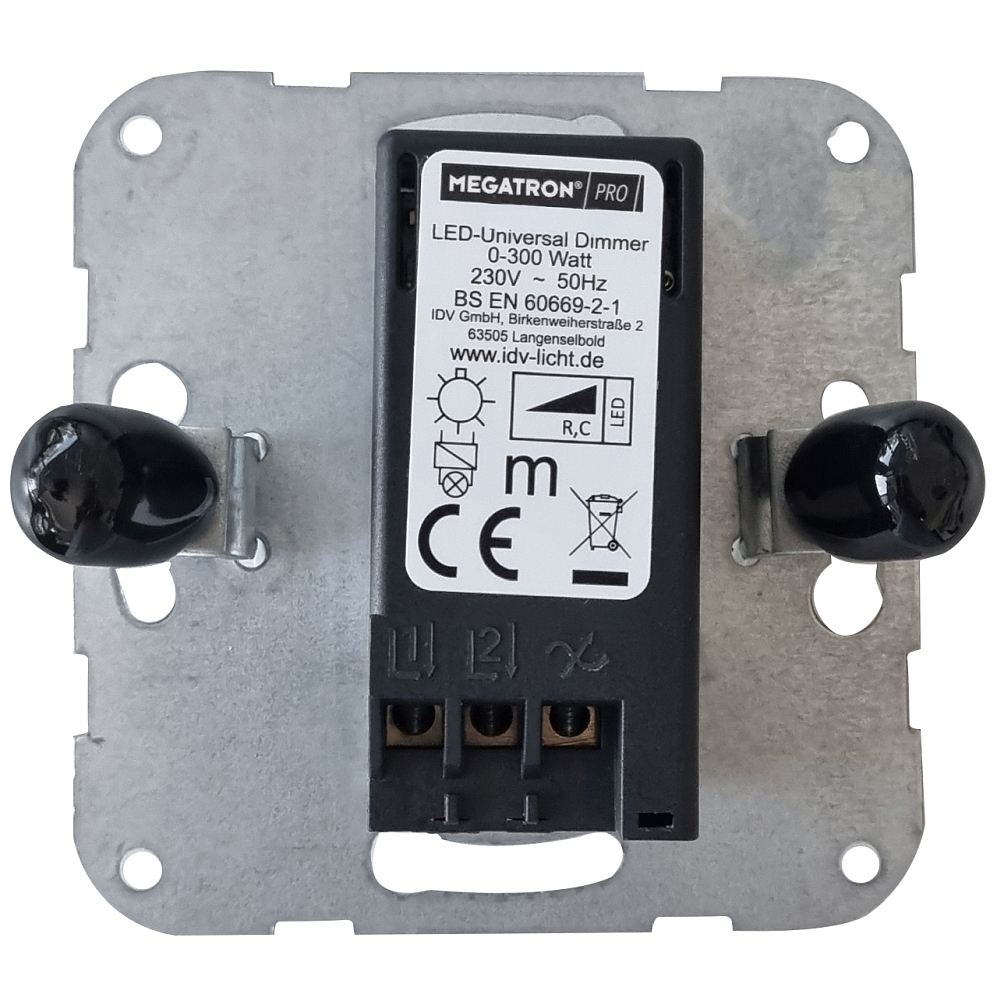

The compact device measures 5.8 cm in width, 6.4 cm in height, and 4.6 cm in depth, with an installation box depth of 4.6 cm. The IP20 protection rating provides the necessary protection against solid foreign objects greater than 12 mm. Installation is done via claw or screw fastening as well as a plug terminal for the mains connection, ensuring easy and secure installation. The dimmer weighs only 50 grams and is finished in an elegant silver tone that discreetly blends into any environment.

Flexible Dimming Methods for Individual Lighting Needs

The dimmer supports both leading edge and trailing edge dimming methods. These two processes ensure smooth and flicker-free brightness regulation for different types of lamps. The minimum brightness can be adjusted individually to ensure a pleasant light level and to avoid overloading the connected LEDs. This allows optimal adaptation to various lighting conditions and personal preferences.

Complete Accessories and Easy Integration

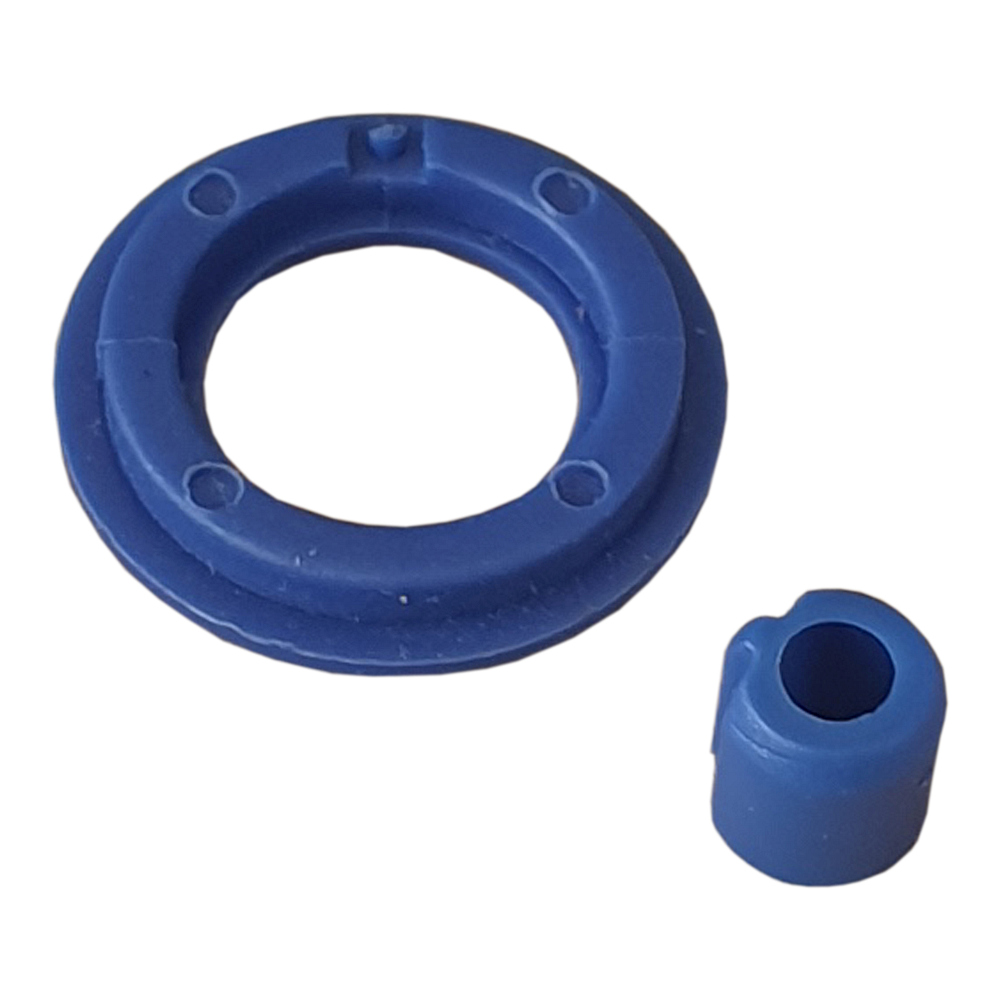

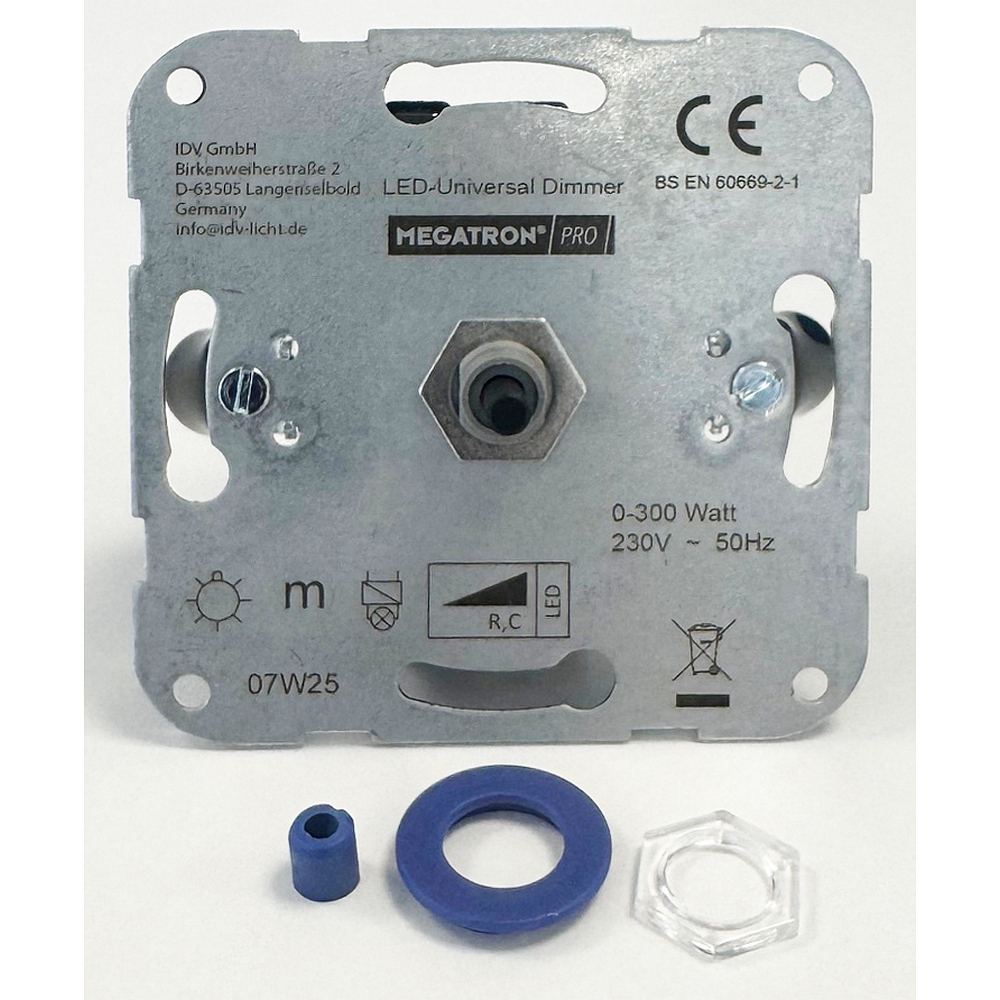

The dimmer base element comes with an adapter plate that facilitates mounting and ensures a secure connection. A matching cover is not included but can be purchased separately. The dimmer is ideal for installation in standard flush-mounted boxes and, thanks to the 1.5 mm² conductor cross-section, is suitable for most common electrical cables. With this product, you receive a reliable and durable solution for individual light control that is both functional and user-friendly.
