KapegoLED recessed ceiling ring Orionis, square, current constant, 17-19V DC, 350mA, 6.5W, warm white, matt white

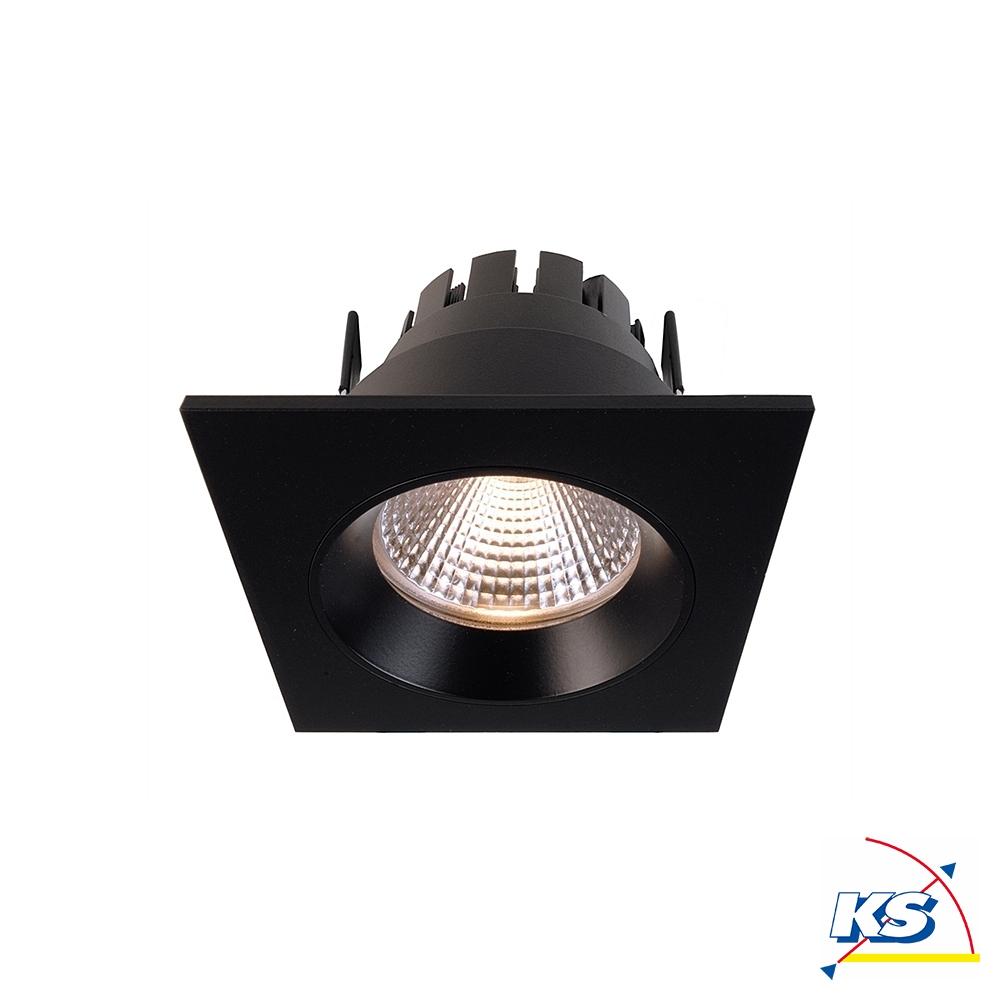

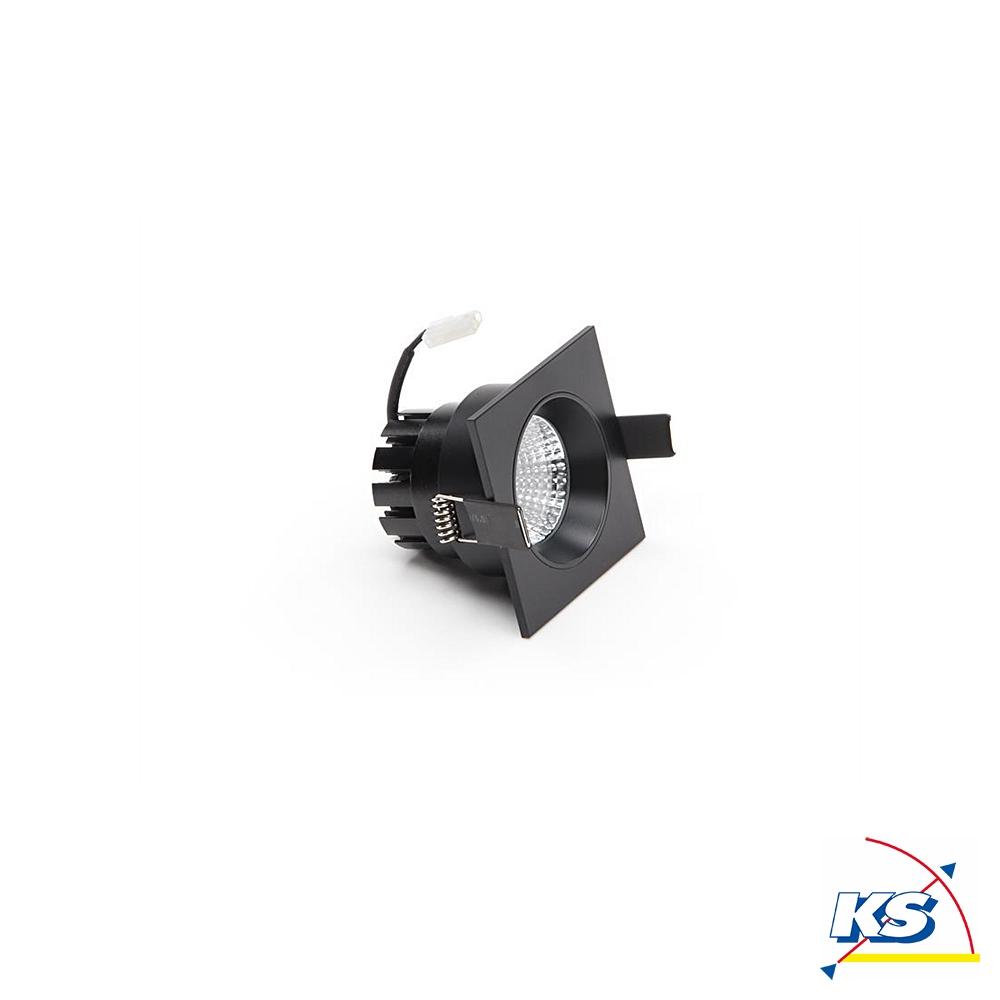

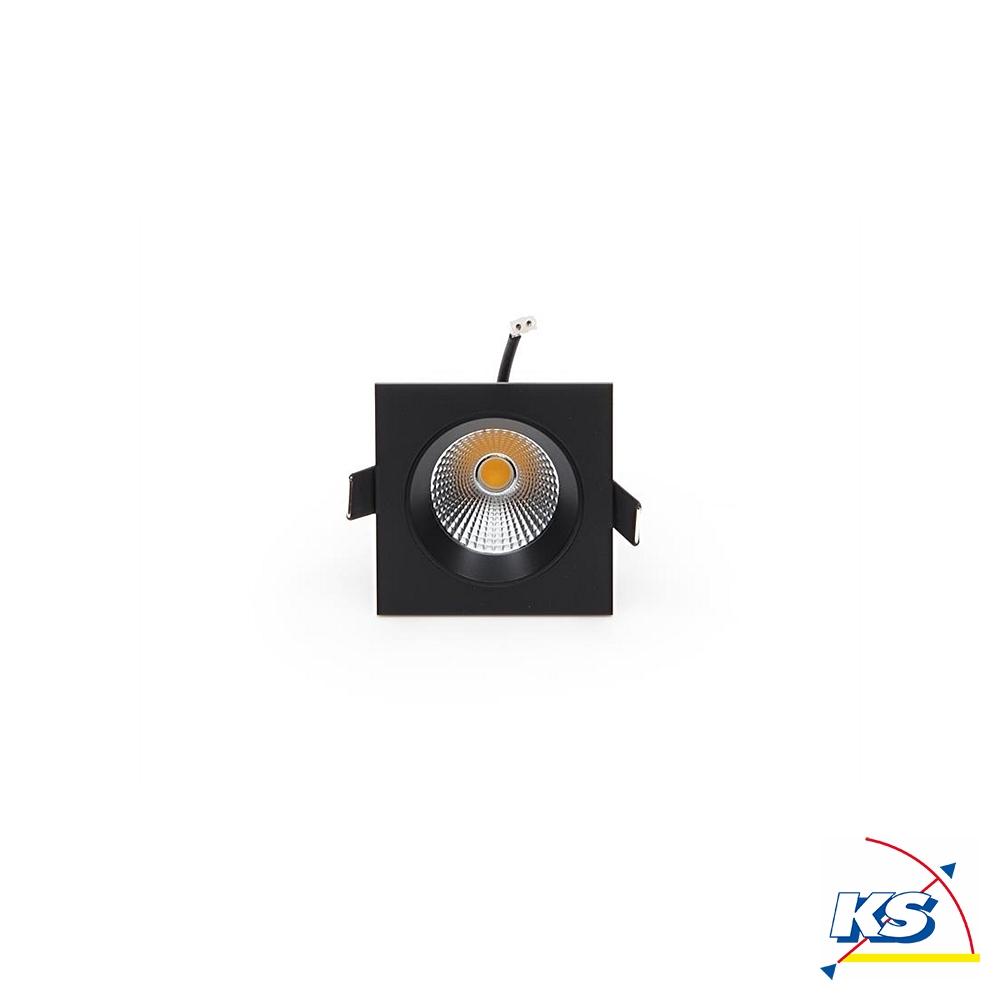

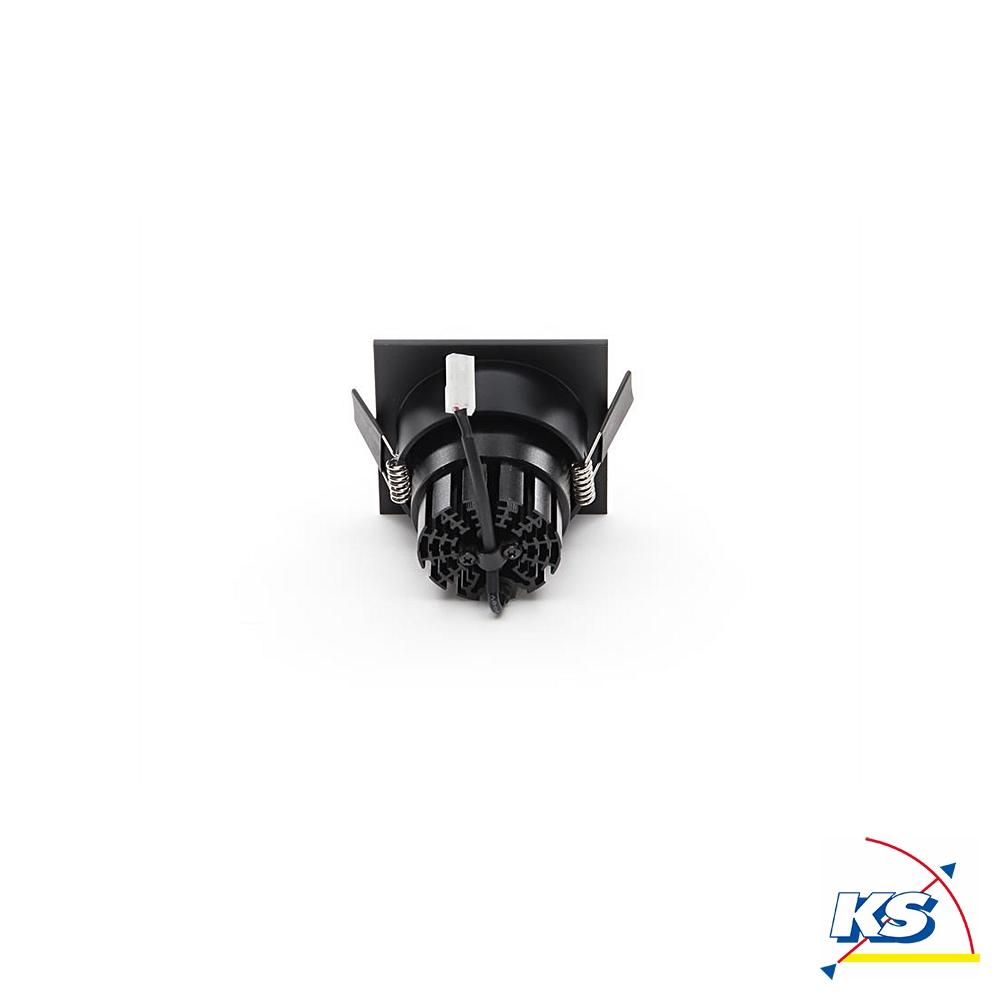

KapegoLED Ceiling Recessed Luminaire Orionis

The KapegoLED Ceiling Recessed Luminaire Orionis is a square, constant current LED light with an operating voltage of 17-19V DC and a power consumption of 350mA. With a power intake of 6.5W and a warm white light color, this ceiling recessed luminaire is ideal for pleasant lighting in various rooms.

Technical Details

The size of the recessed luminaire is L/W/H: 7.8/7.8/7.2 cm and it has a beam angle of 30°. It is dimmable and has an energy consumption of 7kWh/1,000 h. The color rendering index is 80Ra and the luminous intensity is 1489cd with a luminous flux of 645lm. The lifespan is 30,000 hours and it has a protection class of 3.

Material and Connection Options

The KapegoLED Ceiling Recessed Luminaire Orionis is made of die-cast aluminum and weighs only 0.2kg. The installation opening has a diameter of 6.8cm and comes with an LED module pre-installed. It has a mean lamp life of 30,000 hours and can be connected via exposed wires.

Additional Information

This recessed luminaire has a symmetrical light distribution and can be dimmed using an optional power supply. The start-up time at 60% luminous flux is only 0.1s and the ignition time is also 0.1s. It has an energy efficiency class of G and a color temperature of 2700K. With a color value of 584 nm and a color consistency of 0.4612/0.4106, this recessed luminaire offers a high-quality lighting solution.

Scope of Delivery and Item Number

The item number of the KapegoLED Ceiling Recessed Luminaire Orionis is D-565241 and it comes with the light source included. With a switching cycles of 15,000 and the option for a fixed cutting possibility, this recessed luminaire offers a practical and durable lighting solution.
