KapegoLED inlay grid luminaire LED PANEL cCT, 24V DC, 48W, 120°, 3000-5500K, white

Modern LED Panel with Variable Color Temperature

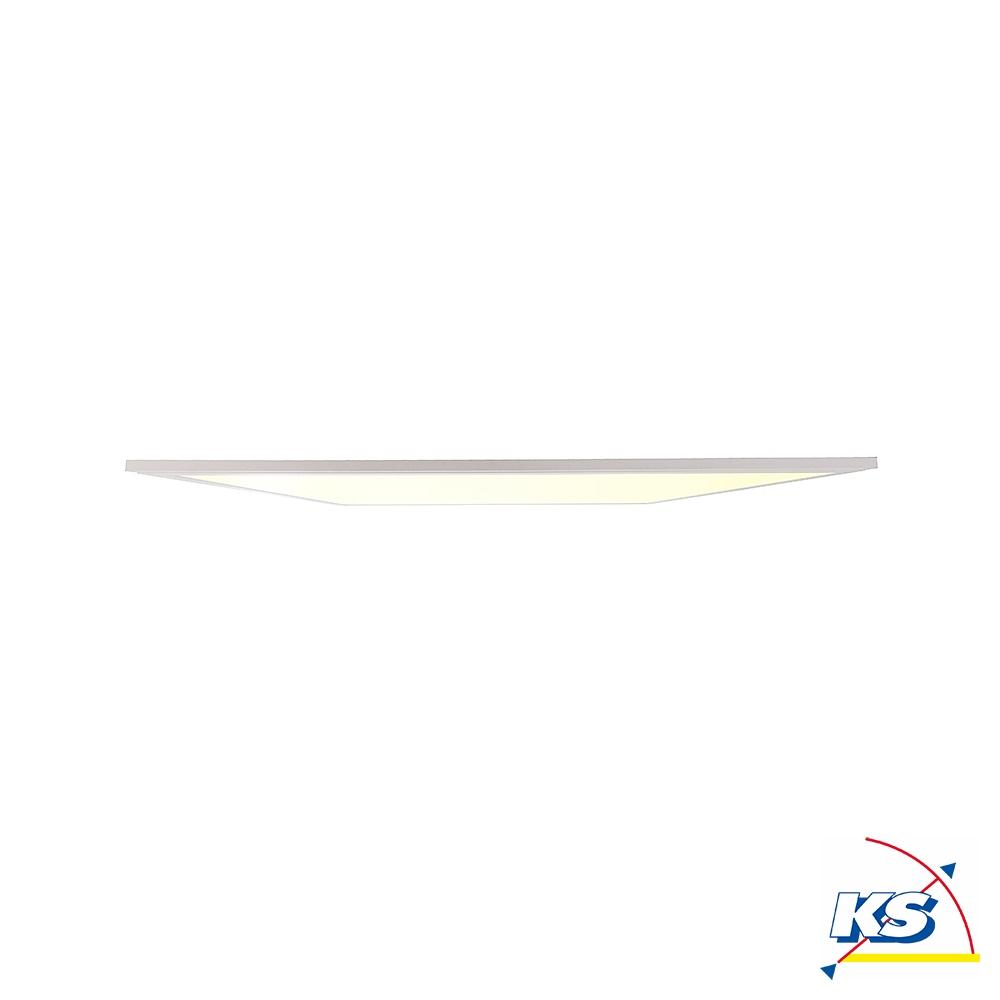

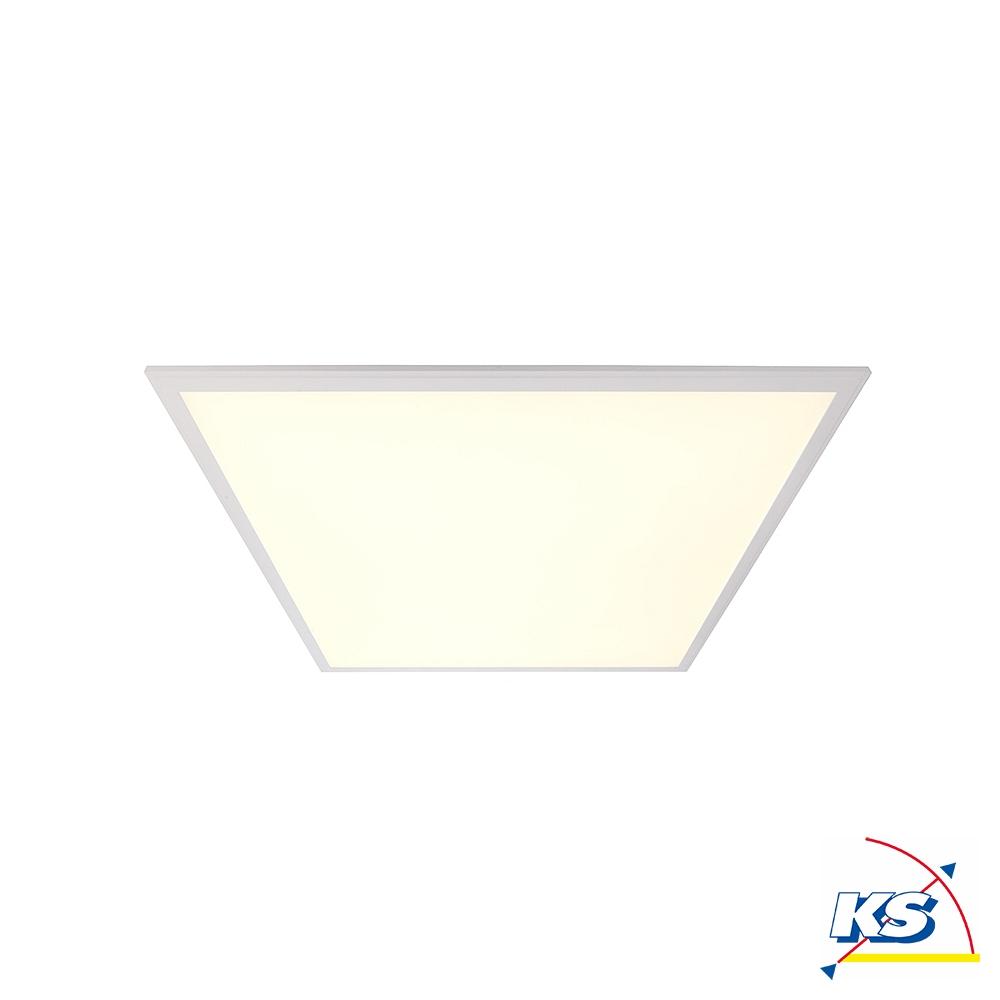

The HCL LED panel from Deko-Light impresses with its innovative technology and flexible lighting design. With an adjustable color temperature from 3000 to 5500 Kelvin, it allows seamless adjustment from warm white to cool white light. This feature adapts perfectly to different needs and provides pleasant lighting in various situations. The panel measures 62 x 62 cm and has a slim design of only 1 cm, making it particularly discreet and harmoniously fitting into any environment.

Efficient Light Output and Energy Savings

With a power consumption of only 49.5 watts, the panel produces a luminous flux of 3551 lumens at a beam angle of 120 degrees. This guarantees even and bright illumination of large areas. The luminous efficacy of 71.73 lumens per watt makes the product particularly energy-efficient and environmentally friendly. Additionally, the LED panel offers a lifespan of up to 30,000 hours, significantly reducing maintenance costs and replacement intervals.

Human Centric Lighting (HCL) for Increased Well-Being

The LED panel supports the Human Centric Lighting concept, which dynamically adjusts light color and brightness according to the human circadian rhythm. This enhances well-being and supports natural light behavior. Control is via a 24V DC constant voltage operation, with the appropriate power supply device needing to be ordered separately. Control can be carried out individually using an optional RF remote control set or automated via a 24V HCL controller.

Versatile Applications and Accessories

The panel is ideal for various applications such as offices, event rooms, healthcare facilities, or educational institutions. Optional recessed and surface mounting frames are available separately for installation. The slim design in traffic white aluminum and plastic housing allows elegant integration into different room concepts. Accessories such as dimmers, drivers, or remote controls are not included but offer versatile options for individual adjustment of the lighting atmosphere.

Technical Features and Protection Class

The LED panel has protection class 3 and is designed for operating temperatures from -5 to +40 degrees Celsius. The color rendering index is over 80 Ra, ensuring natural color reproduction. With a weight of 3.8 kg and an open cable end for mains connection, installation is straightforward. The quick ignition and start-up times of 0.2 and 1 second respectively provide immediate and reliable light output every time it is switched on.
