fully siliconised LED strip VARDAFLEX PLATIN WALLWASHER Q 3D 12° S, SU-EK symmetrical, assembled, with lens optics black

Rutec Projekt



Are you a retailer or business customer (commercial/freelancer)? Secure special B2B prices now.

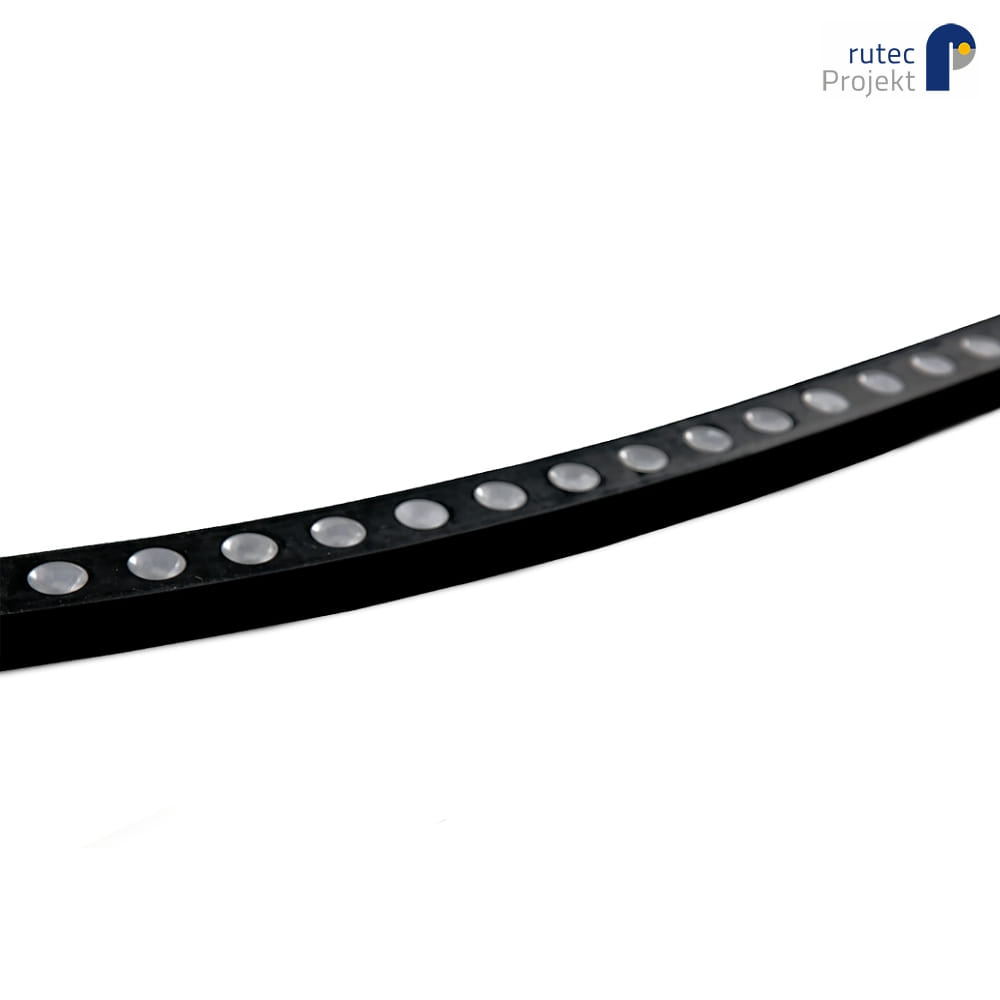

Outdoor LED Strip VARDAflex PLATIN WALLWASHER Q 3D 12° S

The Outdoor LED Strip VARDAflex PLATIN WALLWASHER Q 3D 12° S from Rutec Projekt is a special LED strip designed for uniform lighting of facades, walls, walls, and other large areas indoors and outdoors. With an energy efficiency class of F and a light output of 85.42lm/W, this LED strip offers an efficient lighting solution.

Technical Data

The LED strip has a color temperature of 3000K, a color rendering index of >80Ra, and a beam angle of 12°. It is IP67 certified, making it dustproof and protected against temporary submersion. The average lamp life is 36000 hours, and the LED strip can be operated in a temperature range of -40 to +55°C.

Flexibility and Adaptability

The VARDAflex PLATIN WALLWASHER Q 3D 12° S is horizontally and vertically bendable, with a minimum bending diameter of 40 cm vertically and 80 cm horizontally. It is available in various versions, with different beam angles, light colors, and in black or white.

Special Features

The LED strip features a flex circuit board that is encapsulated in special silicone, making it UV, chlorine, saltwater, solvent, and heat resistant. It is custom-made according to your preferences and is available as a finished product, with a price per running meter.

Accessories and Installation

Various accessories are included, such as cover, connection set, end piece, and connection cable with water stop. The operating device is not included, but the LED strip can be dimmed with appropriate accessories, depending on the operating device. Installation is easy, and the LED strip will provide safe and reliable lighting.

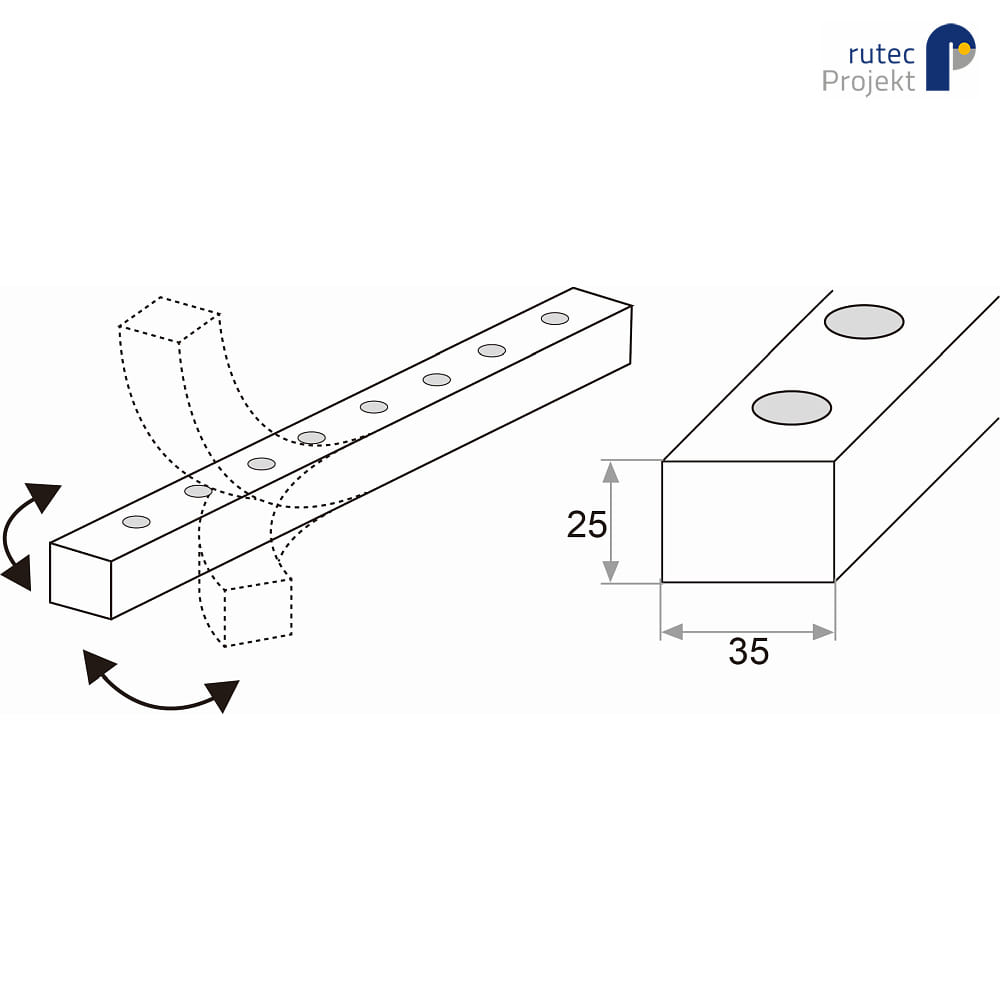

Dimension:
L∕ B∕ H: 100∕ 3,5∕ 2,5 cm
individual sections-L: 25 cm
min. bending diameter-Ø: 40 cm
min. bending diameter-Ø: 80 cm
LED distance-L: 3,57 cm
Material:
silicone
Product type:
fully siliconised LED strip
Operating voltage:
24 V=
Dimmable:
yes
Dimmability:
with optional features only,depending on the control gear
Power consumption per meter:
24
Emitting angle:
12 °
LED per meter:
28
Luminous flux per metre:
2050
Light yield:
85,42 lm/W
Maximum lamp wattage:
120
Colour temperature:
3000 K
Average life span of a bulb in hours:
36000 h
Colour rendering index:
>80 Ra
1B
Maximum operable length:
500
Protection class:
3
IP-protection class:
IP67
Additional information:
bipolar
Accessories:
cover - included in delivery
connection set - included in delivery
end piece - included in delivery
control gear - not included in delivery
adhesive back - not included in delivery
ambient temperature:
-40 … +55 °C
Energy efficiency category:
F
Article number:
RUP-SPGF355
Purchasing quantity:
1 piece
Brand:
Rutec Projekt
Manufacturer:
Rutec Projekt
Manufacturer information
rutec Projekt GmbH, Carl-Zeiss-Str. 15, 28857, Syke, Germany, info@rutecprojekt.de
