floor recessed luminaire DASAR® L square, swivelling, DALI controllable, passable IP65 / IP67, stainless steel dimmable

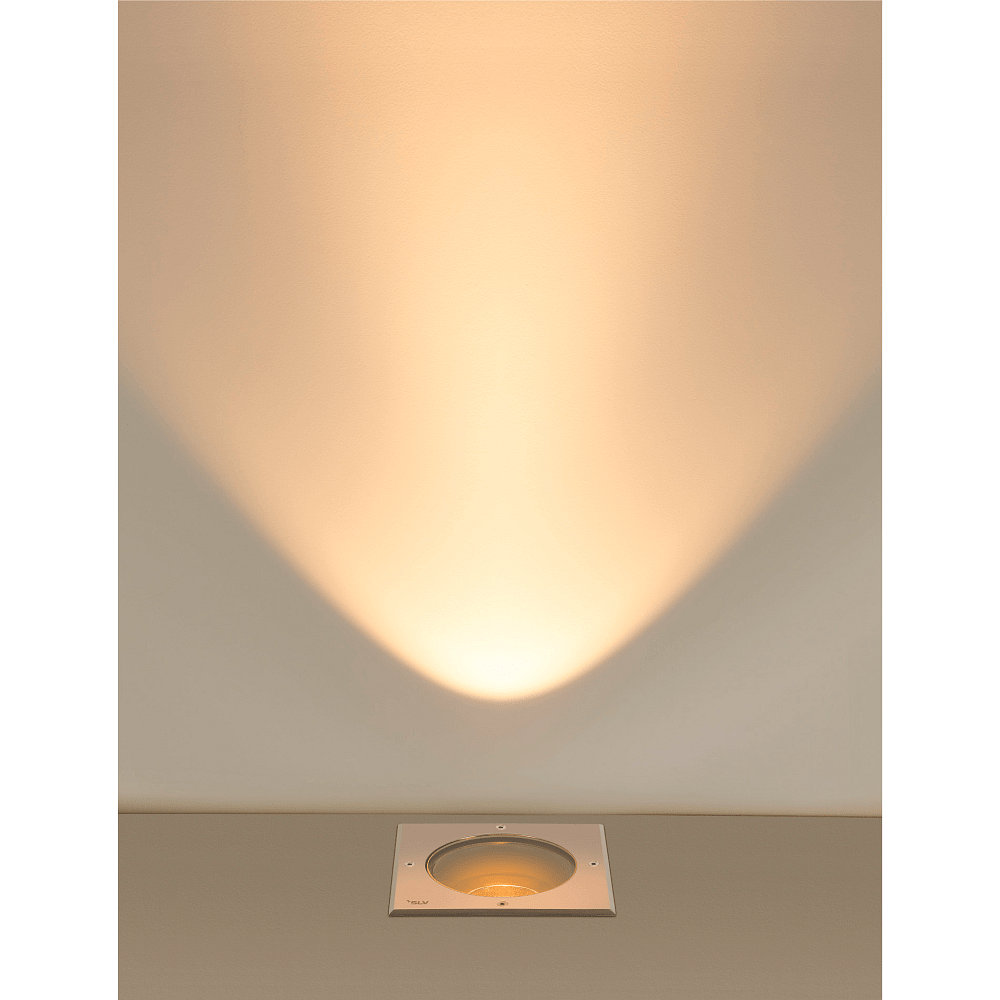

High-Quality LED Recessed Floor Light DASAR® L SYM

The LED recessed floor light DASAR® L SYM impresses with state-of-the-art technology and a robust design made of stainless steel 316. With a power output of 19 watts, it produces a warm white light at 3000 Kelvin and a luminous intensity of 1950 lumens with a beam angle of 24°. Thanks to the symmetrical light distribution, it ensures even illumination of surfaces. The luminaire is adjustable, allowing flexible orientation of the light beam to guarantee optimal lighting.

Robust Construction and High Protection Standard

The recessed floor light is equipped with impact-resistant protective glass and an IK10 impact protection rating, which safeguards it against pressure, vandalism, and heavy hail. Both the housing and the plug have an IP67 protection rating, meaning they can be briefly submerged underwater. The surface is additionally protected against jet water and dust according to IP65. With a load capacity of up to 2000 kg, the luminaire is walk-over and drive-over capable, making it particularly durable and long-lasting.

Easy Installation and Comprehensive Accessories

The luminaire is delivered ready for built-in installation and comes with a 100 cm long connection cable as well as a pre-wired junction box. The integrated LED driver is securely installed to ensure a stable power supply. Various mounting accessories are available for installation, such as mounting pots and interchangeable reflectors, which can be purchased separately. The cable diameter for the connection ranges between 9 and 13.5 mm, allowing for flexible installation.

Efficient Energy and Lighting Technology

With a luminous efficacy of 103 lumens per watt, the DASAR® L SYM offers efficient light output with an energy consumption of only 19 kWh per 1000 hours of operation. The luminaire has a long lifespan of up to 50,000 hours and operates at a mains voltage of 220-240V at 50/60 Hz. The maximum surface temperature is 60°C, ensuring safe operation. The luminaire is flicker-free and thus comfortable for the eyes, which is especially beneficial in sensitive environments.

Intelligent Control and Versatile Applications

The recessed floor light is compatible with DALI and push-dimmer systems, allowing for stepless dimming. This enables easy integration into digital building automation systems and IoT networks. The luminaire is suitable for numerous application areas and is available with both round and square trims. Additionally, there are variants with asymmetrical light distribution and various size options that can be selected depending on the requirements. The high-quality workmanship using stainless steel, aluminum, and glass also guarantees a long service life and attractive appearance.
