FastFix LED linear system S Modul, IP40, 150cm, 1-10V dimmable, 25-75W 4000K, 10500lm 90°

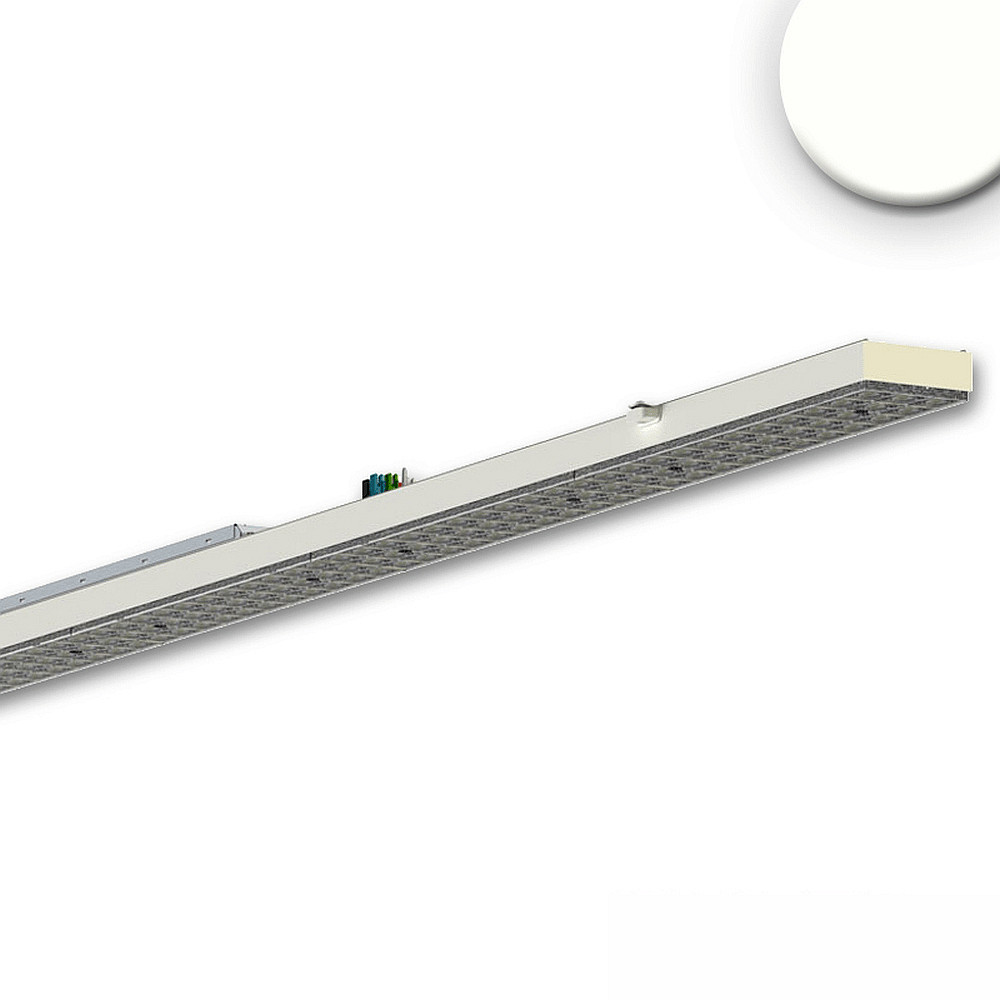

Efficient FastFix LED Linear System S Module

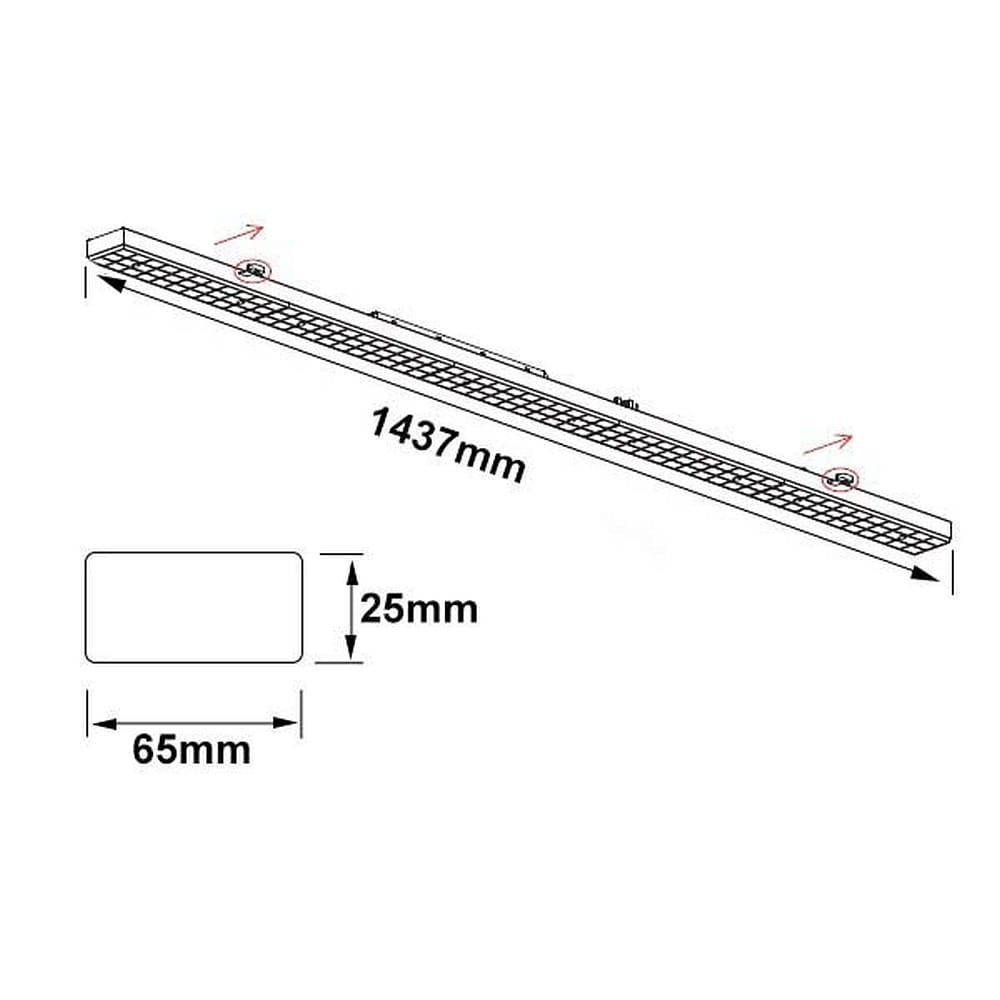

The FastFix LED Linear System S Module is an efficient lighting system that generates high brightness of 10500lm with a power range of 25-75W and a neutral white light color of 4000K. With a size of 150cm and a square design, it is ideal for installation on the ceiling in indoor spaces.

Flexibly dimmable and energy-saving

Thanks to its 1-10V dimmability, the brightness of the LED linear system can be adjusted as needed. With an energy efficiency class of C and a power factor of 0.93, this lighting system is not only flexibly dimmable but also energy-efficient and cost-effective to operate.

Robust construction and easy installation

The FastFix LED Linear System S Module features a robust steel construction and a protection class 1. It can be easily and safely installed with mounting accessories and a ballast. The quick-locking mechanism for attachment in the beam holder also makes installation easier.

Reliable technology and long lifespan

With LED boards containing 33 high-performance chips each, the LED linear system offers a reliable lighting solution. The average lamp lifespan is 36000 hours, ensuring long-term use. Additionally, the system is equipped with a focus lens for even light distribution.

Versatile applications and additional features

With an IP40 protection rating, the FastFix LED Linear System S Module is suitable for various applications. With an operating voltage of 180-265V~ and a ballast including an electronic transformer, this lighting system offers versatile application possibilities. Additional features such as emergency lighting usage and pass-through wiring make it a practical and effective lighting solution.
