downlight CYRA S ECO REFIT DALI controllable IP20, powder coated, black dimmable

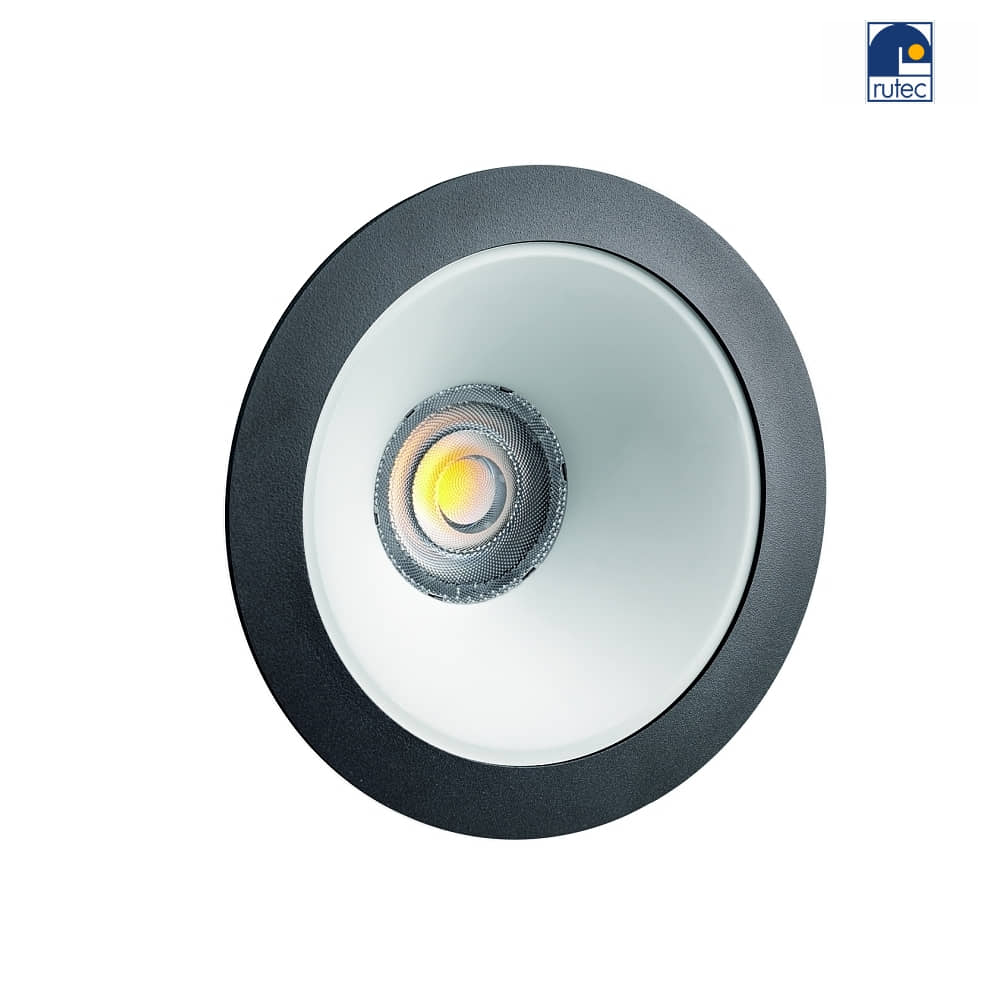

LED Downlight CYRA S ECO REFIT

The LED Downlight CYRA S ECO REFIT is an energy-efficient lighting solution with a power consumption of 7, 9, or 14 watts. With a color rendering index of 80-89Ra and a warm white light color, it provides a pleasant lighting atmosphere. The luminous efficacy is 143lm/W and the luminous flux is 2000lm, ensuring bright and uniform lighting.

Technical Details

The downlight has a size of 20.7 cm in outer diameter and a built-in depth of 8 cm. The installation opening has a circular diameter of 17.5cm. It is IP20 protected and suitable for indoor use. Through-wiring for the installation of multiple luminaires in a row is possible, allowing for flexible adaptation.

Dimmability and Accessories

The LED Downlight CYRA S ECO REFIT is DALI dimmable and comes with a control gear. The dimmability depends on the control gear. With an operating voltage of 220-240V~, it is easy to install and can be directly connected. The high-quality PMMA optics provide precise light distribution and very good glare control.

Longevity and Installation

The average lamp life of the downlight is 60000 hours, ensuring long-lasting lighting. Installation is done by recessing into the ceiling with tension springs that adapt to ceiling thicknesses of 1-30 mm. Installation in concrete recessed pots is also possible for versatile use.

Additional Information

Additional information about the LED Downlight CYRA S ECO REFIT includes screen workplace suitability, color consistency (McAdam ellipse) of SDCM3, and the use of a focus lens as a light diffuser. The downlight is powder-coated in black and has a color temperature of 2960-3110K. With protection class 2 and a plug type clamp connection, it offers a safe and easy installation.
