downlight CYRA M round IP43, powder coated, white

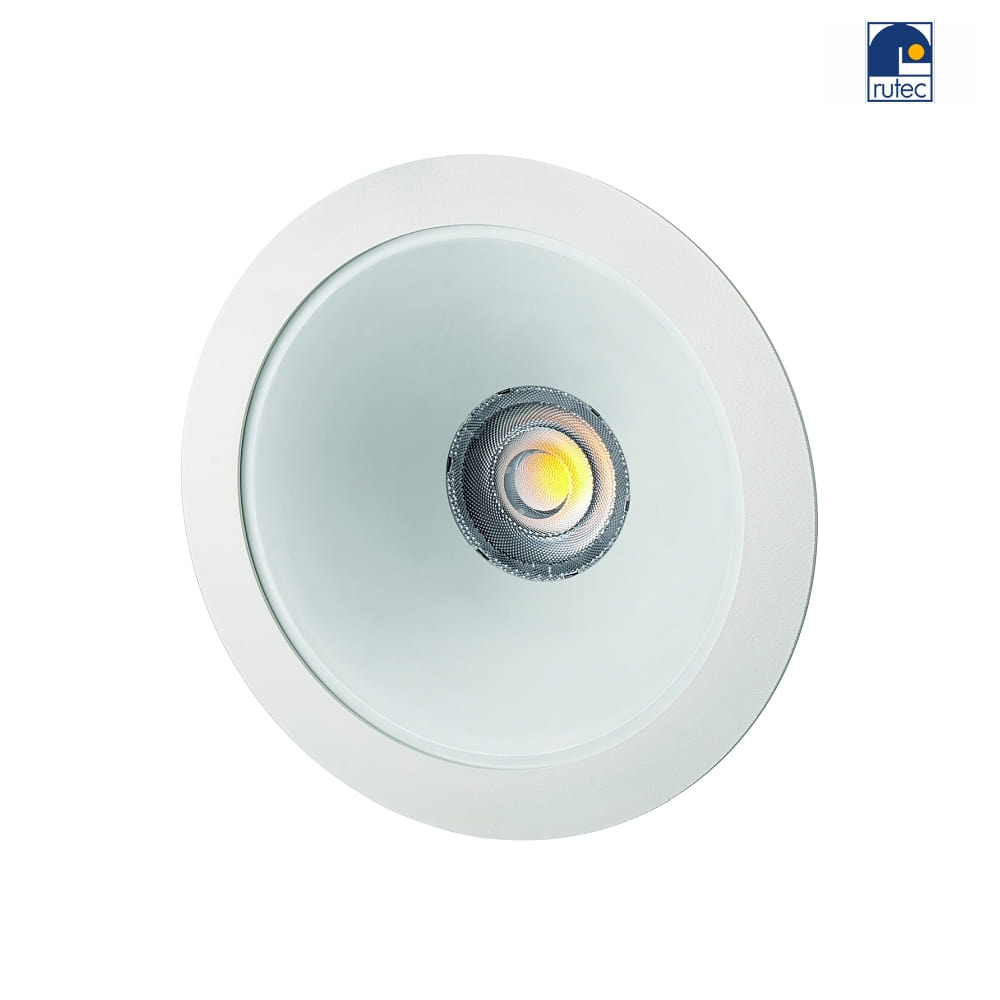

LED Downlight CYRA M, round, 60°, 18/24W, 3000K, 3500lm, IP43, On/Off, white

The LED Downlight CYRA M is a round luminaire with a beam angle of 60° and a power consumption of 18/24W. With a color temperature of 3000K and a light output of 3500lm, it offers a warm white light color and a high light output of 145.83lm/W. The luminaire is powder-coated in white and is suitable for indoor use.

Technical Details

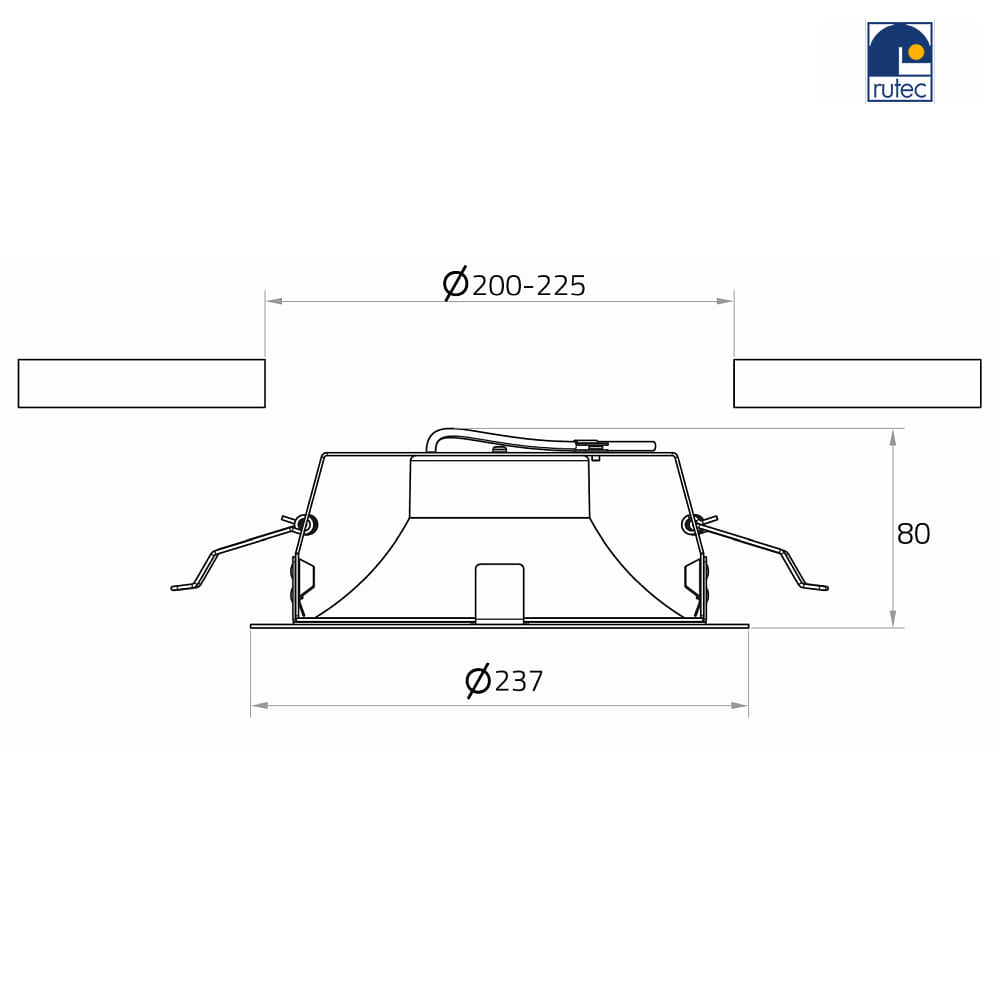

The size of the downlight is Ø 23.7 cm and a height of 8 cm. It has a color rendering index of 80-89Ra and an IP protection class of IP43. The luminaire can be wired through and comes with a control gear included. The average lamp life is 60000 hours.

Installation and Design

The LED Downlight CYRA M is suitable for recessed installation in the ceiling. Installation is tool-free with tension springs that adjust to the ceiling thickness. The luminaire has a cut-out circle of 20 cm and can also be installed in concrete embedding pots. The design includes a high-quality reflector made of pure aluminum for effective cooling and precise light control.

Energy Efficiency and Connection

The LED Downlight CYRA M has an energy efficiency class of D and a rated current of 500-700mA. The mains connection is made via a plug-in terminal and the operating voltage is between 220-240V~. The luminaire has a non-dimmable control gear and is not adjustable.

Accessories and Additional Information

The accessories include the control gear, which is pre-assembled. The luminaire is non-dimmable and has additional information such as suitability for screen workplaces, color consistency (McAdam ellipse), and a focus lens for light distribution. The LED can be replaced and the material consists of aluminum, sheet steel, and galvanized steel.
