downlight CHANGY-B TRIZONE - UGR<19 ETM multipower, set back, with lens optics IP40, white

LED Recessed Downlight CHANGY-B, IP40, TriZone Lens + Nimbus Effect, UGR<19, ETM Multipower, White

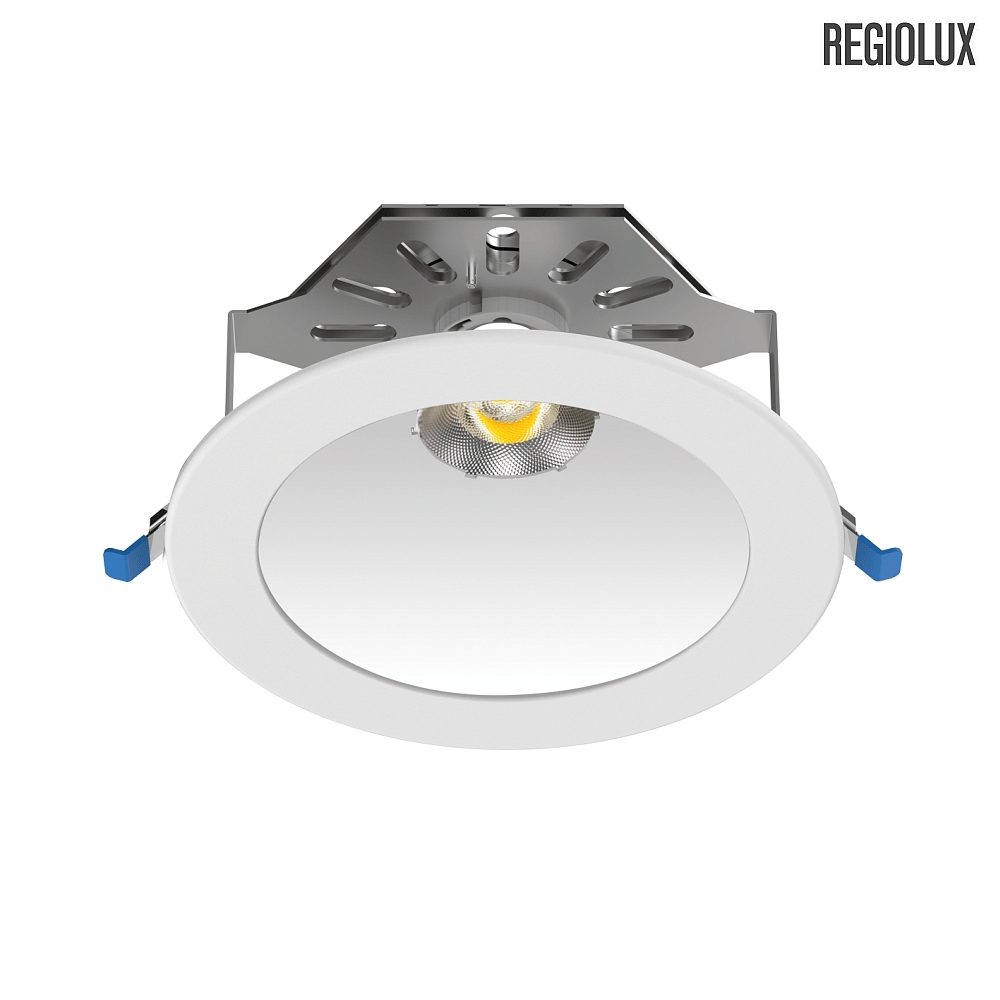

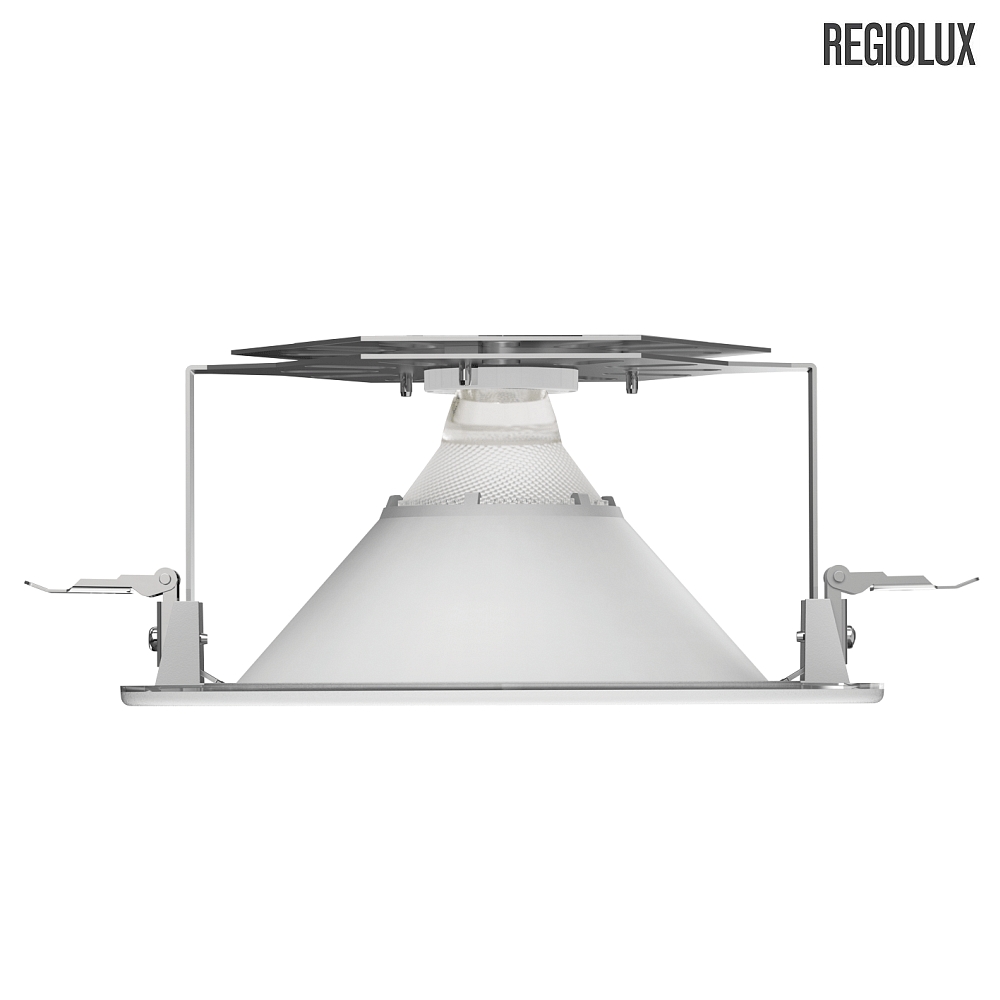

The LED Recessed Downlight CHANGY-B is a modern renovation downlight for dry indoor areas. It provides directed, glare-free light through new lighting techniques, including an 85° single lens/TriZone optics with a YASMEEN lens. Additionally, it features an invisible light ring in the trim for a side Nimbus light effect.

Power and Energy Efficiency

This downlight has a switchable 85° ETM Multipower version with DIP switch to adjust power consumption and light output. With an energy efficiency class D and an energy consumption of 20kWh/1,000h, this downlight offers a high light output of 130-141lm/W and a light output of 1500-2500lm, depending on the power consumption.

Technical Data and Installation

The downlight has an operating voltage of 230V~ and an ambient temperature of 25°C. It is designed for recessed installation in ceilings and has an IP40 protection rating. The installation opening can be either round with a diameter of 22.9cm or rectangular with a length of 57cm and a width of 33.9cm.

Additional Information and Accessories

This downlight offers a color consistency of 3 SDCM, ensuring a very low tolerance of deviations in light color when using multiple identical luminaires. It comes equipped with a connection cable, clip springs, DIP switch, and a driver. Please note that the through-wiring and mounting ring are not included in the delivery.

Size and Brand

The overall dimensions of the downlight are 24.6cm in diameter and 11.7cm in height. The visible part has a diameter of 24.6cm and a height of 0.65cm. The maximum material thickness that the downlight can accommodate is 2.5cm. This high-quality product comes from the renowned brand Regiolux.
