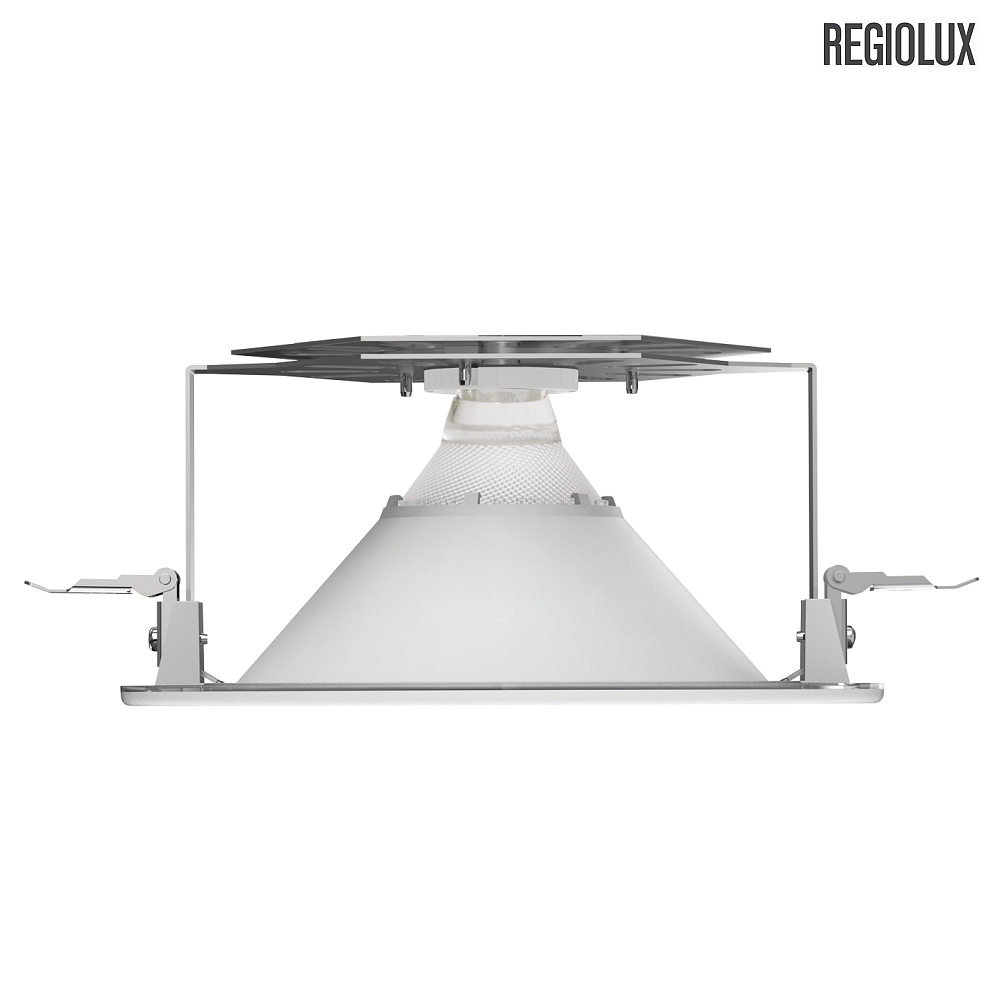

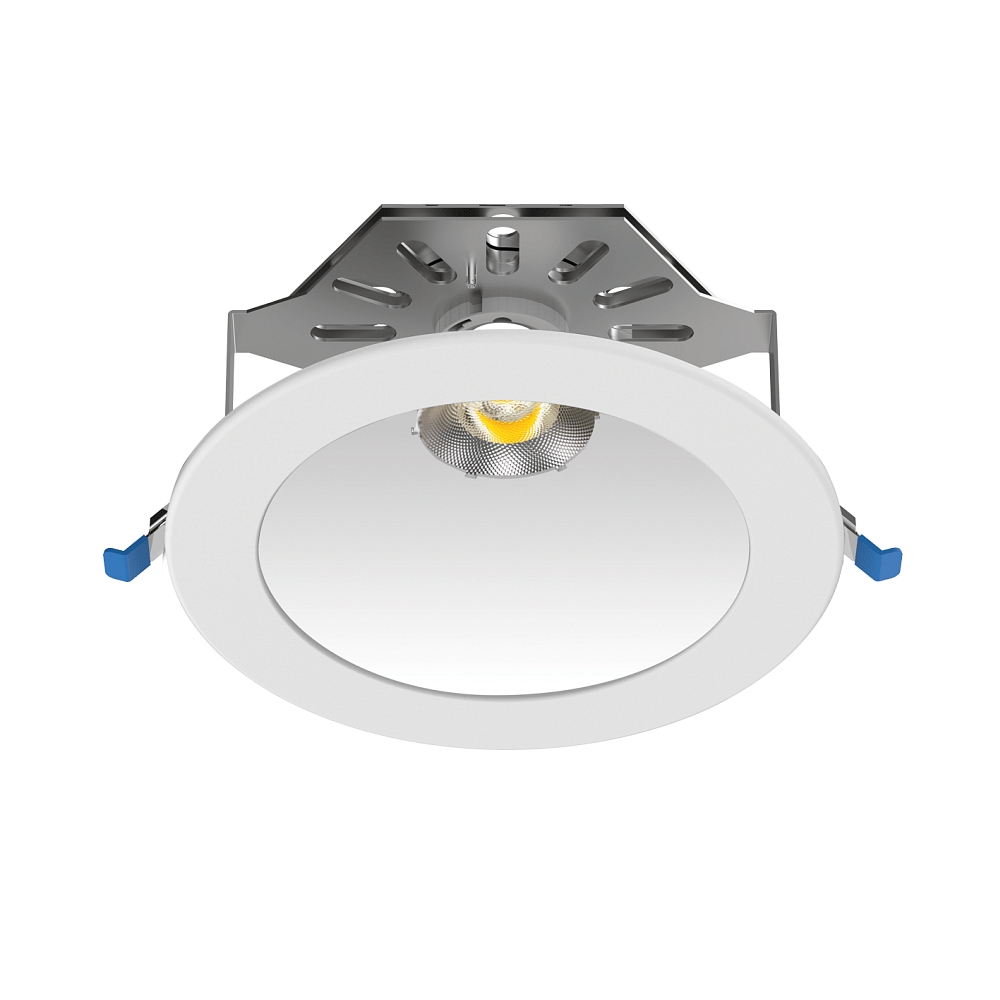

downlight CHANGY-B TRIZONE - UGR<19 ETM multipower, set back, with lens optics IP40, white

Regiolux



Are you a retailer or business customer (commercial/freelancer)? Secure special B2B prices now.

Modern LED Recessed Downlight CHANGY-B for Indoor Use

The LED Recessed Downlight CHANGY-B from Regiolux is a modern lighting solution for dry indoor areas. It provides directional and glare-free light through innovative lighting techniques, such as the 85° single lens with TriZone optics and the YASMEEN lens for optimal light distribution.

Efficient Lighting Technology and Innovative Nimbus Effect

The downlight features an invisible diffuser in the bezel that creates a side Nimbus light effect. Additionally, the switchable 85° ETM Multipower version offers the ability to individually adjust the power consumption and light output via DIP switches.

High-Quality Materials and Modern Technology

The LED Recessed Downlight CHANGY-B is made of die-cast aluminum and boasts a high energy efficiency class. With a color temperature of 3000K and a color rendering index of over 80Ra, it provides pleasant and natural lighting in the room.

Versatile Applications and Easy Installation

Thanks to the various sizes and installation openings, the downlight is suitable for different ceiling systems, such as recessed ceilings and panel ceilings. The installation is effortless and the external driver is pre-wired for operation, allowing for straightforward installation.

Environmentally Friendly Lighting Solution with Long Lifespan

The LED Recessed Downlight CHANGY-B is characterized by a high luminous efficacy of 121-132lm/W and a mean lamp lifespan of up to 100,000 hours. With an energy consumption of 20kWh/1,000 h and the ability to replace the LED light sources, it is a sustainable and durable lighting solution.

Colour:
white
Dimension:
total-Ø∕ L∕ H: 24,6∕ ∕ 11,7 cm
visible part-Ø∕ H: 24,6∕ 0,65 cm
min. material thickness -H: 1 cm
max. material thickness -H: 2,5 cm
driver-L∕ W∕ H: 14,4∕ 4,3∕ 3 cm
Material:
die-cast aluminium
Weight:
1,18 kg
Product type:
downlight
Lamp shape:
round
Bulbs in delivery:
yes
Application area:
suitable for indoor use
Field of application:
ceiling
Operating voltage:
230 V~
Dimmable:
no
Power frequency:
50 Hz
Power consumption:
10,3 / 13,7 / 17,4 / 19,2 W
Emitting angle:
85 °
LED can be replaced :
no
Bulb type:
LED
Lamps/bulbs:
LED
Light colour:
warm white
Light emission:
direct
Light flux:
1400 / 1800 / 2100 / 2300 lm
Light yield:
121-132 lm/W
Colour temperature:
3000 K
Average life span of a bulb in hours:
L80/B10: 100000
L90/B10: 50000 h
Colour rendering index:
>80 Ra
UGR:
< 19
Colour rendering index:
1B
IK-Rating:
IK02 up to 0.20 Joule
Fitting depth:
16,5 cm
Fitting opening circle :
22,9 cm
Fitting opening square/rectangular width:
57 cm
Fitting opening square/rectangular length:
33,9 cm
Length of connection lead:
50 cm
Plug type:
clamping connection
Mounting:
recessed mounting
IP-protection class:
IP40
Accessories:
connection cable included
clip springs included
DIP switch included
driver included
through wiring excluded
mounting ring excluded
ambient temperature:
25 °C
Energy efficiency category:
D
Energy consumption:
20.00 kWh/1.000 h
Manufacturer ordering code:
3651 0084 110
Article number:
REG-36510084110
Purchasing quantity:
1 piece
Brand:
Regiolux
Manufacturer:
Regiolux
Manufacturer information
Regiolux GmbH, Hellinger Straße 3, 97486, Königsberg, Germany, info@regiolux.de, https://www.regiolux.de/
