downlight APOLLO MAXI round, DALI controllable, faceted IP20, powder coated, silver dimmable

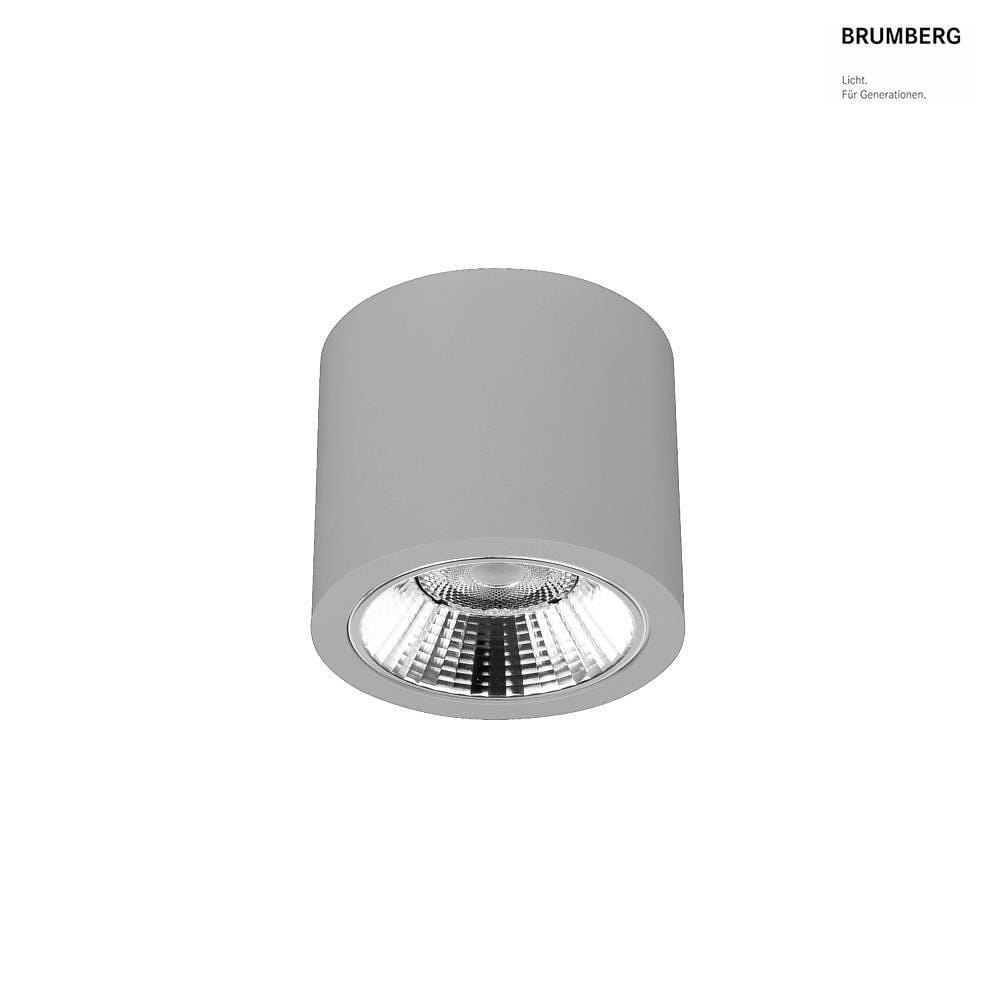

LED Surface-mounted Downlight APOLLO MAXI

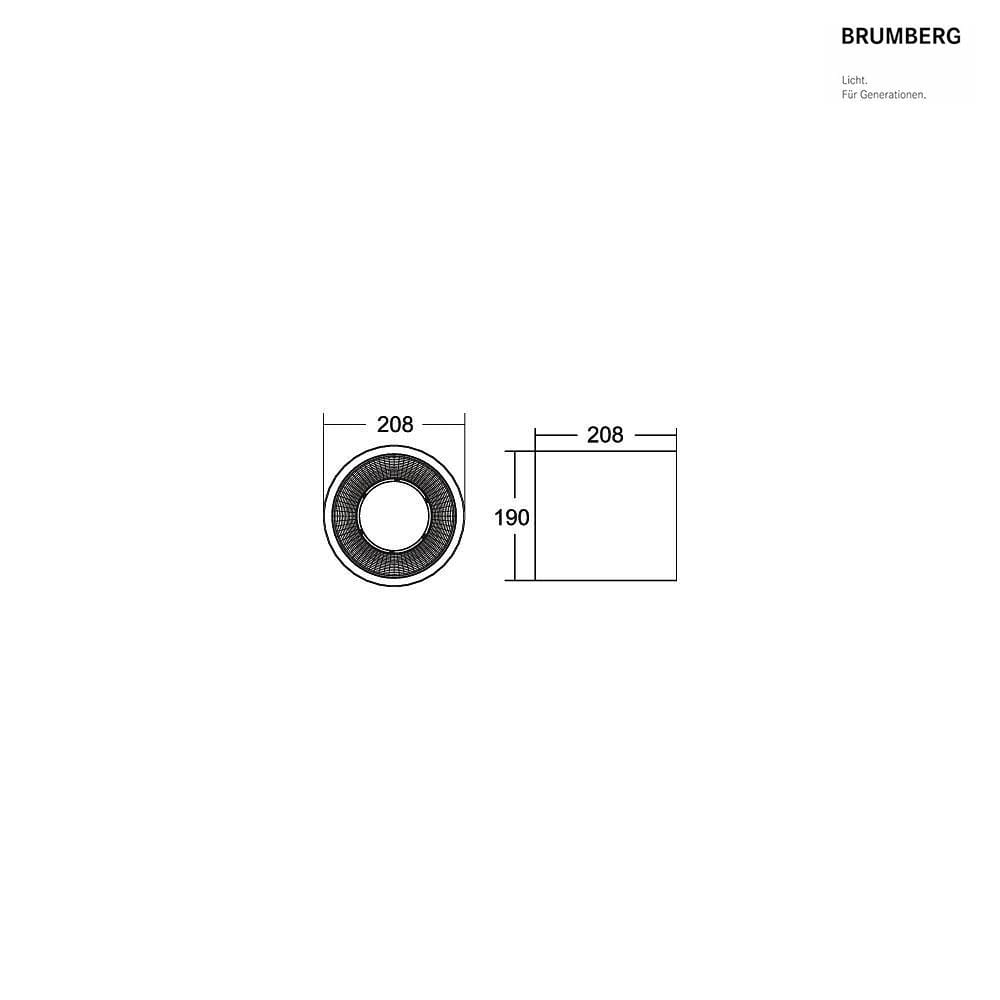

The LED Surface-mounted Downlight APOLLO MAXI is a high-quality, durable surface-mounted spotlight for indoor ceilings (IP20). With a diameter of 20.8 cm and a height of 19 cm, this downlight is ideal for modern building automation systems. It provides direct downward emission and a rotationally symmetrical deep-wide-beam luminous intensity distribution.

Faceted Reflector and DALI-2 Dimmability

The round version of the APOLLO MAXI features a faceted, high-gloss reflector. Thanks to DALI-2 dimmability, the light intensity can be individually adjusted. The light output is an impressive 118lm/W, ensuring very good energy efficiency. Additionally, the downlight offers very good color rendering with a color rendering index of over 90Ra.

Special Features and Applications

With a color consistency (McAdam ellipse) of 3 SDCM, there is minimal deviation in light color when using multiple identical luminaires. The downlight is particularly suitable for screen workstations with a UGR value of less than 19. The operating devices are current-controlled and replaceable, allowing for easy maintenance.

Versatile Customization Options

The LED Surface-mounted Downlight APOLLO MAXI is available in various sizes and power levels, both in round and square shapes. It can be supplied in different housing colors and with different light colors to blend seamlessly into the environment. Additionally, switchable and DALI-2 dimmable versions are available.

Technical Data and Certifications

The downlight has a power consumption of 20.5W and an energy consumption of 21kWh/1,000h. It has an IP protection rating of IP20 and can be replaced by a professional. With a weight of 2.178kg and an average lamp lifespan of 50,000 hours, the APOLLO MAXI offers a reliable lighting solution. Additionally, the product is certified with the UKCA mark.
