dimmer MASTER (STAND-ALONE) / SLAVE (DMX) / WITH RDM, VARIABLE PWM (0.5-35KHZ) 4 channel, DMX controllable, blue

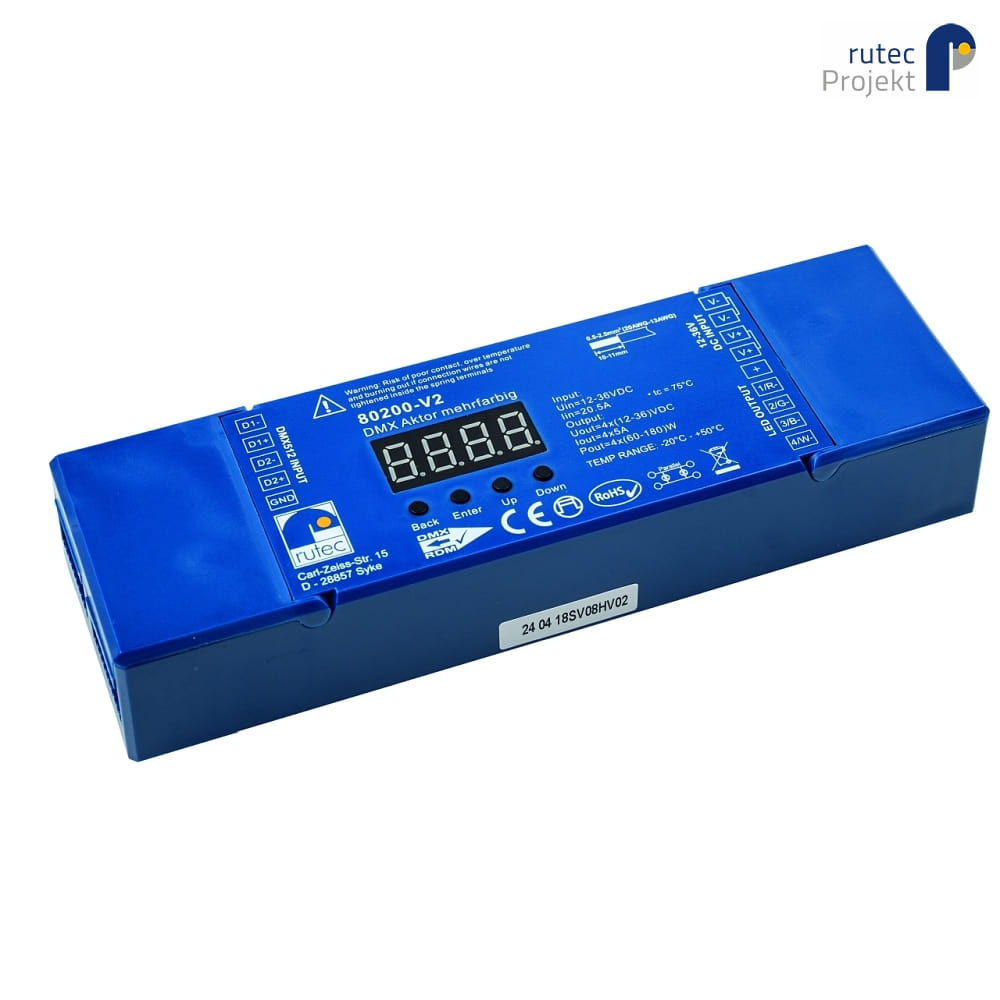

DMX 512 Dimmer Actor from Rutec Projekt

The DMX 512 Dimmer Actor from Rutec Projekt is a versatile dimmer that can be operated as both a MASTER (stand-alone) and a SLAVE (DMX). With an operating voltage of 12-24V and a maximum current load capacity of 20A, it is capable of controlling a power of up to 240W at 12V or 480W at 24V. This dimmer actor is ideal for controlling up to 4 colored light sources.

Technical Details and Accessories

The DMX 512 Dimmer Actor features sensor technology for DMX and supports the DMX dimming mode as well as PWM pulse width modulation. With an IP protection class of IP20, this dimmer is suitable for indoor use. The connection is made via a terminal, and the accessories include a display/LED indicator that allows for easy control and monitoring of the dimmer actor.

Compact Size and Temperature Range

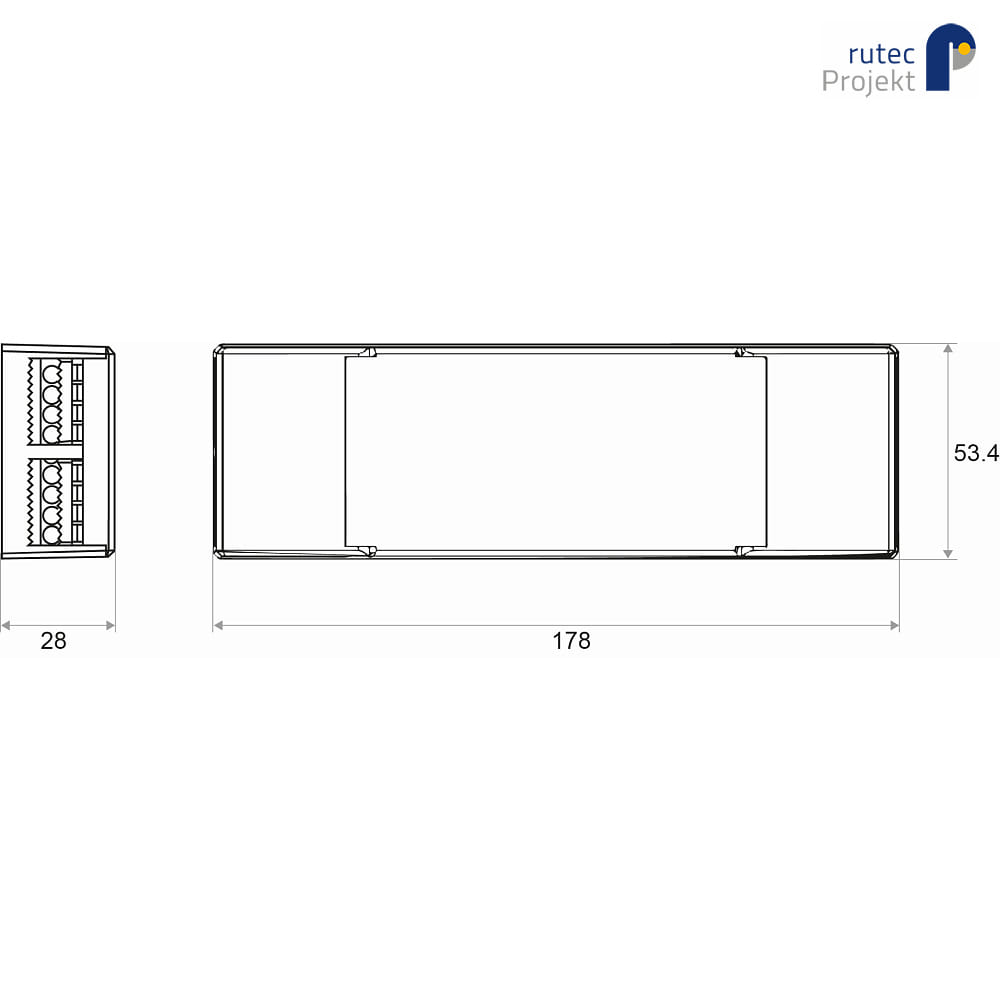

The DMX 512 Dimmer Actor from Rutec Projekt is characterized by its compact dimensions. With a size of LxWxH: 17.8x5.34x2.8 cm, it can be installed in a space-saving manner. The dimmer actor is designed for a temperature range of -20 to +50 °C, ensuring reliable operation in various environments.

Versatile Applications

With its 4 channels and the ability to control up to 4x 60W at 12V or 4x 120W at 24V, the DMX 512 Dimmer Actor offers a variety of application possibilities. Whether in residential areas, shops, or event spaces, this dimmer allows for precise and flexible control of lighting.

Additional Information and Datasheet

For more information on the DMX 512 Dimmer Actor from Rutec Projekt and detailed technical specifications, we recommend taking a look at the product datasheet. With its high-quality construction and versatile applications, this dimmer is a reliable solution for professional light control.
