dimmer KNX ACTOR 350MA voltage constant, 4 channel, KNX controllable, blue

KNX Actuator for 12-24V, single-color/multi-color

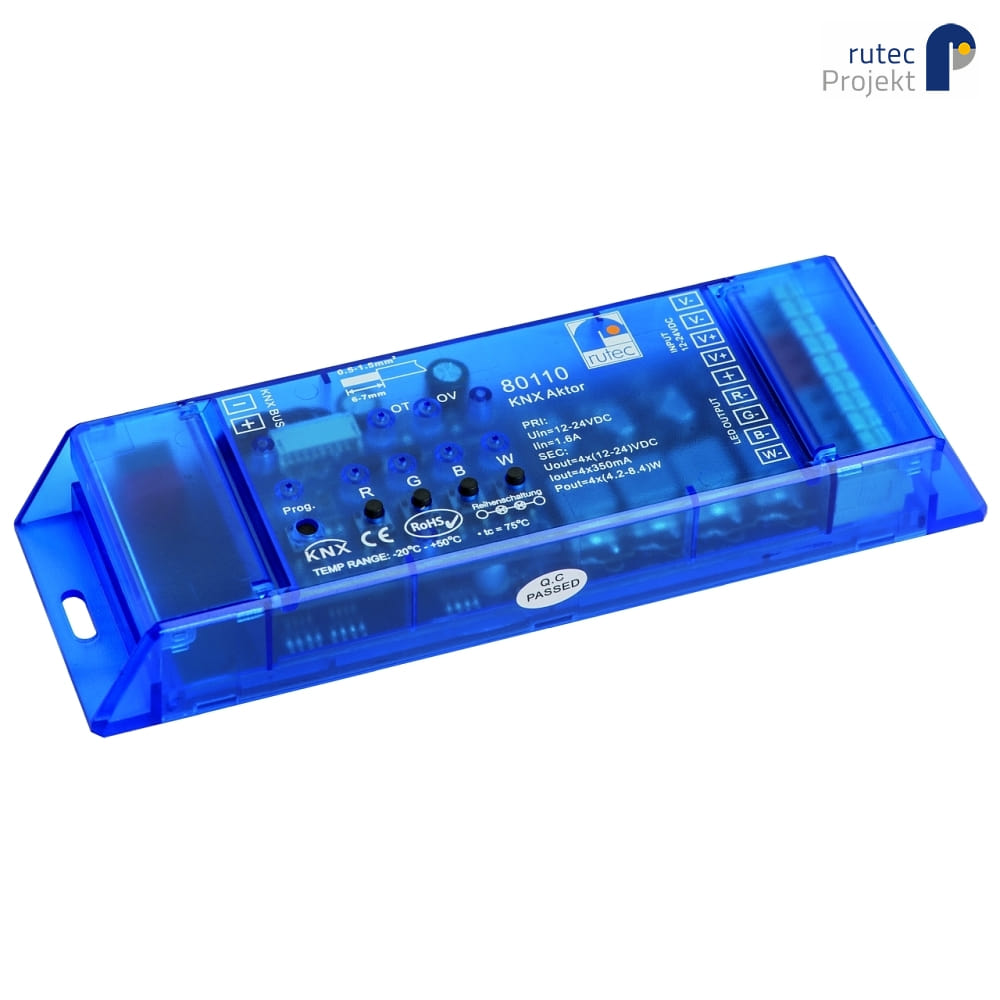

The KNX actuator from Rutec Projekt is suitable for operation with a voltage of 12-24V and can control both single-color and multi-color lighting. With a power of 16.8-33.6W and 4 independent channels (each 350mA), this actuator offers versatile options for individual light control.

Max. Current Load Capacity and Ambient Temperature

The actuator has a maximum current load capacity of 0.35A and can be operated in a temperature range of -20 to +50 °C. This makes it ideal for use in various environments, both indoors and outdoors.

Brand and Accessories

The KNX actuator is from the brand Rutec Projekt and comes with a status LED. This accessory allows you to easily see the operating status of the actuator at a glance, facilitating installation and operation.

Power Connection and Sensing

The actuator is connected to the power supply via a terminal and features KNX sensing for precise and reliable control. With 4 addresses, you can integrate the actuator into your KNX system and adjust the lighting to your preferences.

Product Type and IP Protection Rating

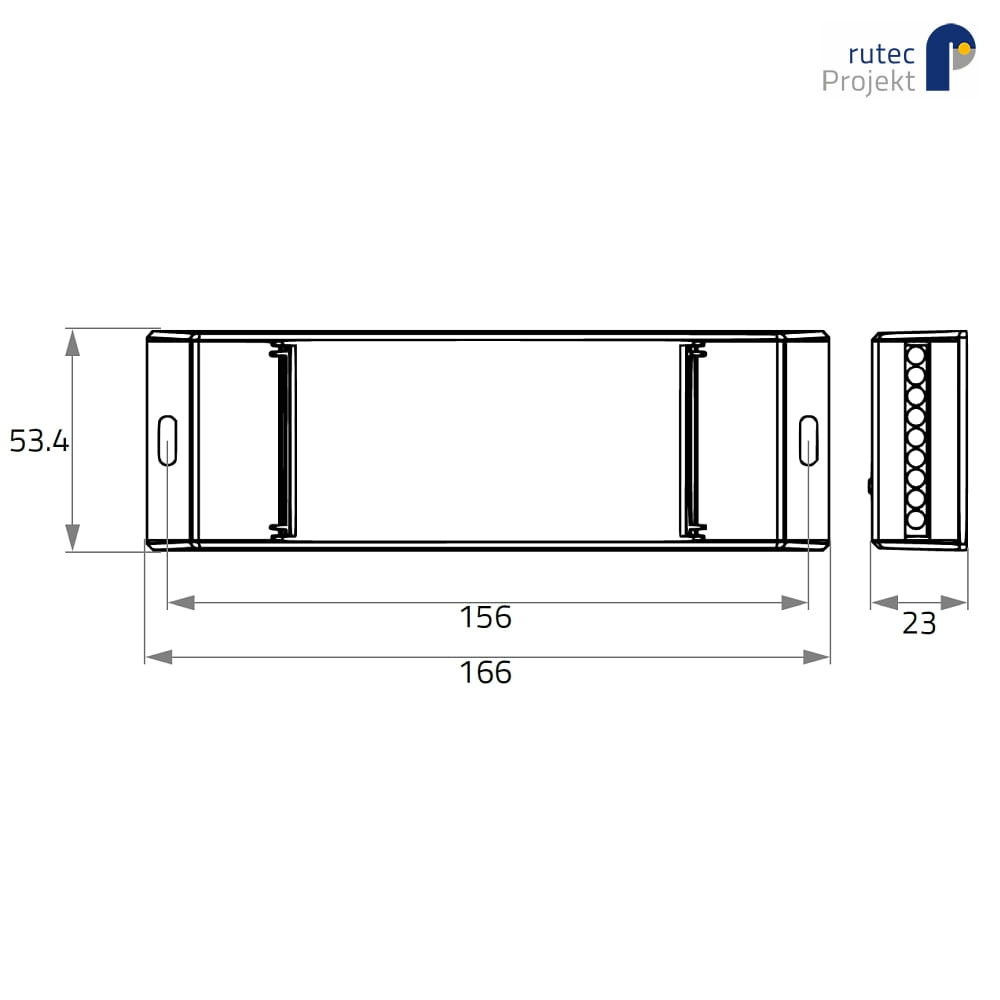

The KNX actuator is a dimmer that is controlled via KNX dimming mode. With an IP20 protection rating, the actuator is protected against dust and touch, making it ideal for indoor use. The compact size of 16.6 x 5.34 x 2.3 cm allows for easy installation and integration into your lighting system.
