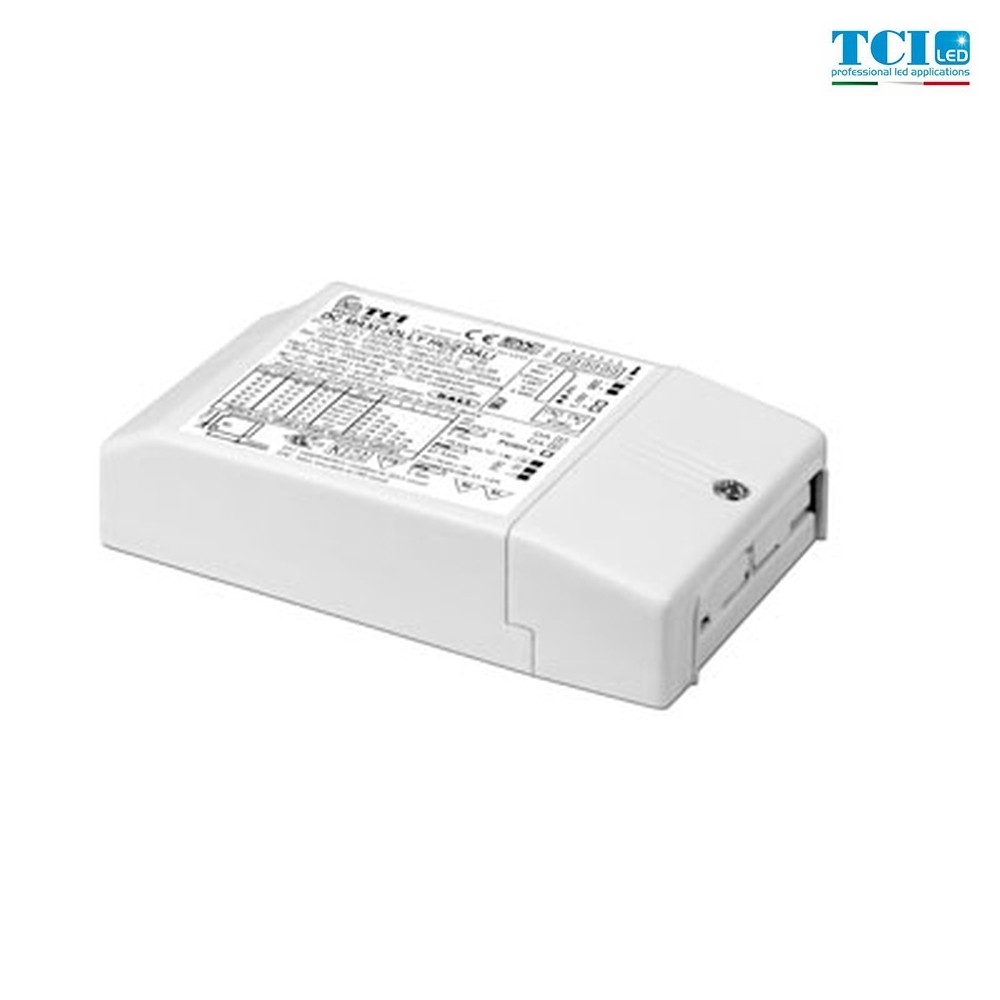

DC MAXI JOLLY HC/2 DALI, multi LED constant current converter, 55W, DALI / switch / 1-10V dimmable
TCI
CHF 64,33
excl. Shipping costs / excl. VAT
Recommended retail price: CHF 81.38
You save 21,0 %
Shipping time: out of stock
Product no.: TCI-123314
EAN: 8010703321199
In stock: 0
DC MAXI JOLLY HC/2 DALI, Multi LED Constant Current Converter, 55W, DALI / Push-button / 1-10V dimmable
The DC MAXI JOLLY HC/2 DALI is a multi-LED constant current converter with a power of 55W. It is equipped with DALI, a push-button, and 1-10V dimming capability. The item number is TCI-123314.
Specifications

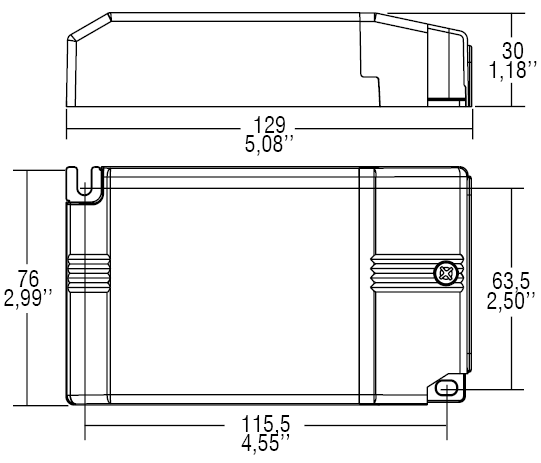

The operating voltage of the converter is 110-240V~ and the constant current can be set between 1050-2100mA. The size of the device is L 12.9 cm x W 7.6 cm x H 3 cm.
Features
The DC MAXI JOLLY HC/2 DALI is dimmable and can be dimmed analogously with 1-10V, via DALI, or with a light switch. It is suitable for indoor use only and is available in white color. The weight of the converter is 0.25kg.
Installation and Connection
The converter can be used for both recessed and surface mounting. The power connection is made via a terminal block and the power supply frequency is 50-60Hz. The converter comes with a terminal connection.
Safety and Protection
The DC MAXI JOLLY HC/2 DALI is equipped with various protection mechanisms, including a short-circuit window safety transformer, protection in case of over 110° in case of error, protection class 2, as well as protection against overload, overvoltage, overheating, and short circuits. Additionally, it is flicker-free and has selectable constant current.
surfaced mounting
With the sync-cable up to 10 divices in a row can be switched and switched via the first in row (1 "master" + 9 "slave").
Adjustable constant current.
With shortcut circuit protection
20W 24V max. 900mA
10W 12V max. 900mA
Accessories
