DC JOLLY MD, dimmable multi LED converter 32W, dimmable with phase trailing edge / switch

TCI

Print product information sheet▶

question regarding the article

Print product information sheet▶

question regarding the article

CHF 36,91

excl. Shipping costs / excl. VAT
Recommended retail price: CHF 46.74

You save 21,0 %

Shipping time: out of stock

Product no.: TCI-122260
EAN: 8010703350229
In stock: 0

Alternative product variants:

DC JOLLY MD, dimmable multi LED converter 32W, dimmable with phase trailing edge / switch DC MAXI JOLLY US, dimmable multi LED converter 60W - switch / 1-10V AM/PWM

Are you a retailer or business customer (commercial/freelancer)? Secure special B2B prices now.

To business registration

Multi LED Constant Current Converter DC JOLLY MD

The Multi LED Constant Current Converter DC JOLLY MD is a high-performance driver for LED lights with an operating voltage of 230V~. It has a constant current output of 350mA - 750mA and a power consumption of 17W - 32W. The driver is dimmable and can be dimmed with both a phase-cut dimmer and a light switch.

Technical Data

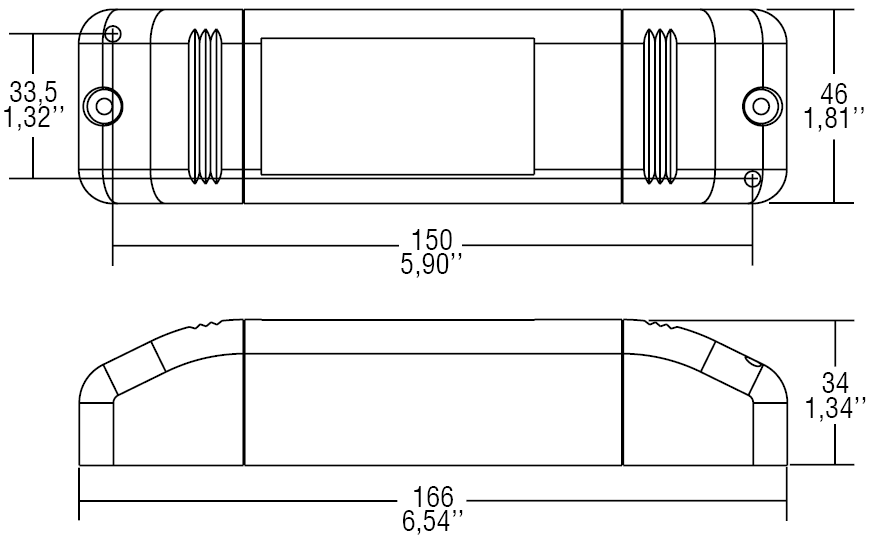

The converter has dimensions of 16.6 x 4.6 x 3.4 cm and a weight of 0.185kg. It is suitable for installation or surface mounting indoors and has an IP protection rating of IP20. The driver can be mounted on normally flammable surfaces and is KEMA and EMC certified.

Pre-settable Output Currents

The Multi LED Constant Current Converter allows for pre-setting of the output current via dip switches. The available output currents are 350mA, 500mA, 550mA, 700mA, and 750mA. It is important not to exceed the maximum forward voltage (Vf) to avoid overloading the driver.

Synchronization and Protection Functions

With the optional sync cable, up to 10 devices can be synchronized and controlled through the first device. The converter also has protection functions such as overload protection, overvoltage protection, overheat protection, and short circuit protection to ensure safe and reliable operation.

Reliable Operation and Flicker-Free Lighting

The Multi LED Constant Current Converter DC JOLLY MD provides reliable operation at ambient temperatures of -20 to +50°C. It ensures flicker-free lighting and stable power supply for LED lights. With its compact design and various protection functions, this converter is the ideal choice for professional lighting applications.

Article number:

TCI-122260

Purchasing quantity:

1 piece

Brand:

TCI

Product type:

converter

Manufacturer:

TCI

Operating voltage:

230 V~

Dimmable:

yes

Constant current:

17W | 2...47V | 350 24W | 2...47V | 500 25W | 2...47V | 550 32W | 2...46V | 700 32W | 2...43V | 750 mA

Dimmability:

trailing edge, switch dimming

Power frequency:

50-60 Hz

Power consumption:

32 W

Start time:

5A 50µsec s

Bulb type:

LED

Colour:

white

Dimension:

Abmessungen-L∕ W∕ H: 16,6∕ 4,6∕ 3,4 cm

Weight:

0,185 kg

Short circuit protected safety transformer:

yes

Protected by more than 110°C in fault:

yes

Max. current carrying capacity:

750 mA

Suitable for fastening on normal inflammable surfaces:

yes

Mounting:

recessed mounting
surfaced mounting

Protection class:

IP-protection class:

IP20

MM-Sign. Allows the mounting of the luminaire on materials (ex: wood) with unknown inflamation behaviour:

yes

Product KEMA tested (Netherlands):

yes

Product EMV tested:

yes

Application area:

only suitable for indoor use

Additional information:

Flicker free.
With the sync-cable up to 10 divices in a row can be switched and switched via the first in row (1 "master" + 9 "slave").
With overload protection
With overvoltage protection
With overheat protection
With shortcut circuit protection
With shortcut circuit protection
20W 24V max. 900mA
22W 28V max. 900mA
10W 12V max. 900mA

Accessories:

sync cable excl

ambient temperature:

-20 - +50 °C
