ceiling recessed luminaire PANEL FLAT 300 R SCCT DIM C flat, rigid, dimmable IP44, white dimmable

Modern LED Recessed Panel for Efficient Lighting

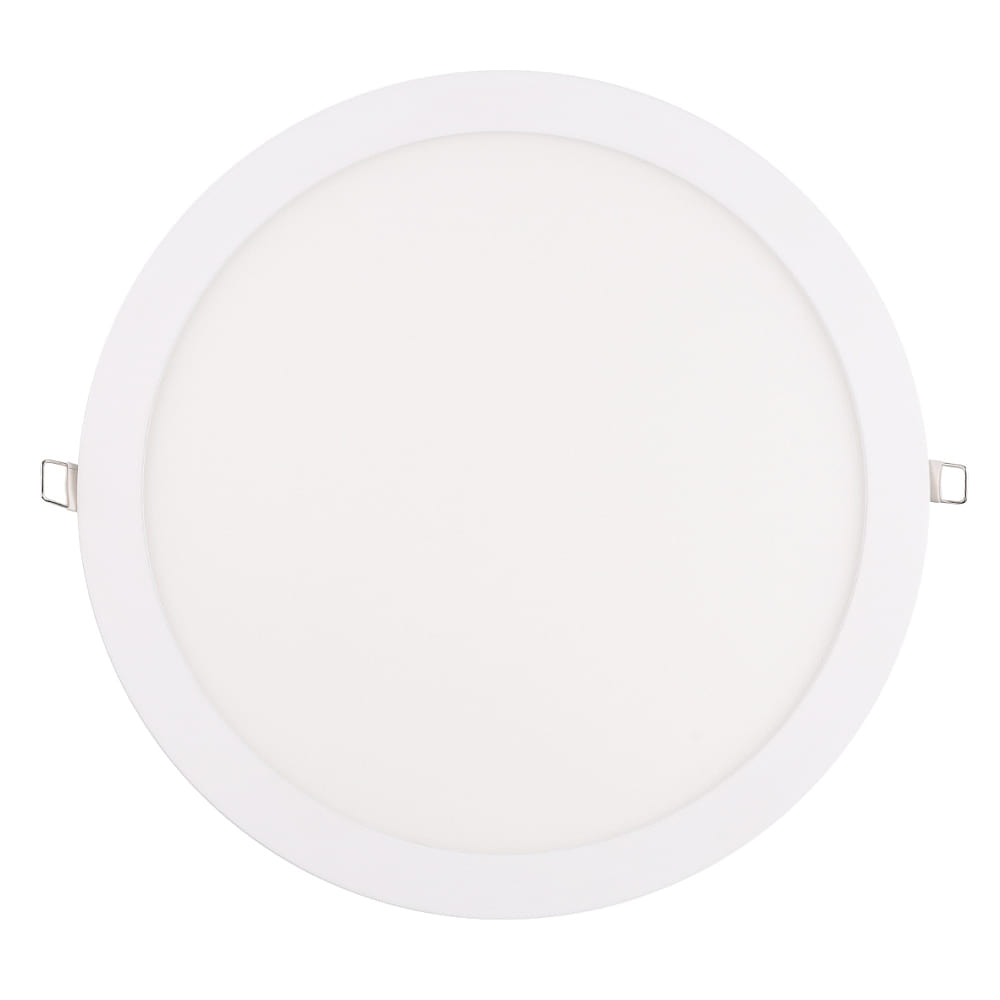

The LED recessed panel FLAT 300 R SCCT DIM C from nobilé impresses with its flat, round design featuring a diameter of 30 cm and an installation depth of only 2.5 cm. With a power consumption of 19 watts, it offers a high luminous efficacy of 100 lumens per watt and produces a luminous flux of 1900 lumens. The panel is dimmable and has a beam angle of 120°, ensuring wide and even light distribution. The housing is made of painted aluminum and the light diffuser is made of non-yellowing polymethyl methacrylate (PMMA), providing durable and high-quality workmanship.

Flexible Color Temperatures for Every Mood

The LED panel offers an adjustable color temperature that can be varied between warm white (3000K), neutral white (4000K), and cool white (5700K). This allows the light color to be ideally adapted to the specific room situation or personal preferences. With a color rendering index of over 80 Ra, colors are rendered naturally and brilliantly, significantly enhancing comfort and atmosphere. Thanks to a MacAdam ellipse deviation of 4 SDCM, color consistency is particularly stable, ensuring a uniform light appearance.

High Quality and Long Lifespan

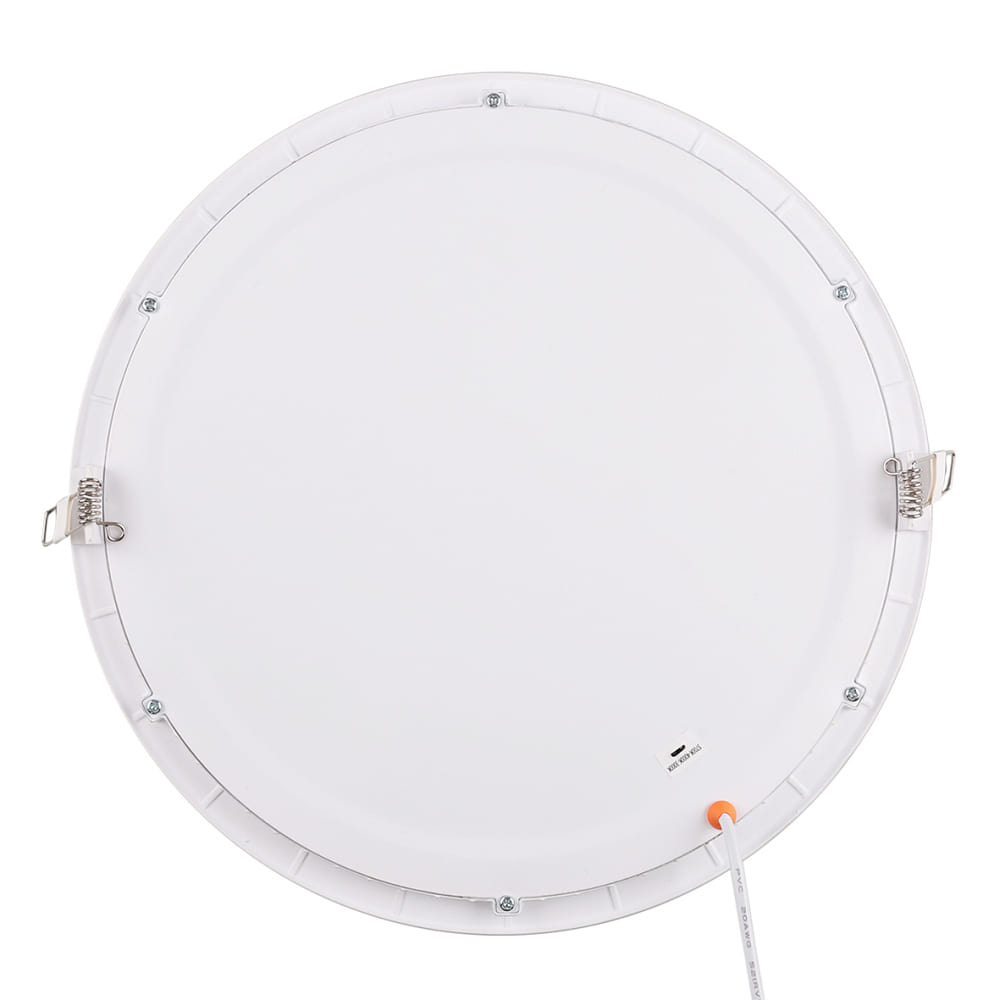

The recessed panel is designed for an average lamp lifetime of 75,000 hours, ensuring long-lasting and reliable use. The IP44 rating reliably protects the panel against moisture and dust, making it suitable for demanding environments. Thanks to protection class 2, safe operation is guaranteed. The product is supplied including a connection box with through-wiring as well as clip springs and a light color switch, which facilitate installation and provide flexible use.

Easy Installation and Versatile Applications

With a cut-out size of 28.1 cm, the LED panel is ideal for shallow hollow ceilings and can be easily installed. The 45 cm long connection cable as well as the included connection box with push-in terminals allow for uncomplicated connection to the power supply. The dimmable version works with phase-cut dimmers, allowing stepless adjustment of brightness. The panel is excellently suited for general lighting in many areas and impresses with the combination of efficient energy consumption and pleasant light comfort.

Versatile Design and Practical Features

The LED recessed panel is available in white and blends harmoniously into various interior styles thanks to its simple, modern design. In addition to the included dimmable control gear, through-wiring is also integrated, offering additional flexibility during installation. The product is also available in other sizes as well as with a black housing and in a square shape. Combining high quality, flexible light control, and easy handling, the LED panel is an excellent choice for contemporary and energy-efficient lighting.
