3-phase spot SIGHT PANEL square, suitable for VDU workstation IP20, white, lacquered

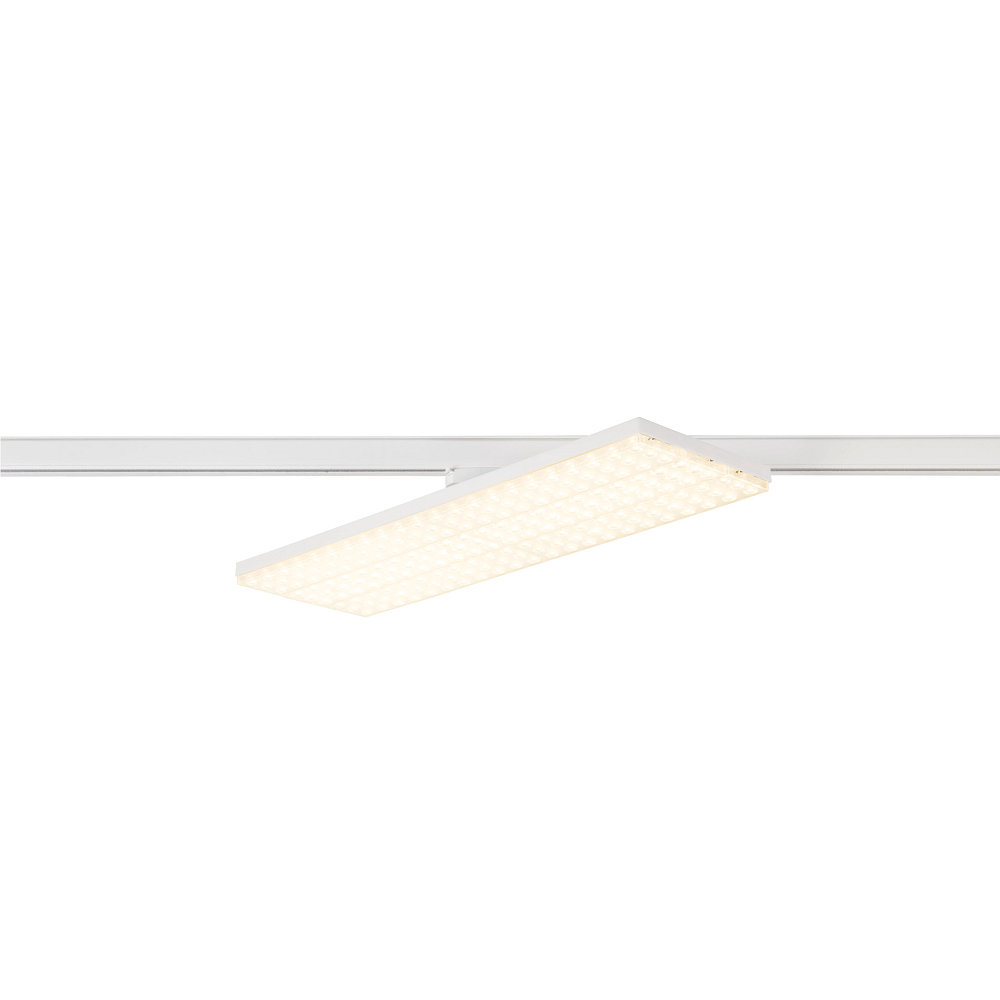

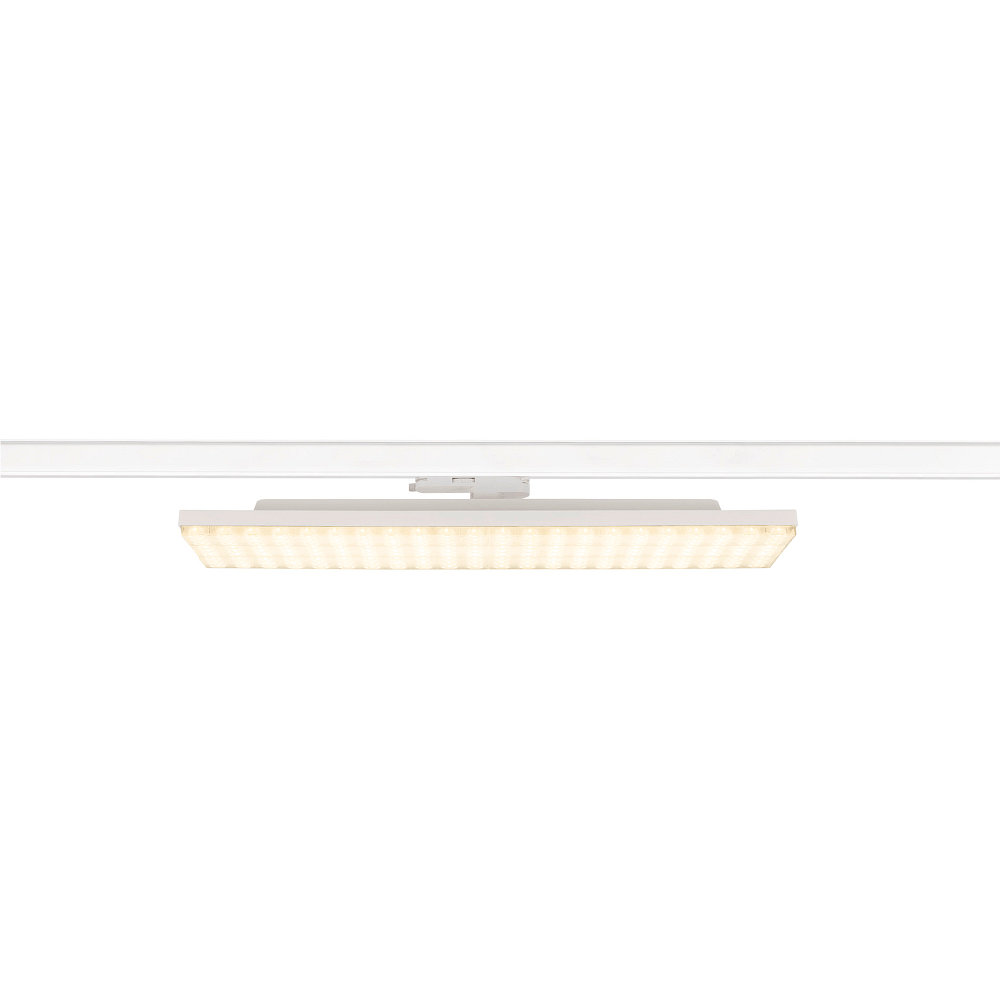

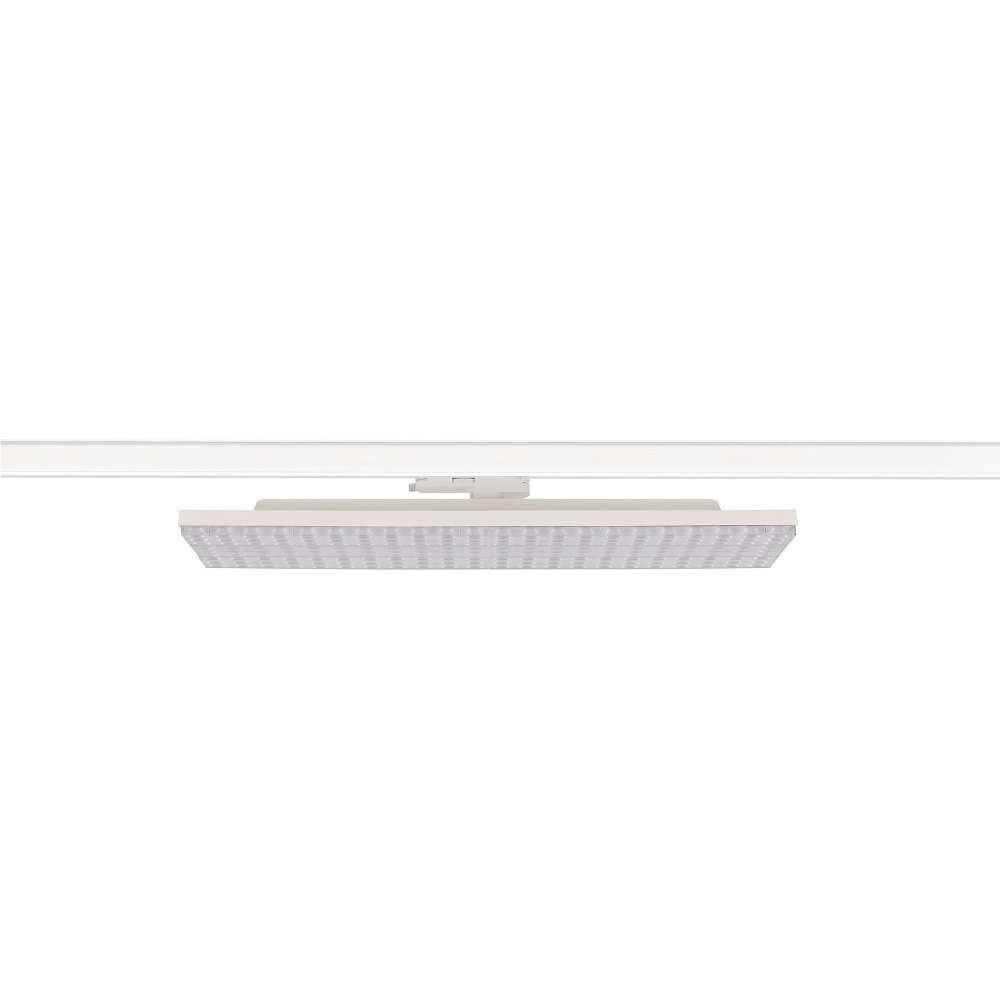

High-Quality LED 3-Phase Spotlight SIGHT PANEL

The LED 3-phase spotlight SIGHT PANEL from SLV impresses with its rectangular shape and a length of 58 cm. With a power consumption of 38 watts, it offers an excellent luminous efficacy of 165.79 lumens per watt, ensuring energy-efficient lighting. The weight of the spotlight is only 2.03 kg, making it easy to install. Protection class 1 guarantees safe use at an operating voltage of 220 to 240 volts.

Optimal Light Quality and Pleasant Color Temperature

The spotlight features a color temperature of 3000 Kelvin, producing a warm white light that creates a pleasant atmosphere. The color rendering index ranges between 90 and 100 Ra, meaning colors are rendered very naturally and vividly. With a luminous flux of 6300 lumens, the device provides bright and even illumination, which is especially suitable for screen workstations.

Precise Light Distribution and Beam Angle

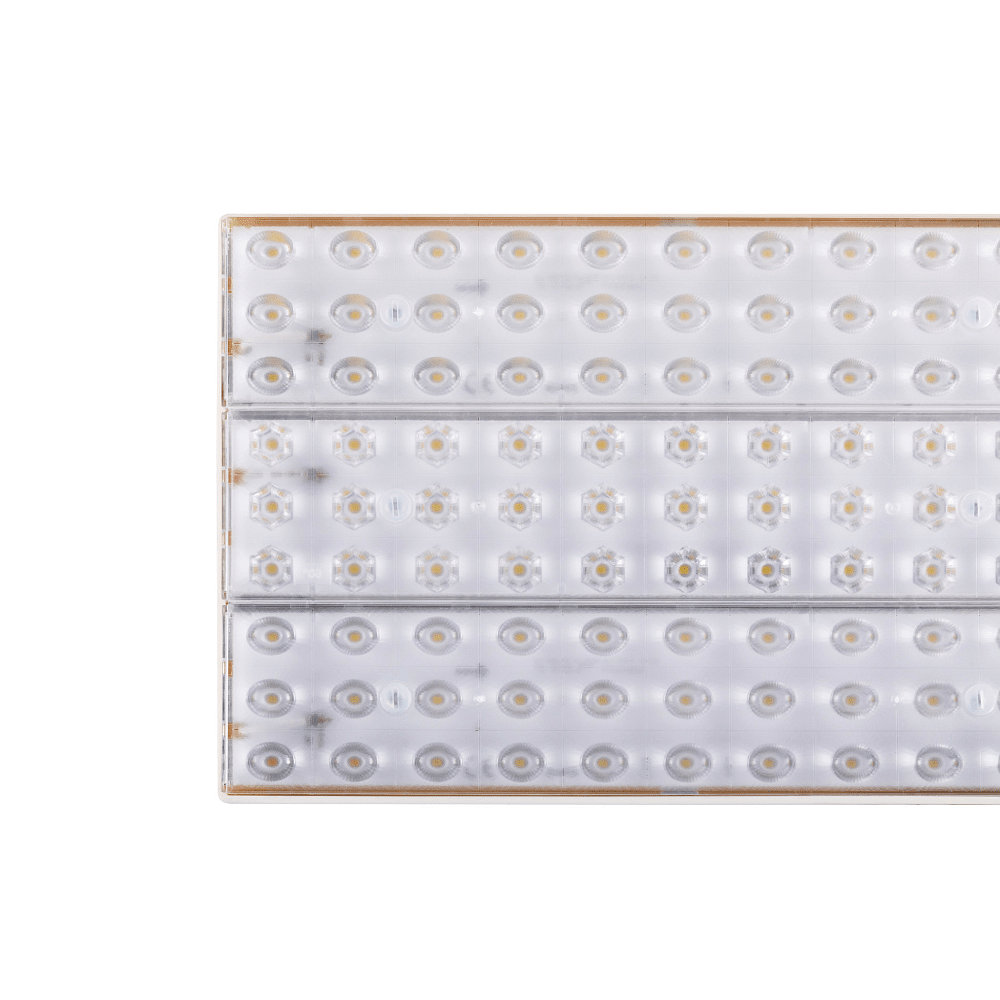

The SIGHT PANEL spotlight has a beam angle of 70 degrees, providing wide-beam lighting. Light distribution is achieved through a diffuser lens, which gently spreads the light and reduces glare. This diffuser optics contribute to a pleasant and even light pattern, which is particularly eye-friendly. The spotlight is not adjustable but still offers optimal light diffusion in the range of 40 to 80 degrees.

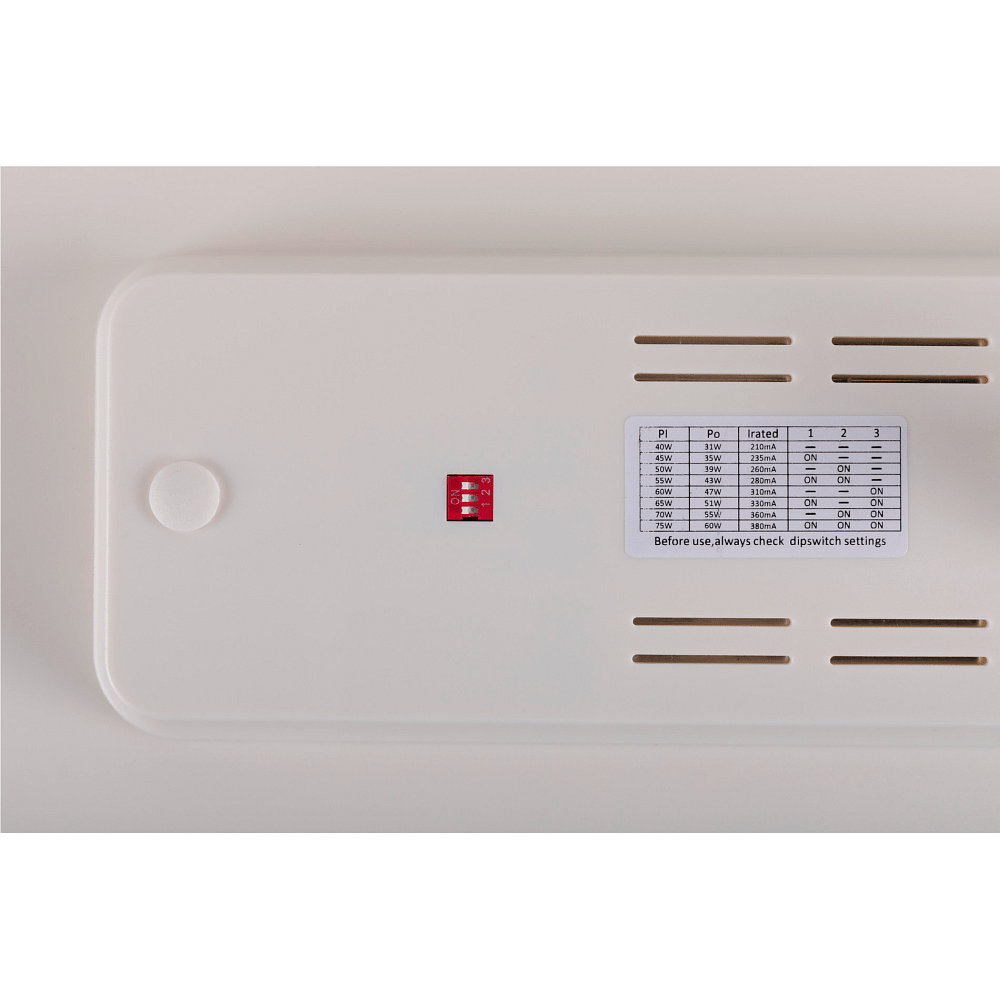

Integrated LED Driver and Practical Installation

The scope of delivery includes a current-controlled LED driver that is not replaceable. This driver ensures reliable and consistent power supply to the LED light sources. The mains connection is made via a busbar adapter, allowing for easy and flexible installation. The maximum number of spotlights that can be operated on a B16 or C16 circuit breaker is 24 units.

Robust Construction and Technical Details

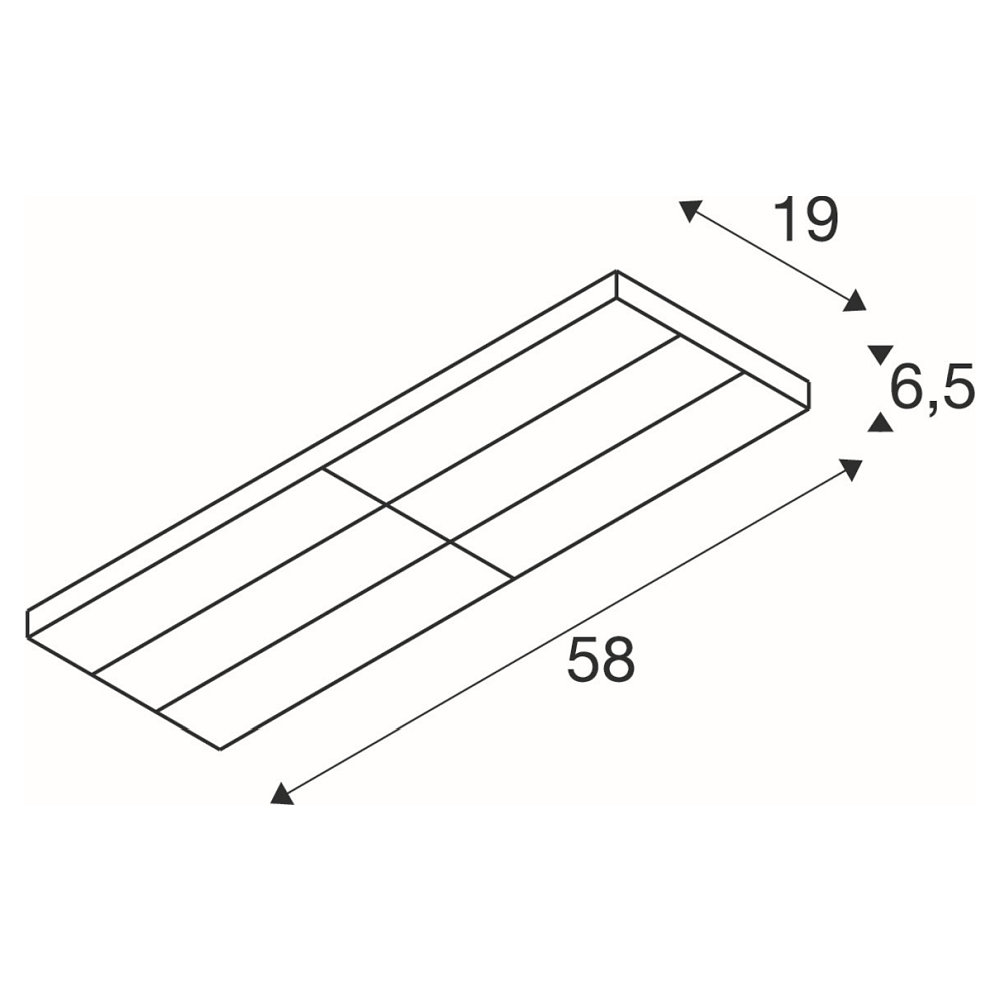

With dimensions of 58 cm length, 19 cm width, and 6.5 cm height, the spotlight is compactly designed and fits various lighting concepts. The ambient operating temperature ranges from -20 to 35 degrees Celsius. The protection rating IP20 protects the device against solid foreign objects but not against water. Overall, the SLV SIGHT PANEL offers a reliable and efficient lighting solution with high light quality and easy handling.
