3-phase spot SIGHT EVO DOUBLE square IP20, black, lacquered dimmable

Innovative LED 3-Phase Spotlight SIGHT EVO DOUBLE

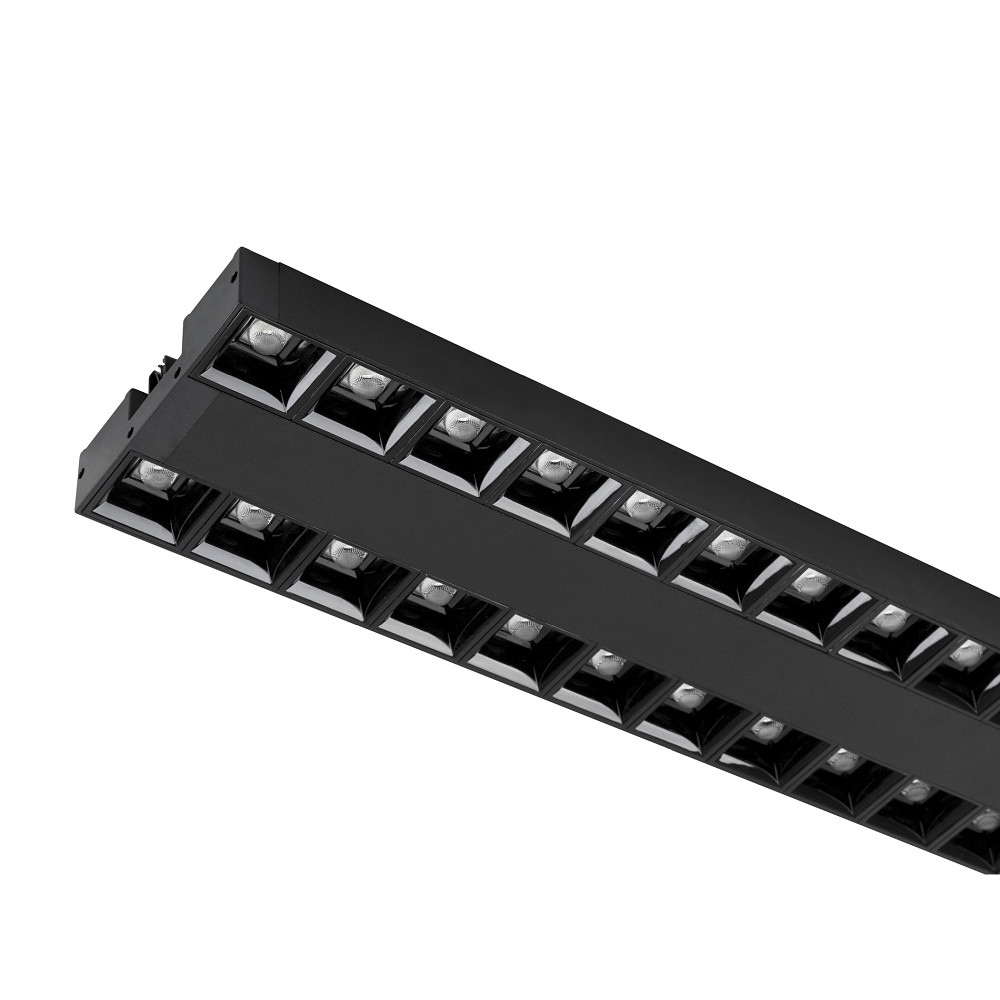

The LED 3-phase spotlight SIGHT EVO DOUBLE from SLV impresses with its modern technology and elegant design. With a length of 57.4 cm and a rectangular shape, this spotlight blends harmoniously into various lighting concepts. The integrated two light sources provide efficient illumination while consuming only 25 watts of energy. The product weighs just 1.01 kg, making it easy to install and handle.

Excellent Light Quality and Efficient Performance

The spotlight offers a light color of 4000 Kelvin, perceived as neutral white, ideal for clear and natural lighting. With a color rendering index of 90-100 Ra, colors are displayed particularly true to life. The luminous efficacy is an impressive 134 lumens per watt, guaranteeing high energy efficiency. The total luminous flux is a strong 3350 lumens, enabling bright and even illumination.

Flexible Dimming Function and Easy Control

Thanks to the stepless adjustable light output control, the brightness of the spotlight can be individually adapted. The dimming types DALI and DALI-2 allow modern and convenient control, which can be easily integrated into existing systems. The LED driver is current-controlled and included in the scope of delivery, so no additional components are required. The driver is non-replaceable, which simplifies handling and increases reliability.

Robust Construction and Practical Dimensions

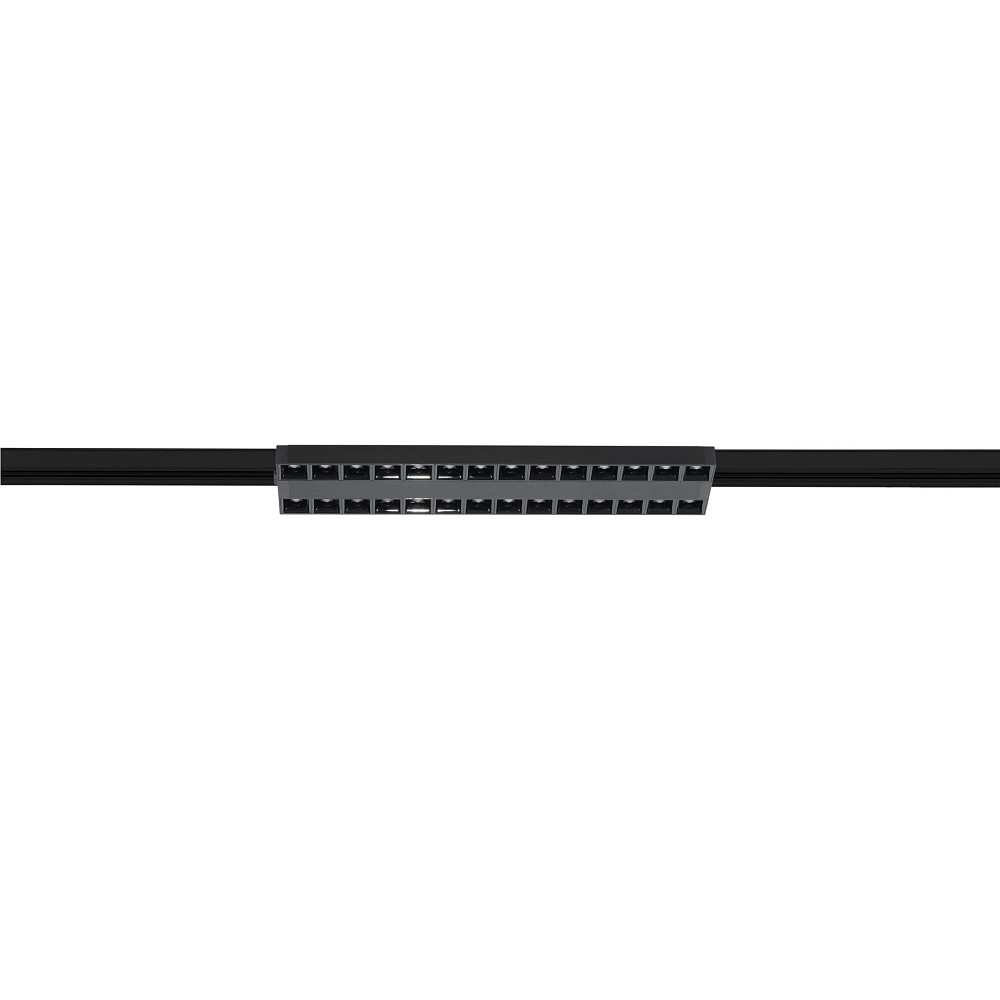

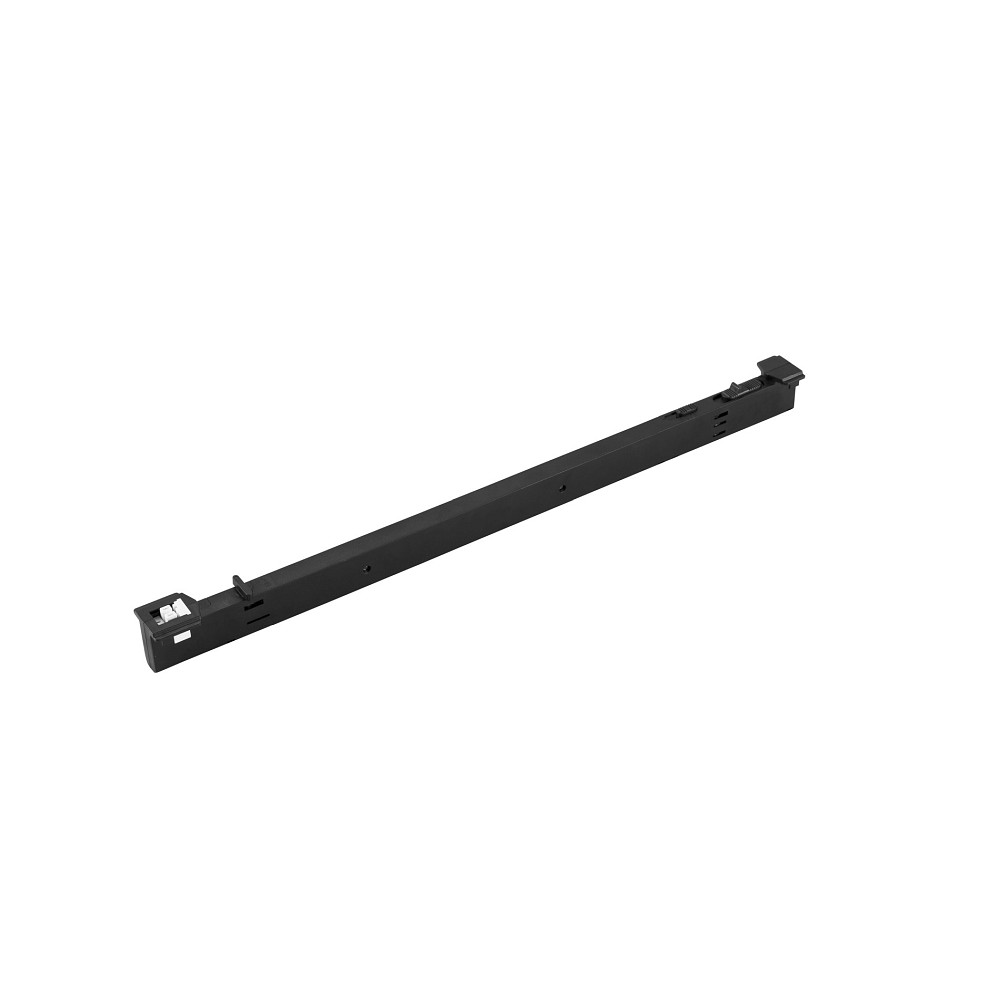

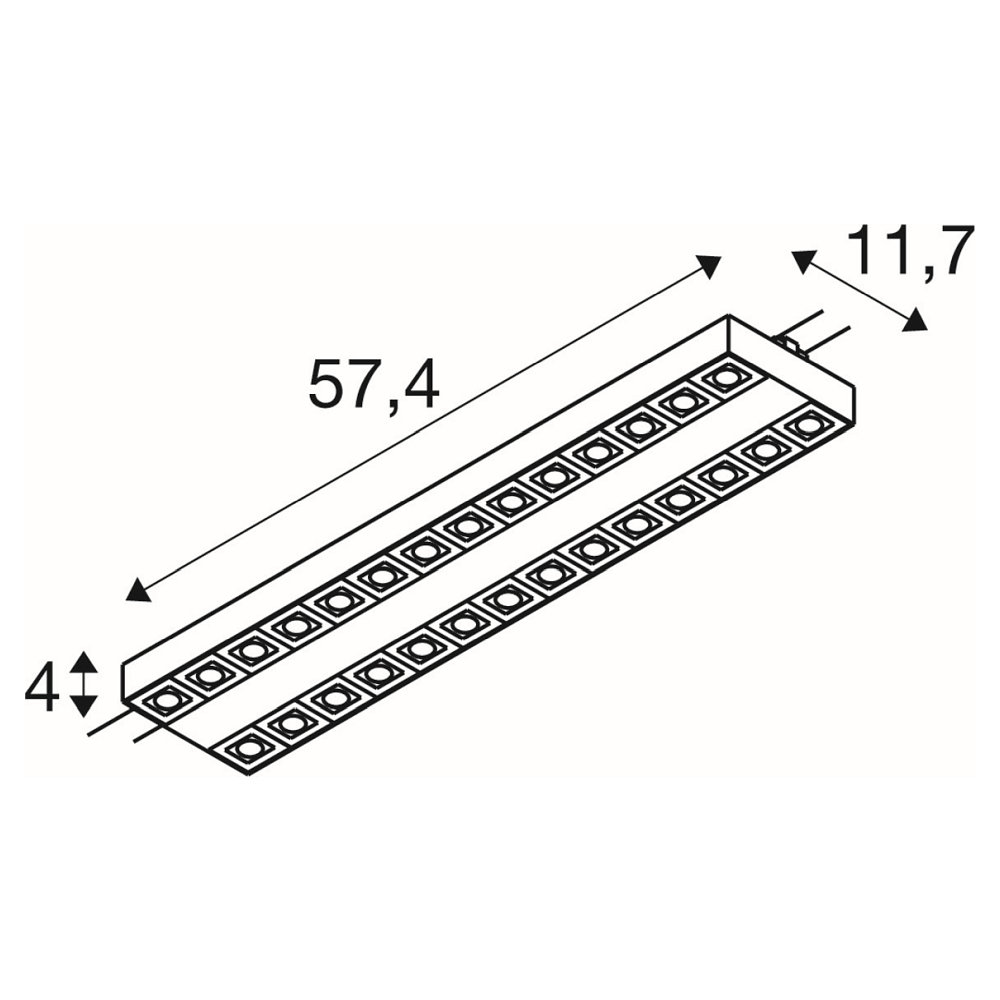

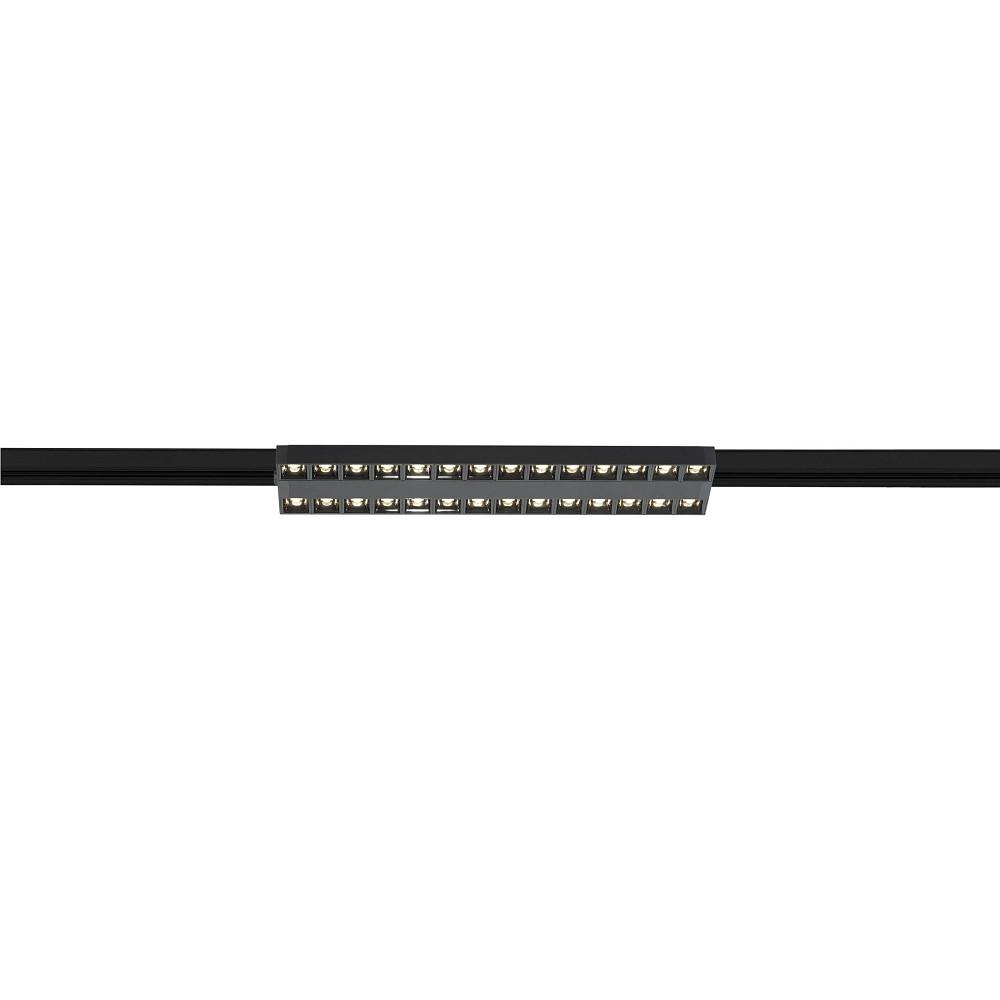

The SIGHT EVO DOUBLE spotlight is equipped with protection class 2 and has the IP protection rating IP20, ensuring safe operation. The dimensions of 57.4 cm length, 11.7 cm width, and 4 cm height make the device compact and space-saving. The spotlight features a power rail adapter for easy connection to 3-phase power rails, facilitating installation. The luminaire is not adjustable but offers a wide beam angle of 60° for broad light distribution.

Maximum Safety and Versatile Applications

The spotlight is designed for an operating voltage of 220 to 240 volts and can be connected to circuit breakers of various types. Up to 21 luminaires can be operated on a B16 breaker and up to 34 on a C16 breaker. This high capacity allows flexible planning and expansion of lighting systems. With its modern design, high light quality, and easy control, the LED 3-phase spotlight SIGHT EVO DOUBLE is an excellent choice for diverse lighting requirements.
