3-phase spot EOS 15W DALI cylindrical, DALI controllable, adjustable IP20, white matt dimmable

Ideal Lux



Are you a retailer or business customer (commercial/freelancer)? Secure special B2B prices now.

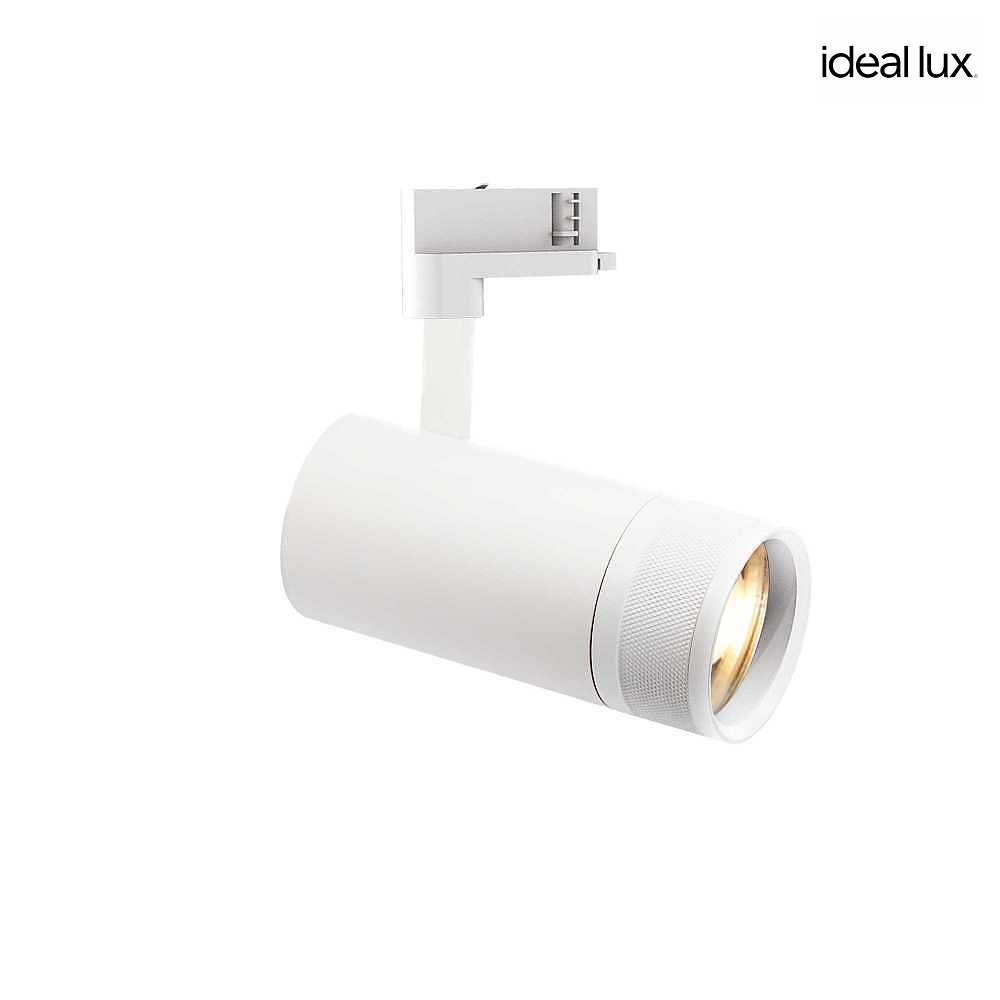

LED 3-phase track spotlight EOS 15W, focusable 20-55°, CRi >90, dimmable DALI

The LED 3-phase track spotlight EOS 15W is a versatile, cylindrical track spotlight for 3-phase high-voltage systems in professional indoor applications for object lighting. With an integrated focus ring, the beam angle can be adjusted from narrow 20° to medium-wide 55°. In addition, the spotlight offers very good color rendering with a CRi value of over 90Ra and a color rendering index of 1A.

Application: Ceiling

The LED 3-phase track spotlight EOS 15W is ideal for mounting on the ceiling. With a weight of only 0.66kg and compact dimensions, it is easy to install and seamlessly integrates into the room design. Thanks to the 3-phase technology, it is easy to adapt to various lighting scenarios.

Color: white

The housing of the track spotlight is made of powder-coated extruded aluminum and is available in white. This gives the spotlight a modern and timeless design that harmoniously fits into any room. The high-quality workmanship also ensures a long product lifespan.

Light output and energy efficiency

With a power consumption of 15W and a luminous flux of 1300lm, the EOS spotlight offers excellent light output with an energy consumption of only 15kWh/1,000 h. Thanks to energy efficiency class G and the ability to dim via DALI, the spotlight is also a good choice environmentally and economically.

Accessories and additional information

The LED 3-phase track spotlight EOS 15W comes with light bulbs, drivers, and a focus ring included. Additionally, a Universal 3-phase track adapter is included. With a large action radius of 355° rotatable and 90° tiltable, the spotlight offers maximum flexibility in light orientation. The EOS spotlights are available in black and white and can be delivered as switchable, analog dimmable, or digitally dimmable versions.

Colour:
white

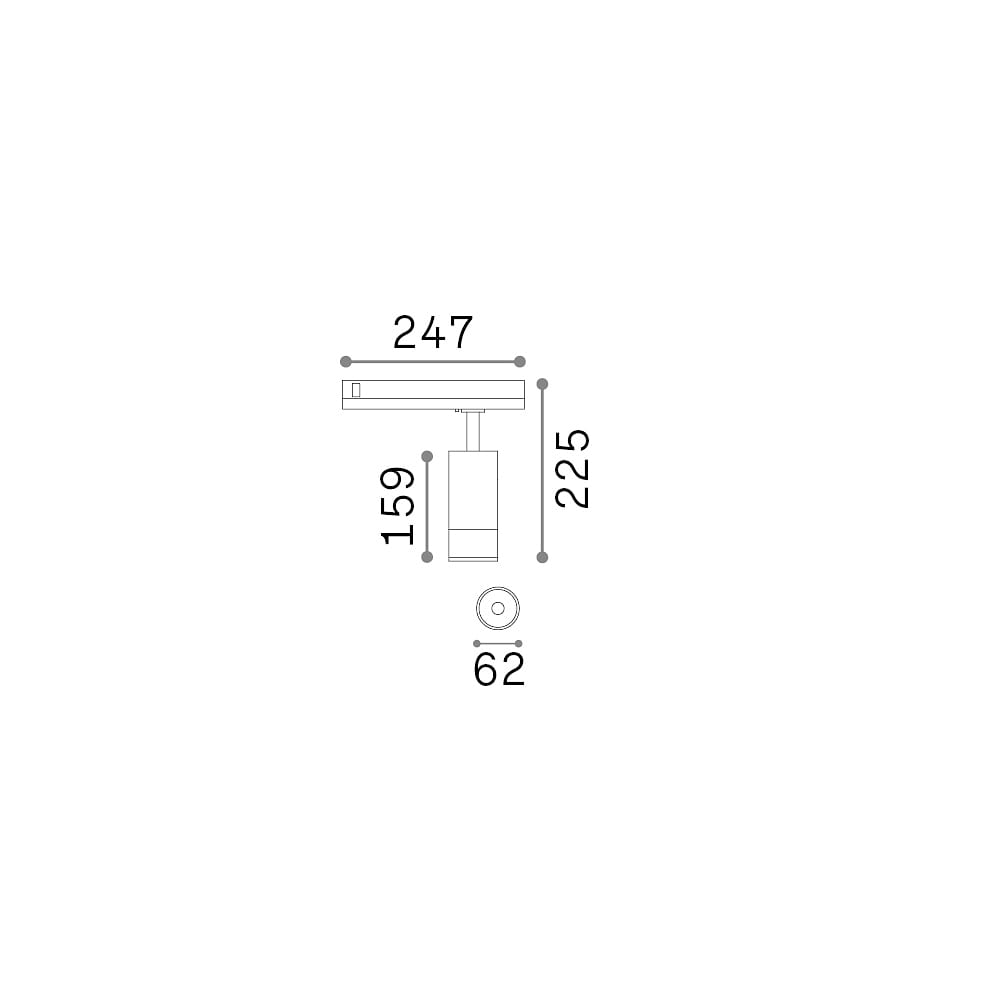

Dimension:
total-L∕ W∕ H: 24,72∕ 6,15∕ 22,5 cm
spot-Ø∕ H: 6,15∕ 15,9 cm
Material:
aluminium
polystyrene (PS)
Weight:
0,66 kg
Product type:
3-phase spot
Bulbs in delivery:
yes
Application area:
suitable for indoor use
Operating voltage:
220-240 V~
Dimmable:
yes
Dimmability:
DALI
Power frequency:
50 Hz
Power consumption:
15 W
Number of bulbs:
1
Voltage:
3-phase adapter
Beam direction:
swivelling
Light flux:
1300 lm
Colour temperature:
3000 K
Average life span of a bulb in hours:
50000 h
Colour rendering index:
> 90 Ra
1A
Admissible burning position:
253
Protection class:
2
IP-protection class:
IP20
Accessories:
3-phase adapter - included in delivery
driver - included in delivery
focus ring - included in delivery
3-phase track - not included in delivery
fixed-point adapter - not included in delivery
ambient temperature:
0 ... +40 °C
Energy efficiency category:
G
Energy consumption:
15 kWh/1.000 h
Article number:
IDEA-302997
Purchasing quantity:
1 piece
Brand:
Ideal Lux
Manufacturer:
Ideal Lux
Manufacturer information
Ideal Lux S.r.l., Via Taglio Destro, 32, 30035, Mirano, Italy, info@ideal-lux.com, http://www.ideal-lux.com
